Datasheet AD7327-EP (Analog Devices) - 6

ManufacturerAnalog Devices
Description500 kSPS, 8-Channel, Software Selectable True bipolar Input, 12-Bit Plus Sign A/D Converter
Pages / Page14 / 6 — AD7327-EP. Enhanced Product. Parameter1. Min. Typ. Max. Unit. Test …
RevisionC
File Format / SizePDF / 401 Kb
Document LanguageEnglish

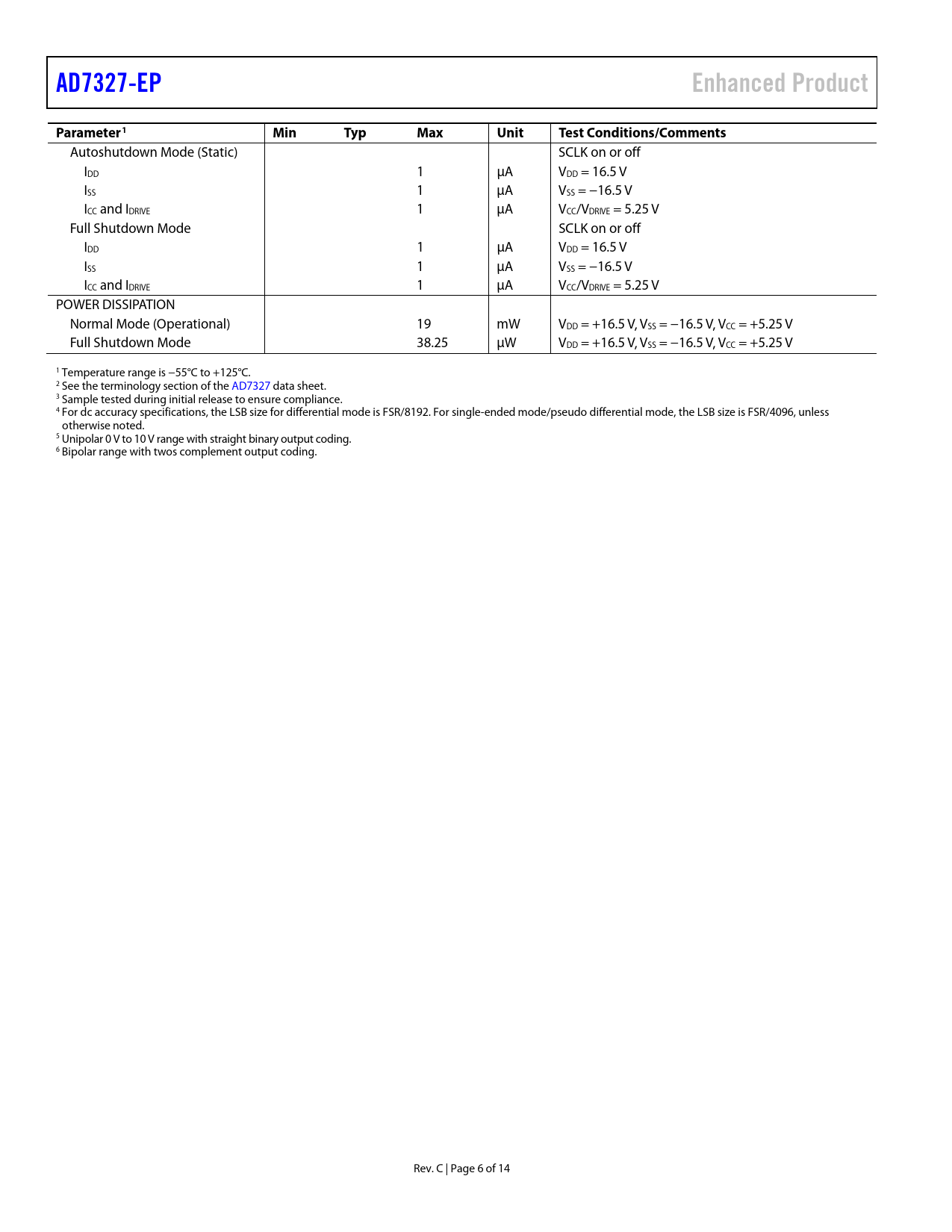

AD7327-EP. Enhanced Product. Parameter1. Min. Typ. Max. Unit. Test Conditions/Comments

AD7327-EP Enhanced Product Parameter1 Min Typ Max Unit Test Conditions/Comments

Model Line for this Datasheet

Text Version of Document

AD7327-EP Enhanced Product Parameter1 Min Typ Max Unit Test Conditions/Comments
Autoshutdown Mode (Static) SCLK on or off IDD 1 µA VDD = 16.5 V ISS 1 µA VSS = −16.5 V ICC and IDRIVE 1 µA VCC/VDRIVE = 5.25 V Full Shutdown Mode SCLK on or off IDD 1 µA VDD = 16.5 V ISS 1 µA VSS = −16.5 V ICC and IDRIVE 1 µA VCC/VDRIVE = 5.25 V POWER DISSIPATION Normal Mode (Operational) 19 mW VDD = +16.5 V, VSS = −16.5 V, VCC = +5.25 V Full Shutdown Mode 38.25 µW VDD = +16.5 V, VSS = −16.5 V, VCC = +5.25 V 1 Temperature range is −55°C to +125°C. 2 See the terminology section of the AD7327 data sheet. 3 Sample tested during initial release to ensure compliance. 4 For dc accuracy specifications, the LSB size for differential mode is FSR/8192. For single-ended mode/pseudo differential mode, the LSB size is FSR/4096, unless otherwise noted. 5 Unipolar 0 V to 10 V range with straight binary output coding. 6 Bipolar range with twos complement output coding. Rev. C | Page 6 of 14 Document Outline FEATURES ENHANCED PRODUCT FEATURES GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS TIMING SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS OUTLINE DIMENSIONS ORDERING GUIDE
