LTC1863/LTC1867

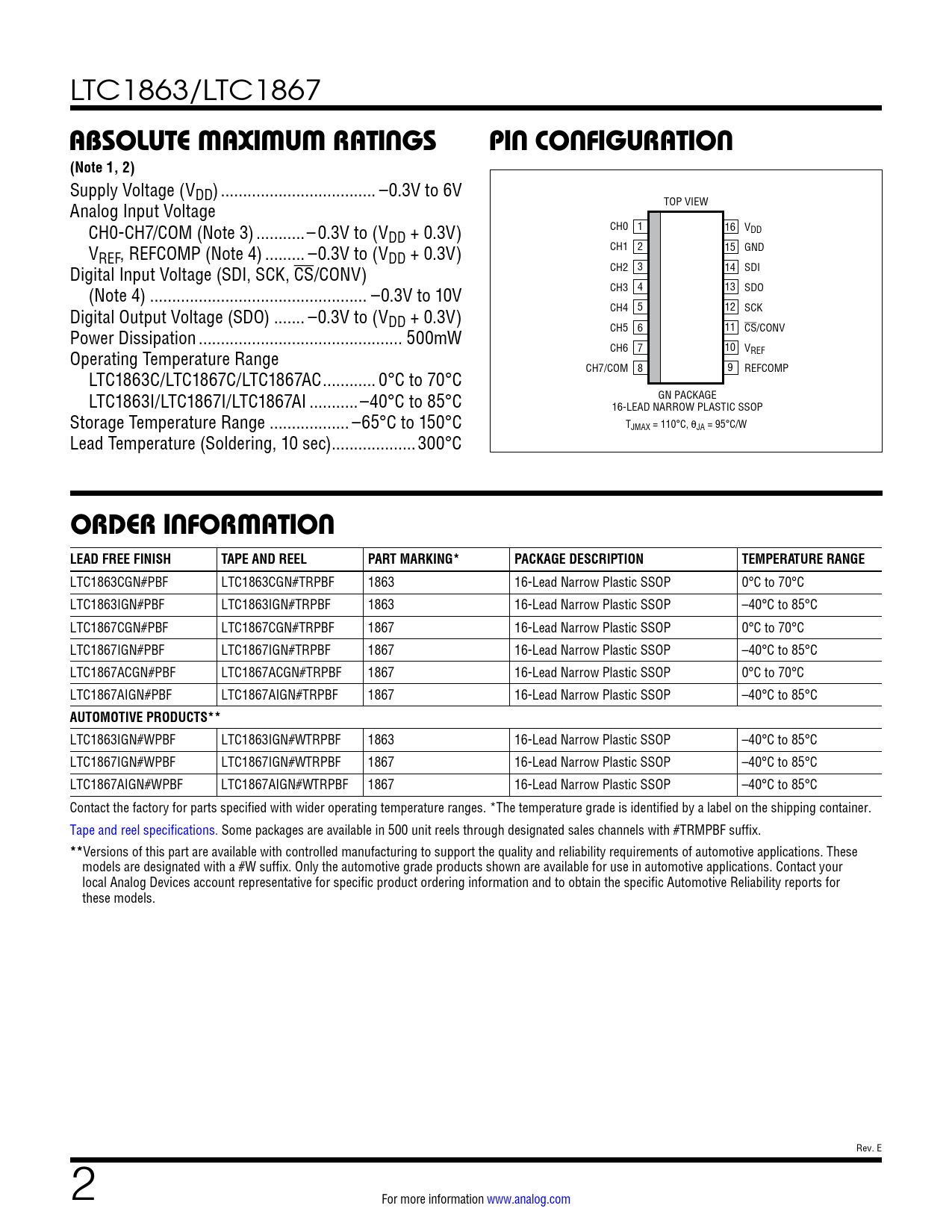

ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Note 1, 2)
Supply Voltage (VDD) ... –0.3V to 6V TOP VIEW Analog Input Voltage CH0 1 16 VDD CH0-CH7/COM (Note 3) ...–0.3V to (VDD + 0.3V) CH1 2 15 GND VREF, REFCOMP (Note 4) ... –0.3V to (VDD + 0.3V) CH2 3 14 SDI Digital Input Voltage (SDI, SCK, CS/CONV) CH3 4 13 SDO (Note 4) ... –0.3V to 10V CH4 5 12 SCK Digital Output Voltage (SDO) ... –0.3V to (VDD + 0.3V) CH5 6 11 CS/CONV Power Dissipation .. 500mW CH6 7 10 VREF Operating Temperature Range CH7/COM 8 9 REFCOMP LTC1863C/LTC1867C/LTC1867AC .. 0°C to 70°C GN PACKAGE LTC1863I/LTC1867I/LTC1867AI ...–40°C to 85°C 16-LEAD NARROW PLASTIC SSOP Storage Temperature Range .. –65°C to 150°C TJMAX = 110°C, θJA = 95°C/W Lead Temperature (Soldering, 10 sec) ...300°C
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC1863CGN#PBF LTC1863CGN#TRPBF 1863 16-Lead Narrow Plastic SSOP 0°C to 70°C LTC1863IGN#PBF LTC1863IGN#TRPBF 1863 16-Lead Narrow Plastic SSOP –40°C to 85°C LTC1867CGN#PBF LTC1867CGN#TRPBF 1867 16-Lead Narrow Plastic SSOP 0°C to 70°C LTC1867IGN#PBF LTC1867IGN#TRPBF 1867 16-Lead Narrow Plastic SSOP –40°C to 85°C LTC1867ACGN#PBF LTC1867ACGN#TRPBF 1867 16-Lead Narrow Plastic SSOP 0°C to 70°C LTC1867AIGN#PBF LTC1867AIGN#TRPBF 1867 16-Lead Narrow Plastic SSOP –40°C to 85°C
AUTOMOTIVE PRODUCTS**
LTC1863IGN#WPBF LTC1863IGN#WTRPBF 1863 16-Lead Narrow Plastic SSOP –40°C to 85°C LTC1867IGN#WPBF LTC1867IGN#WTRPBF 1867 16-Lead Narrow Plastic SSOP –40°C to 85°C LTC1867AIGN#WPBF LTC1867AIGN#WTRPBF 1867 16-Lead Narrow Plastic SSOP –40°C to 85°C Contact the factory for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. Tape and reel specifications. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix.
**
Versions of this part are available with controlled manufacturing to support the quality and reliability requirements of automotive applications. These models are designated with a #W suffix. Only the automotive grade products shown are available for use in automotive applications. Contact your local Analog Devices account representative for specific product ordering information and to obtain the specific Automotive Reliability reports for these models. Rev. E 2 For more information www.analog.com Document Outline Features Applications Block Diagram Description Absolute Maximum Ratings Order Information Pin Configuration Converter Characteristics Dynamic Accuracy Analog Input Internal Reference Characteristics Digital Inputs and Digital Outputs Power Requirements Timing Characteristics Typical Performance Characteristics Pin Functions Typical Connection Diagram Test Circuits Timing Diagrams Applications Information Package Description Revision History Related Parts
