Datasheet SQD50N06-07L (Vishay) - 5
| Manufacturer | Vishay |
| Description | Automotive N-Channel 60 V (D-S) 175 °C MOSFET |
| Pages / Page | 9 / 5 — SQD50N06-07L. THERMAL RATINGS. Safe Operating Area. Normalized Thermal … |
| File Format / Size | PDF / 161 Kb |
| Document Language | English |

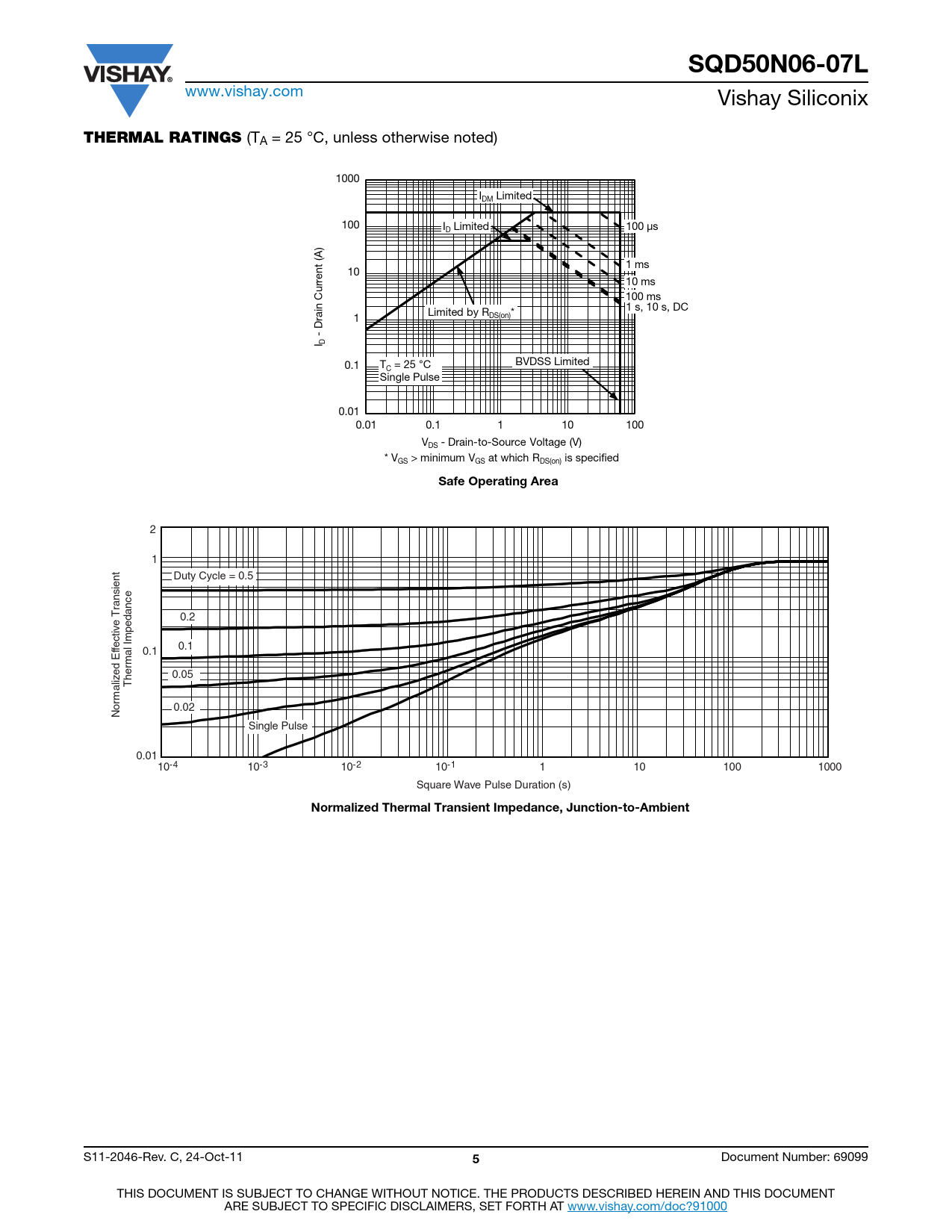

SQD50N06-07L. THERMAL RATINGS. Safe Operating Area. Normalized Thermal Transient Impedance, Junction-to-Ambient
Model Line for this Datasheet
Text Version of Document
SQD50N06-07L
www.vishay.com Vishay Siliconix
THERMAL RATINGS
(TA = 25 °C, unless otherwise noted) 1000 I Limited DM 100 I Limited 100 μs D ) (A 1 ms 10 rrent 10 ms u C 100 ms n 1 s, 10 s, DC Limited by R * rai 1 DS(on) D - I D 0.1 T = 25 °C BVDSS Limited C Single Pulse 0.01 0.01 0.1 1 10 100 V - Drain-to-Source Voltage (V) DS * V > minimum V at which R is specified GS GS DS(on)
Safe Operating Area
2 1 Duty Cycle = 0.5 ransient 0.2 e T fectiv 0.1 0.1 mal Impedance ed Ef 0.05 Ther maliz or 0.02 N Single Pulse 0.01 10-4 10-3 10-2 10-1 1 10 100 1000 Square Wave Pulse Duration (s)
Normalized Thermal Transient Impedance, Junction-to-Ambient
S11-2046-Rev. C, 24-Oct-11
5
