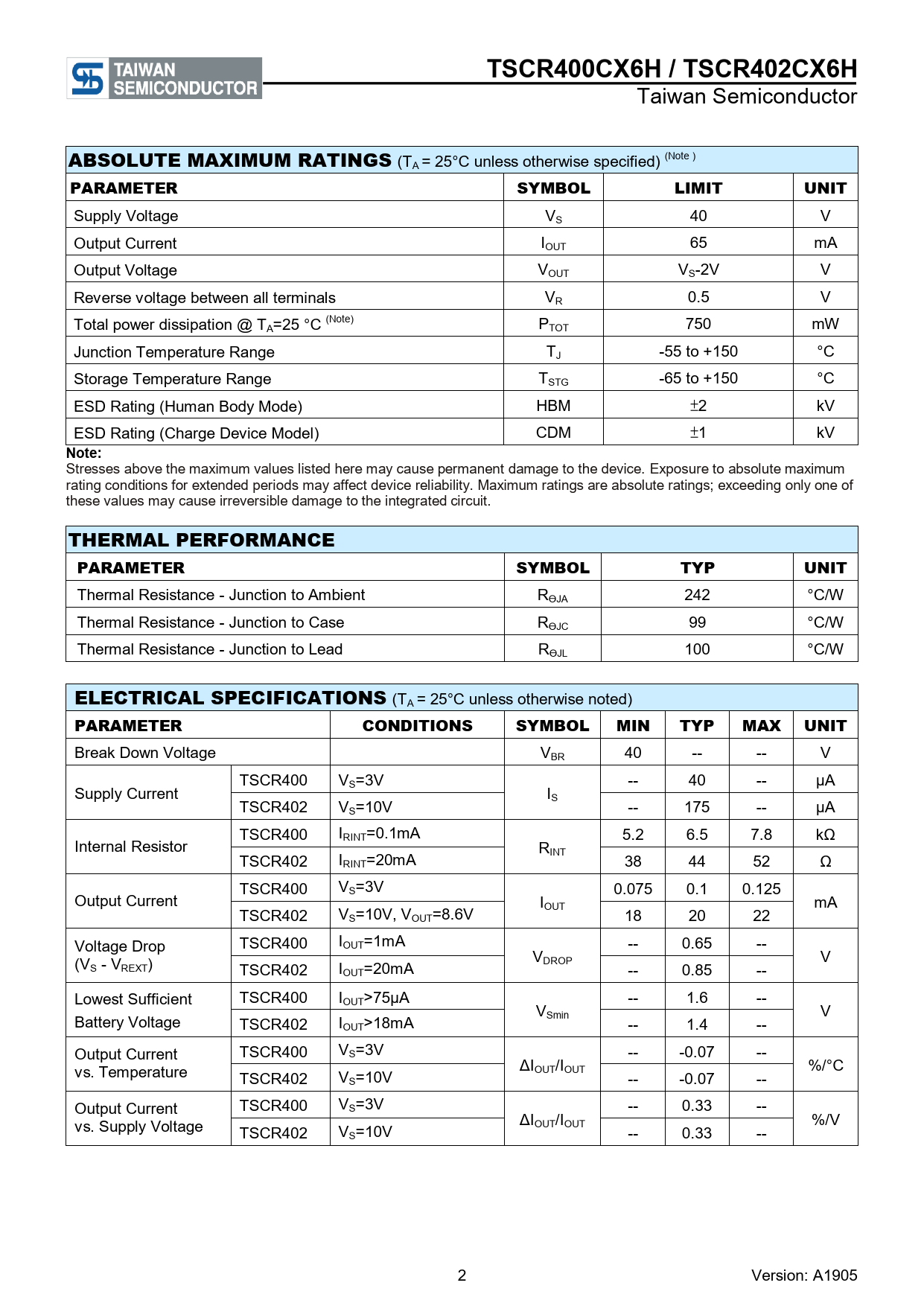

TSCR400CX6H / TSCR402CX6H
Taiwan Semiconductor
ABSOLUTE MAXIMUM RATINGS
(TA = 25°C unless otherwise specified) (Note )
PARAMETER SYMBOL LIMIT UNIT
Supply Voltage VS 40 V Output Current IOUT 65 mA Output Voltage VOUT VS-2V V Reverse voltage between al terminals VR 0.5 V Total power dissipation @ TA=25 °C (Note) PTOT 750 mW Junction Temperature Range TJ -55 to +150 °C Storage Temperature Range TSTG -65 to +150 °C ESD Rating (Human Body Mode) HBM ±2 kV ESD Rating (Charge Device Model) CDM ±1 kV
Note:
Stresses above the maximum values listed here may cause permanent damage to the device. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Maximum ratings are absolute ratings; exceeding only one of these values may cause irreversible damage to the integrated circuit.
THERMAL PERFORMANCE PARAMETER SYMBOL TYP UNIT
Thermal Resistance - Junction to Ambient RӨJA 242 °C/W Thermal Resistance - Junction to Case RӨJC 99 °C/W Thermal Resistance - Junction to Lead RӨJL 100 °C/W
ELECTRICAL SPECIFICATIONS
(TA = 25°C unless otherwise noted)
PARAMETER CONDITIONS SYMBOL MIN TYP MAX UNIT
Break Down Voltage VBR 40 -- -- V TSCR400 VS=3V -- 40 -- µA Supply Current IS TSCR402 VS=10V -- 175 -- µA TSCR400 IRINT=0.1mA 5.2 6.5 7.8 kΩ Internal Resistor RINT TSCR402 IRINT=20mA 38 44 52 Ω TSCR400 VS=3V 0.075 0.1 0.125 Output Current IOUT mA TSCR402 VS=10V, VOUT=8.6V 18 20 22 Voltage Drop TSCR400 IOUT=1mA -- 0.65 -- (V VDROP V S - VREXT) TSCR402 IOUT=20mA -- 0.85 -- Lowest Sufficient TSCR400 IOUT>75µA -- 1.6 -- V V Battery Voltage Smin TSCR402 IOUT>18mA -- 1.4 -- Output Current TSCR400 VS=3V -- -0.07 -- vs. Temperature ΔIOUT/IOUT %/°C TSCR402 VS=10V -- -0.07 -- Output Current TSCR400 VS=3V -- 0.33 -- vs. Supply Voltage ΔIOUT/IOUT %/V TSCR402 VS=10V -- 0.33 -- 2 Version: A1905
