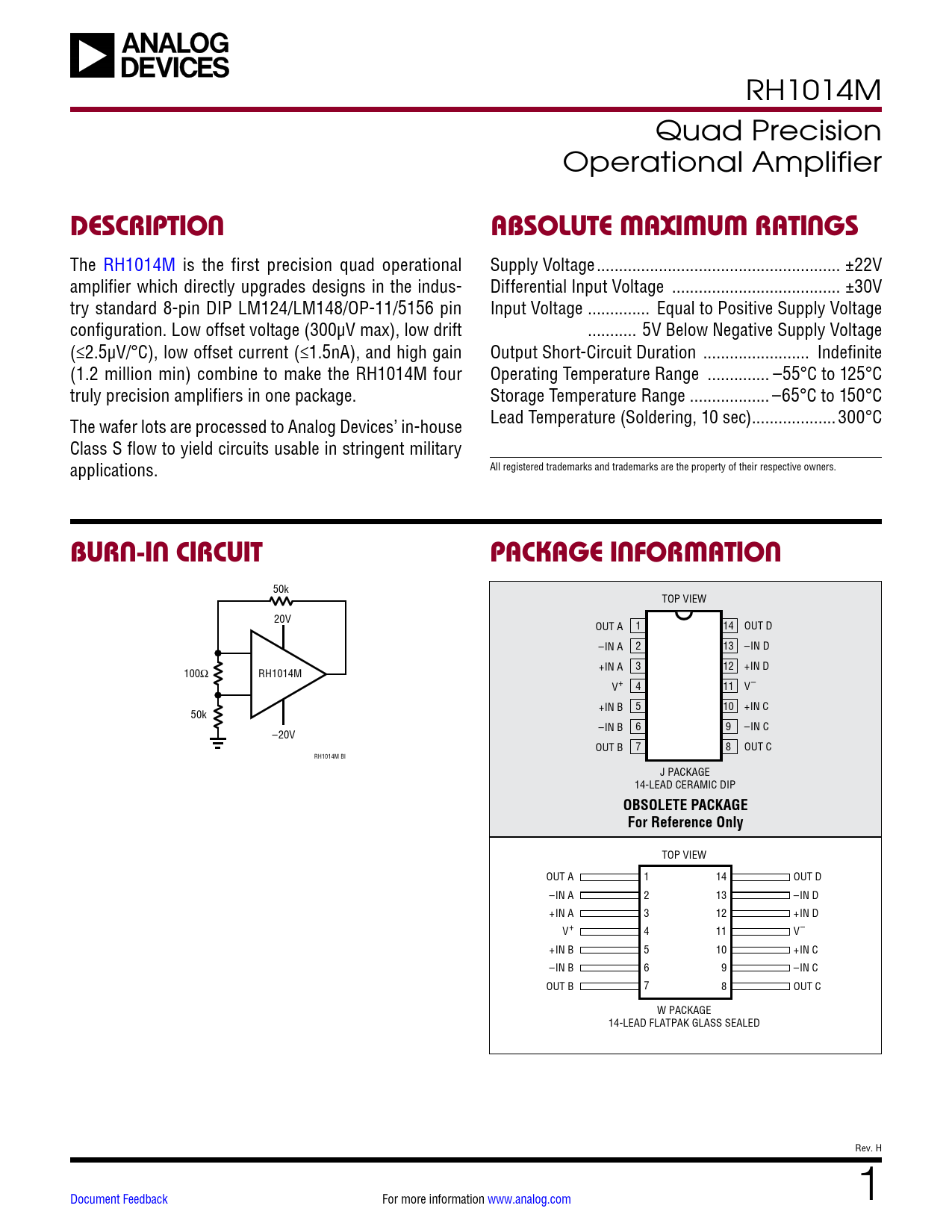

RH1014M Quad Precision Operational Amplifier
DESCRIPTION ABSOLUTE MAXIMUM RATINGS
The RH1014M is the first precision quad operational Supply Voltage ... ±22V amplifier which directly upgrades designs in the indus- Differential Input Voltage .. ±30V try standard 8-pin DIP LM124/LM148/OP-11/5156 pin Input Voltage .. Equal to Positive Supply Voltage configuration. Low offset voltage (300µV max), low drift ... 5V Below Negative Supply Voltage (≤2.5µV/°C), low offset current (≤1.5nA), and high gain Output Short-Circuit Duration .. Indefinite (1.2 million min) combine to make the RH1014M four Operating Temperature Range .. –55°C to 125°C truly precision amplifiers in one package. Storage Temperature Range .. –65°C to 150°C The wafer lots are processed to Analog Devices’ in-house Lead Temperature (Soldering, 10 sec) ...300°C Class S flow to yield circuits usable in stringent military applications. All registered trademarks and trademarks are the property of their respective owners.
BURN-IN CIRCUIT PACKAGE INFORMATION
50k TOP VIEW 20V OUT A 1 14 OUT D –IN A 2 13 –IN D +IN A 3 12 +IN D 100Ω RH1014M V+ 4 11 V– +IN B 5 10 +IN C 50k –IN B 6 9 –IN C –20V OUT B 7 8 OUT C RH1014M BI J PACKAGE 14-LEAD CERAMIC DIP
OBSOLETE PACKAGE For Reference Only
TOP VIEW OUT A 1 14 OUT D –IN A 2 13 –IN D +IN A 3 12 +IN D V+ 4 11 V– +IN B 5 10 +IN C –IN B 6 9 –IN C OUT B 7 8 OUT C W PACKAGE 14-LEAD FLATPAK GLASS SEALED Rev. H Document Feedback For more information www.analog.com 1 Document Outline Description Burn-In Circuit Absolute Maximum Ratings Package Information Table 1: Electrical characteristics Table 1a: Electrical characteristics Table 2: Electrical Test Requirements Total Dose Bias Circuit Typical Performance Characteristics Revision History
