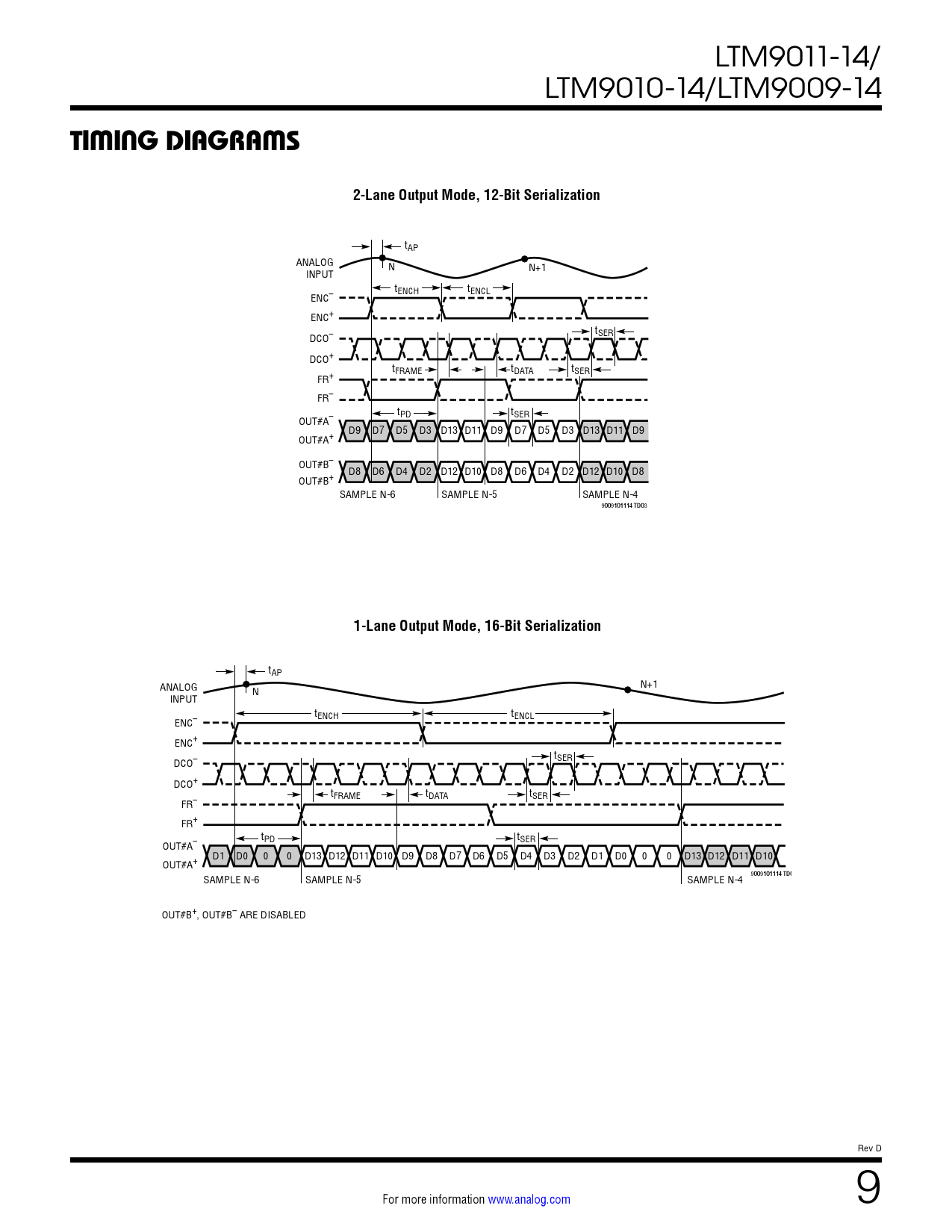

LTM9011-14/ LTM9010-14/LTM9009-14 TIMING DIAGRAMS
2-Lane Output Mode, 12-Bit Serialization
tAP ANALOG N N+1 INPUT tENCH tENCL ENC– ENC+ t DCO– SER DCO+ tFRAME tDATA tSER FR+ FR– tPD tSER OUT#A– D9 D7 D5 D3 D13 D11 D9 D7 D5 D3 D13 D11 D9 OUT#A+ OUT#B– D8 D6 D4 D2 D12 D10 D8 D6 D4 D2 D12 D10 D8 OUT#B+ SAMPLE N-6 SAMPLE N-5 SAMPLE N-4 9009101114 TD03
1-Lane Output Mode, 16-Bit Serialization
tAP ANALOG N+1 N INPUT tENCH tENCL ENC– ENC+ t DCO– SER DCO+ tFRAME tDATA tSER FR– FR+ tPD tSER OUT#A– D1 D0 0 0 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0 0 0 D13 D12 D11 D10 OUT#A+ SAMPLE N-6 SAMPLE N-5 SAMPLE N-4 9009101114 TD04 OUT#B+, OUT#B– ARE DISABLED Rev D For more information www.analog.com 9 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Converter Characteristics Analog Input Dynamic Accuracy Internal Reference Characteristics Digital Inputs And Outputs Power Requirements Timing Characteristics Timing Diagrams Typical Performance Characteristics Pin Functions Pin Configuration Table Functional Block Diagram Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
