| Manufacturer | Analog Devices |
| Description | 16-Bit, 200 MSPS/250 MSPS Analog-to-Digital Converter |
| Pages / Page | 15 / 4 — AD9467-EP. Enhanced Product. AC SPECIFICATIONS. Table 2. Parameter1. Temp … |
| File Format / Size | PDF / 612 Kb |
| Document Language | English |
AD9467-EP. Enhanced Product. AC SPECIFICATIONS. Table 2. Parameter1. Temp Min. Typ. Max. Unit
Model Line for this Datasheet
Text Version of Document
link to page 5

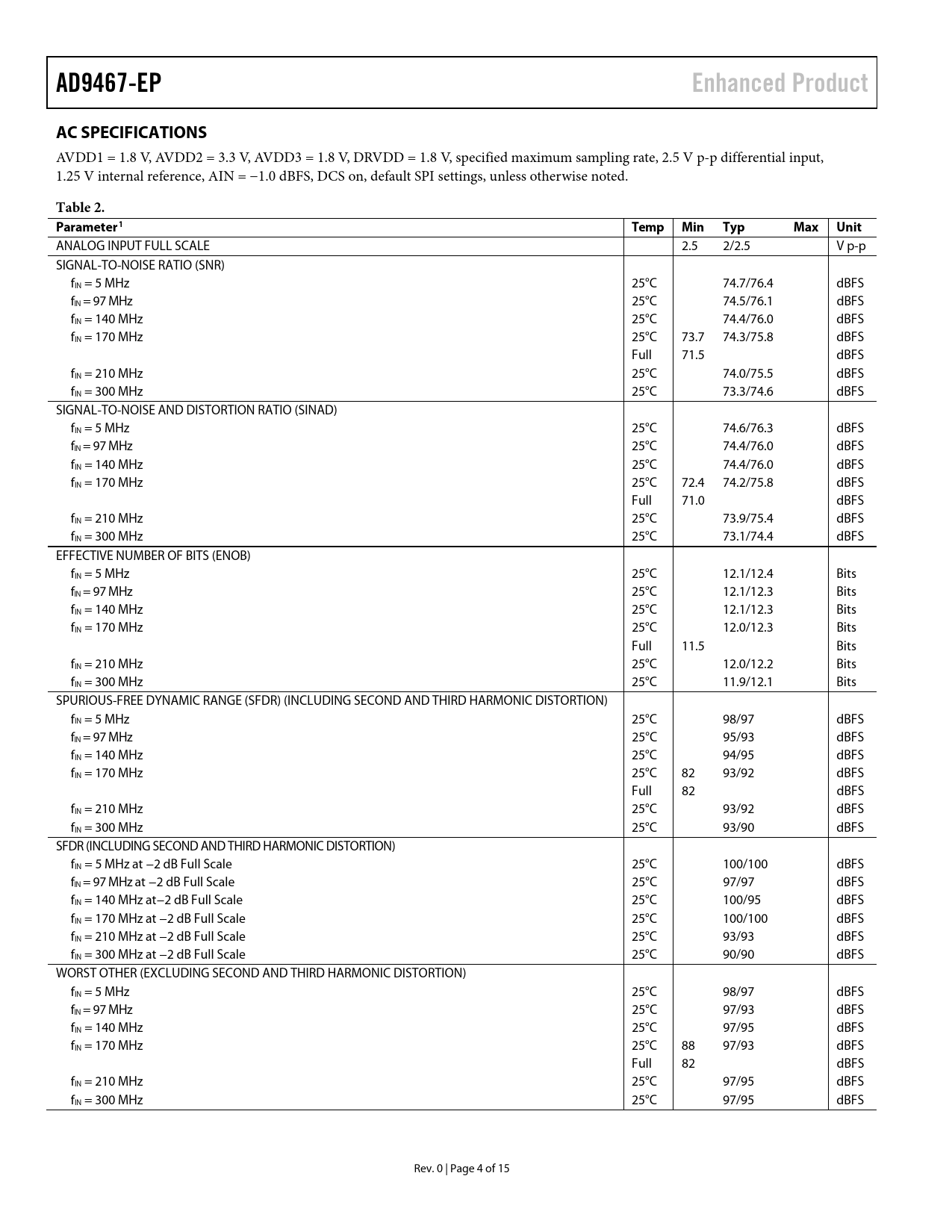

AD9467-EP Enhanced Product AC SPECIFICATIONS
AVDD1 = 1.8 V, AVDD2 = 3.3 V, AVDD3 = 1.8 V, DRVDD = 1.8 V, specified maximum sampling rate, 2.5 V p-p differential input, 1.25 V internal reference, AIN = −1.0 dBFS, DCS on, default SPI settings, unless otherwise noted.
Table 2. Parameter1 Temp Min Typ Max Unit
ANALOG INPUT FULL SCALE 2.5 2/2.5 V p-p SIGNAL-TO-NOISE RATIO (SNR) fIN = 5 MHz 25°C 74.7/76.4 dBFS fIN = 97 MHz 25°C 74.5/76.1 dBFS fIN = 140 MHz 25°C 74.4/76.0 dBFS fIN = 170 MHz 25°C 73.7 74.3/75.8 dBFS Full 71.5 dBFS fIN = 210 MHz 25°C 74.0/75.5 dBFS fIN = 300 MHz 25°C 73.3/74.6 dBFS SIGNAL-TO-NOISE AND DISTORTION RATIO (SINAD) fIN = 5 MHz 25°C 74.6/76.3 dBFS fIN = 97 MHz 25°C 74.4/76.0 dBFS fIN = 140 MHz 25°C 74.4/76.0 dBFS fIN = 170 MHz 25°C 72.4 74.2/75.8 dBFS Full 71.0 dBFS fIN = 210 MHz 25°C 73.9/75.4 dBFS fIN = 300 MHz 25°C 73.1/74.4 dBFS EFFECTIVE NUMBER OF BITS (ENOB) fIN = 5 MHz 25°C 12.1/12.4 Bits fIN = 97 MHz 25°C 12.1/12.3 Bits fIN = 140 MHz 25°C 12.1/12.3 Bits fIN = 170 MHz 25°C 12.0/12.3 Bits Full 11.5 Bits fIN = 210 MHz 25°C 12.0/12.2 Bits fIN = 300 MHz 25°C 11.9/12.1 Bits SPURIOUS-FREE DYNAMIC RANGE (SFDR) (INCLUDING SECOND AND THIRD HARMONIC DISTORTION) fIN = 5 MHz 25°C 98/97 dBFS fIN = 97 MHz 25°C 95/93 dBFS fIN = 140 MHz 25°C 94/95 dBFS fIN = 170 MHz 25°C 82 93/92 dBFS Full 82 dBFS fIN = 210 MHz 25°C 93/92 dBFS fIN = 300 MHz 25°C 93/90 dBFS SFDR (INCLUDING SECOND AND THIRD HARMONIC DISTORTION) fIN = 5 MHz at −2 dB Full Scale 25°C 100/100 dBFS fIN = 97 MHz at −2 dB Full Scale 25°C 97/97 dBFS fIN = 140 MHz at−2 dB Full Scale 25°C 100/95 dBFS fIN = 170 MHz at −2 dB Full Scale 25°C 100/100 dBFS fIN = 210 MHz at −2 dB Full Scale 25°C 93/93 dBFS fIN = 300 MHz at −2 dB Full Scale 25°C 90/90 dBFS WORST OTHER (EXCLUDING SECOND AND THIRD HARMONIC DISTORTION) fIN = 5 MHz 25°C 98/97 dBFS fIN = 97 MHz 25°C 97/93 dBFS fIN = 140 MHz 25°C 97/95 dBFS fIN = 170 MHz 25°C 88 97/93 dBFS Full 82 dBFS fIN = 210 MHz 25°C 97/95 dBFS fIN = 300 MHz 25°C 97/95 dBFS Rev. 0 | Page 4 of 15 Document Outline FEATURES ENHANCED PRODUCT FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM PRODUCT HIGHLIGHTS REVISION HISTORY SPECIFICATIONS AC SPECIFICATIONS DIGITAL SPECIFICATIONS SWITCHING SPECIFICATIONS Timing Diagrams ABSOLUTE MAXIMUM RATINGS THERMAL IMPEDANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS OUTLINE DIMENSIONS ORDERING GUIDE
AD9467-EP Enhanced Product AC SPECIFICATIONS
AVDD1 = 1.8 V, AVDD2 = 3.3 V, AVDD3 = 1.8 V, DRVDD = 1.8 V, specified maximum sampling rate, 2.5 V p-p differential input, 1.25 V internal reference, AIN = −1.0 dBFS, DCS on, default SPI settings, unless otherwise noted.
Table 2. Parameter1 Temp Min Typ Max Unit
ANALOG INPUT FULL SCALE 2.5 2/2.5 V p-p SIGNAL-TO-NOISE RATIO (SNR) fIN = 5 MHz 25°C 74.7/76.4 dBFS fIN = 97 MHz 25°C 74.5/76.1 dBFS fIN = 140 MHz 25°C 74.4/76.0 dBFS fIN = 170 MHz 25°C 73.7 74.3/75.8 dBFS Full 71.5 dBFS fIN = 210 MHz 25°C 74.0/75.5 dBFS fIN = 300 MHz 25°C 73.3/74.6 dBFS SIGNAL-TO-NOISE AND DISTORTION RATIO (SINAD) fIN = 5 MHz 25°C 74.6/76.3 dBFS fIN = 97 MHz 25°C 74.4/76.0 dBFS fIN = 140 MHz 25°C 74.4/76.0 dBFS fIN = 170 MHz 25°C 72.4 74.2/75.8 dBFS Full 71.0 dBFS fIN = 210 MHz 25°C 73.9/75.4 dBFS fIN = 300 MHz 25°C 73.1/74.4 dBFS EFFECTIVE NUMBER OF BITS (ENOB) fIN = 5 MHz 25°C 12.1/12.4 Bits fIN = 97 MHz 25°C 12.1/12.3 Bits fIN = 140 MHz 25°C 12.1/12.3 Bits fIN = 170 MHz 25°C 12.0/12.3 Bits Full 11.5 Bits fIN = 210 MHz 25°C 12.0/12.2 Bits fIN = 300 MHz 25°C 11.9/12.1 Bits SPURIOUS-FREE DYNAMIC RANGE (SFDR) (INCLUDING SECOND AND THIRD HARMONIC DISTORTION) fIN = 5 MHz 25°C 98/97 dBFS fIN = 97 MHz 25°C 95/93 dBFS fIN = 140 MHz 25°C 94/95 dBFS fIN = 170 MHz 25°C 82 93/92 dBFS Full 82 dBFS fIN = 210 MHz 25°C 93/92 dBFS fIN = 300 MHz 25°C 93/90 dBFS SFDR (INCLUDING SECOND AND THIRD HARMONIC DISTORTION) fIN = 5 MHz at −2 dB Full Scale 25°C 100/100 dBFS fIN = 97 MHz at −2 dB Full Scale 25°C 97/97 dBFS fIN = 140 MHz at−2 dB Full Scale 25°C 100/95 dBFS fIN = 170 MHz at −2 dB Full Scale 25°C 100/100 dBFS fIN = 210 MHz at −2 dB Full Scale 25°C 93/93 dBFS fIN = 300 MHz at −2 dB Full Scale 25°C 90/90 dBFS WORST OTHER (EXCLUDING SECOND AND THIRD HARMONIC DISTORTION) fIN = 5 MHz 25°C 98/97 dBFS fIN = 97 MHz 25°C 97/93 dBFS fIN = 140 MHz 25°C 97/95 dBFS fIN = 170 MHz 25°C 88 97/93 dBFS Full 82 dBFS fIN = 210 MHz 25°C 97/95 dBFS fIN = 300 MHz 25°C 97/95 dBFS Rev. 0 | Page 4 of 15 Document Outline FEATURES ENHANCED PRODUCT FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM PRODUCT HIGHLIGHTS REVISION HISTORY SPECIFICATIONS AC SPECIFICATIONS DIGITAL SPECIFICATIONS SWITCHING SPECIFICATIONS Timing Diagrams ABSOLUTE MAXIMUM RATINGS THERMAL IMPEDANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS OUTLINE DIMENSIONS ORDERING GUIDE
