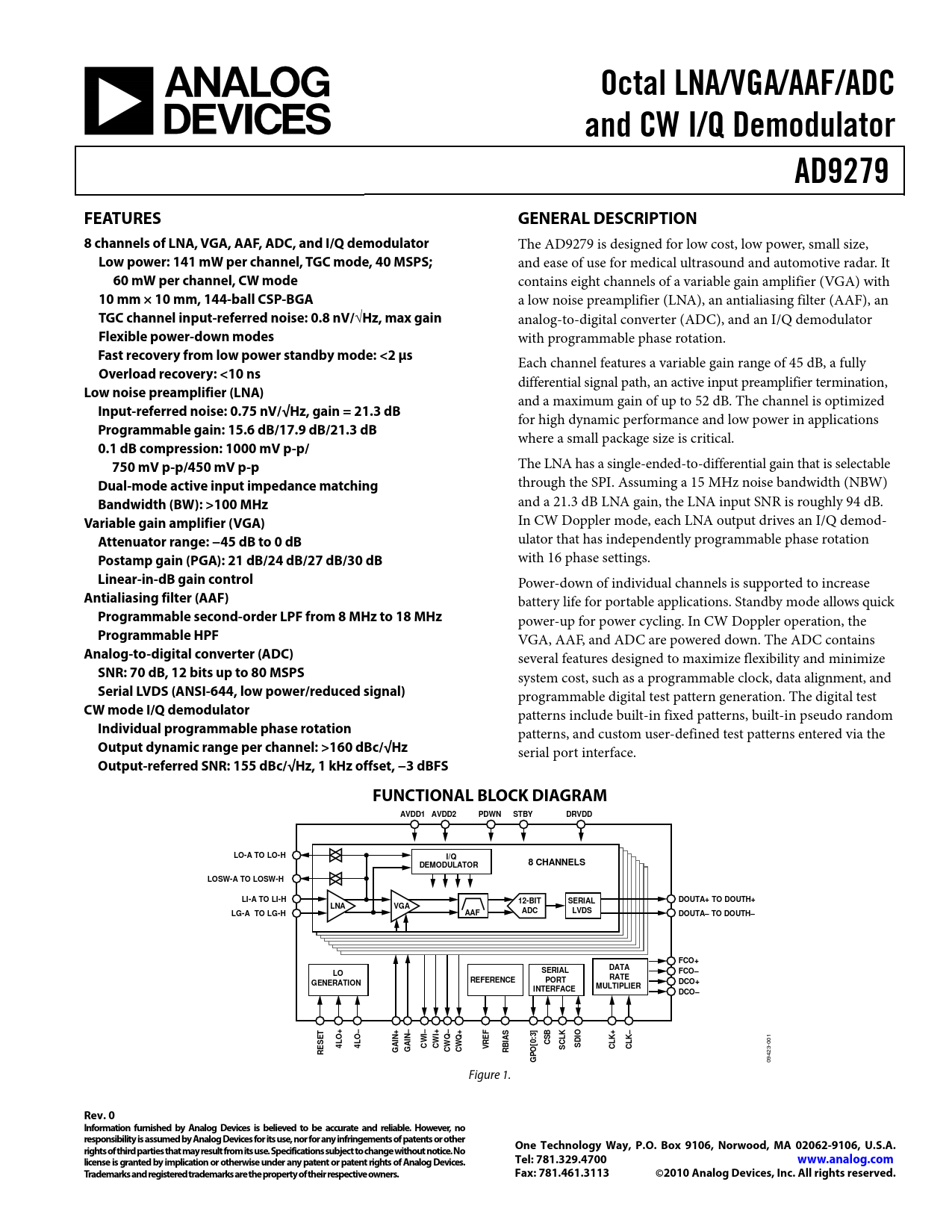

Octal LNA/VGA/AAF/ADC and CW I/Q Demodulator AD9279 FEATURES GENERAL DESCRIPTION 8 channels of LNA, VGA, AAF, ADC, and I/Q demodulator
The AD9279 is designed for low cost, low power, small size,
Low power: 141 mW per channel, TGC mode, 40 MSPS;
and ease of use for medical ultrasound and automotive radar. It
60 mW per channel, CW mode
contains eight channels of a variable gain amplifier (VGA) with
10 mm × 10 mm, 144-ball CSP-BGA
a low noise preamplifier (LNA), an antialiasing filter (AAF), an
TGC channel input-referred noise: 0.8 nV/√Hz, max gain
analog-to-digital converter (ADC), and an I/Q demodulator
Flexible power-down modes
with programmable phase rotation.
Fast recovery from low power standby mode: <2 μs
Each channel features a variable gain range of 45 dB, a fully
Overload recovery: <10 ns
differential signal path, an active input preamplifier termination,
Low noise preamplifier (LNA)
and a maximum gain of up to 52 dB. The channel is optimized
Input-referred noise: 0.75 nV/√Hz, gain = 21.3 dB
for high dynamic performance and low power in applications
Programmable gain: 15.6 dB/17.9 dB/21.3 dB
where a small package size is critical.
0.1 dB compression: 1000 mV p-p/ 750 mV p-p/450 mV p-p
The LNA has a single-ended-to-differential gain that is selectable
Dual-mode active input impedance matching
through the SPI. Assuming a 15 MHz noise bandwidth (NBW)
Bandwidth (BW): >100 MHz
and a 21.3 dB LNA gain, the LNA input SNR is roughly 94 dB.
Variable gain amplifier (VGA)
In CW Doppler mode, each LNA output drives an I/Q demod-
Attenuator range: −45 dB to 0 dB
ulator that has independently programmable phase rotation
Postamp gain (PGA): 21 dB/24 dB/27 dB/30 dB
with 16 phase settings.
Linear-in-dB gain control
Power-down of individual channels is supported to increase
Antialiasing filter (AAF)
battery life for portable applications. Standby mode allows quick
Programmable second-order LPF from 8 MHz to 18 MHz
power-up for power cycling. In CW Doppler operation, the
Programmable HPF
VGA, AAF, and ADC are powered down. The ADC contains
Analog-to-digital converter (ADC)
several features designed to maximize flexibility and minimize
SNR: 70 dB, 12 bits up to 80 MSPS
system cost, such as a programmable clock, data alignment, and
Serial LVDS (ANSI-644, low power/reduced signal)
programmable digital test pattern generation. The digital test
CW mode I/Q demodulator
patterns include built-in fixed patterns, built-in pseudo random
Individual programmable phase rotation
patterns, and custom user-defined test patterns entered via the
Output dynamic range per channel: >160 dBc/√Hz
serial port interface.
Output-referred SNR: 155 dBc/√Hz, 1 kHz offset, −3 dBFS FUNCTIONAL BLOCK DIAGRAM AVDD1 AVDD2 PDWN STBY DRVDD LO-A TO LO-H I/Q DEMODULATOR 8 CHANNELS LOSW-A TO LOSW-H LI-A TO LI-H 12-BIT SERIAL DOUTA+ TO DOUTH+ LNA VGA LG-A TO LG-H AAF ADC LVDS DOUTA– TO DOUTH– FCO+ SERIAL DATA LO FCO– REFERENCE PORT RATE GENERATION DCO+ INTERFACE MULTIPLIER DCO– T + – + – – ] + I– I+ B K IO E O O Q Q EF :3 L K– IN IN
01
IAS S CS
0
4L 4L CW CW SD VR SC CLK+ CL GA GA CW CW RB O[0
23-
RE GP
094 Figure 1.
Rev. 0 Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. rights of third parties that may result from its use. Specifications subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 www.analog.com Trademarks and registered trademarks are the property of their respective owners. Fax: 781.461.3113 ©2010 Analog Devices, Inc. All rights reserved.
