Datasheet ADW12001 (Analog Devices) - 6
| Manufacturer | Analog Devices |
| Description | Dual 14-Bit, 20/40/65 MSPS, 3 V Analog-to-Digital Converter |
| Pages / Page | 24 / 6 — ADW12001. DIGITAL SPECIFICATIONS. Table 3. 25°C/115°C. Parameter. Temp. … |
| File Format / Size | PDF / 678 Kb |
| Document Language | English |
ADW12001. DIGITAL SPECIFICATIONS. Table 3. 25°C/115°C. Parameter. Temp. Min. Typ. Max. Unit
Model Line for this Datasheet
Text Version of Document
link to page 6

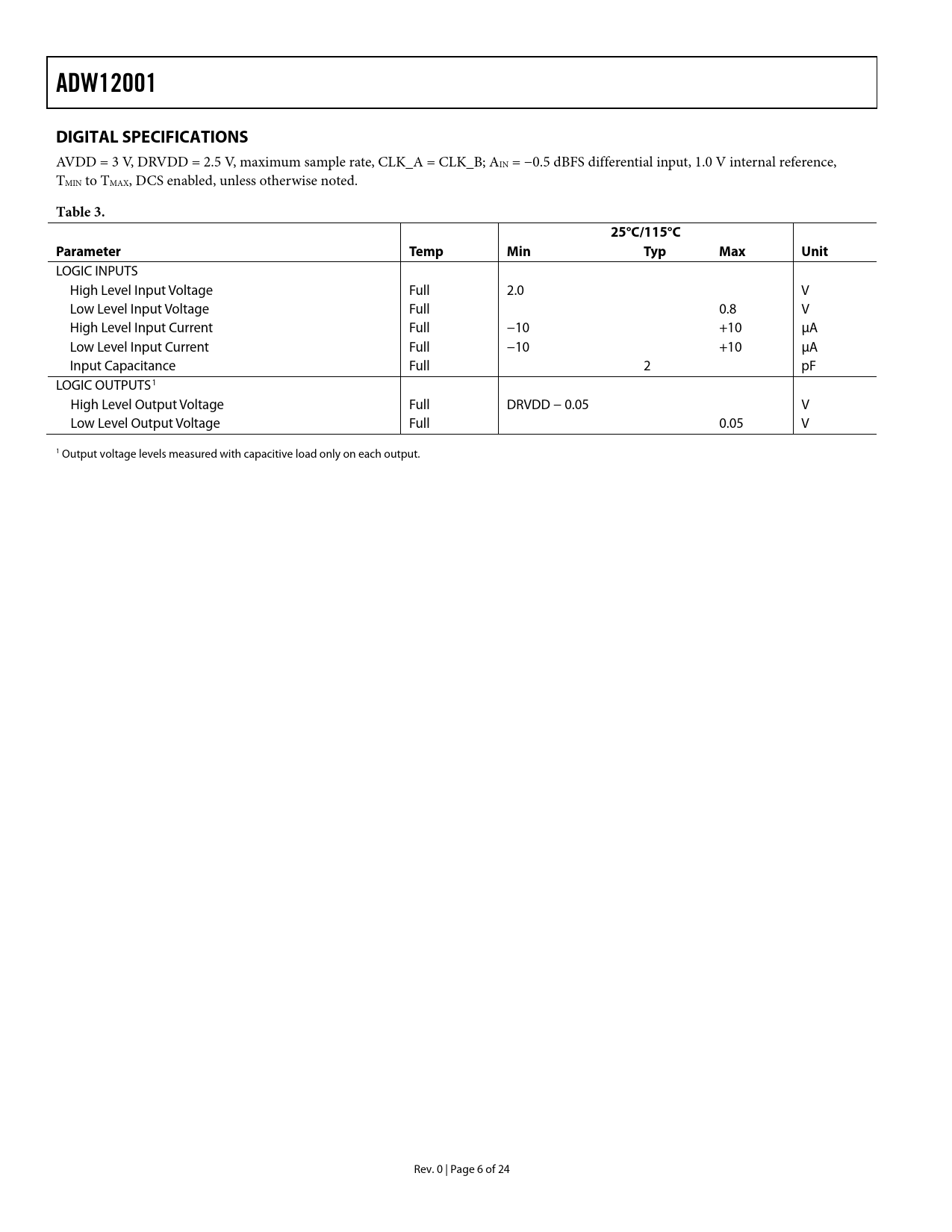

ADW12001 DIGITAL SPECIFICATIONS
AVDD = 3 V, DRVDD = 2.5 V, maximum sample rate, CLK_A = CLK_B; AIN = −0.5 dBFS differential input, 1.0 V internal reference, TMIN to TMAX, DCS enabled, unless otherwise noted.
Table 3. 25°C/115°C Parameter Temp Min Typ Max Unit
