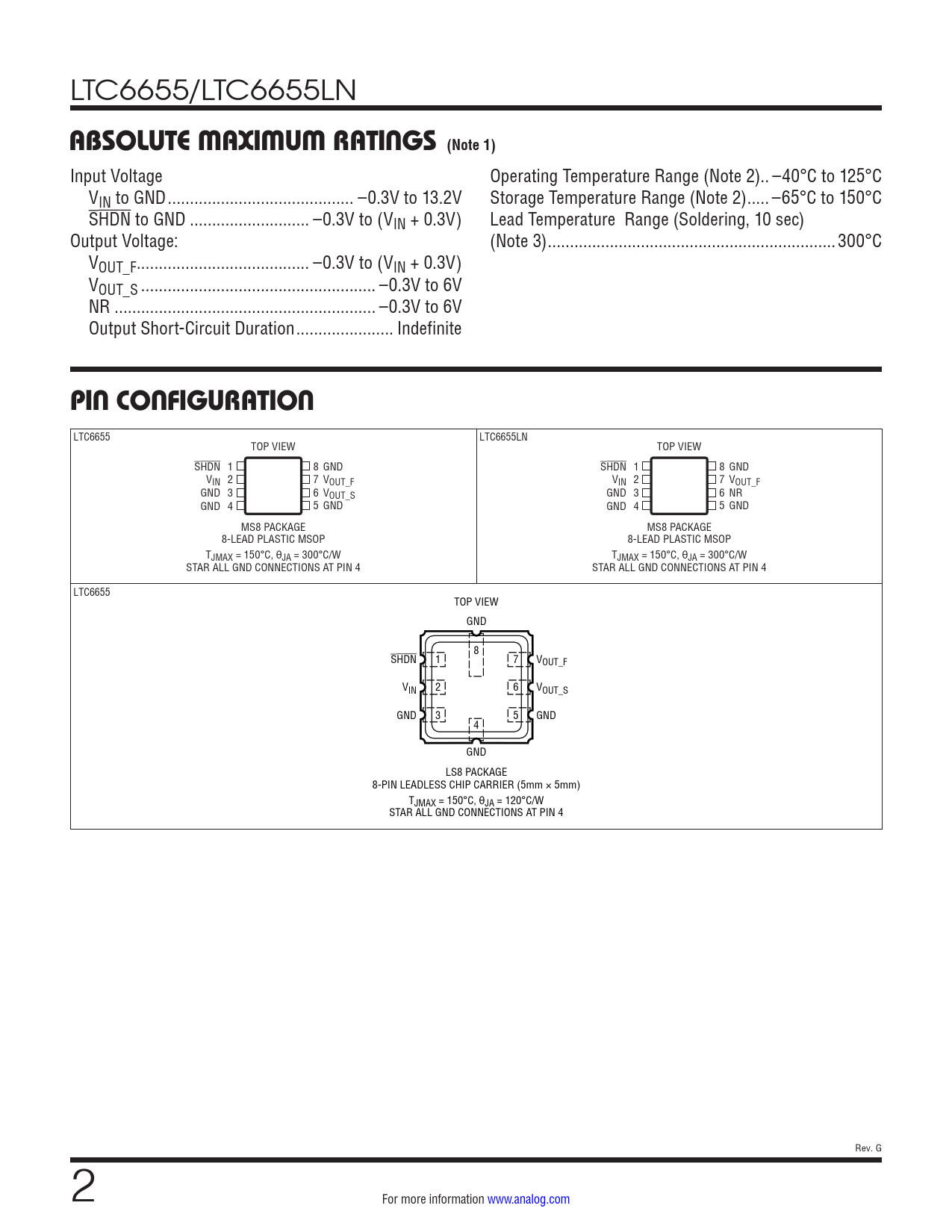

LTC6655/LTC6655LN
ABSOLUTE MAXIMUM RATINGS (Note 1)
Input Voltage Operating Temperature Range (Note 2).. –40°C to 125°C VIN to GND .. –0.3V to 13.2V Storage Temperature Range (Note 2) ... –65°C to 150°C SHDN to GND ... –0.3V to (VIN + 0.3V) Lead Temperature Range (Soldering, 10 sec) Output Voltage: (Note 3) ...300°C VOUT_F... –0.3V to (VIN + 0.3V) VOUT_S ... –0.3V to 6V NR ... –0.3V to 6V Output Short-Circuit Duration .. Indefinite
PIN CONFIGURATION
LTC6655 LTC6655LN TOP VIEW TOP VIEW SHDN 1 8 GND SHDN 1 8 GND VIN 2 7 VOUT_F VIN 2 7 VOUT_F GND 3 6 VOUT_S GND 3 6 NR GND 4 5 GND GND 4 5 GND MS8 PACKAGE MS8 PACKAGE 8-LEAD PLASTIC MSOP 8-LEAD PLASTIC MSOP TJMAX = 150°C, θJA = 300°C/W TJMAX = 150°C, θJA = 300°C/W STAR ALL GND CONNECTIONS AT PIN 4 STAR ALL GND CONNECTIONS AT PIN 4 LTC6655 TOP VIEW GND 8 SHDN 1 7 VOUT_F VIN 2 6 VOUT_S GND 3 5 GND 4 GND LS8 PACKAGE 8-PIN LEADLESS CHIP CARRIER (5mm × 5mm) TJMAX = 150°C, θJA = 120°C/W STAR ALL GND CONNECTIONS AT PIN 4 Rev. G 2 For more information www.analog.com Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Available Options Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
