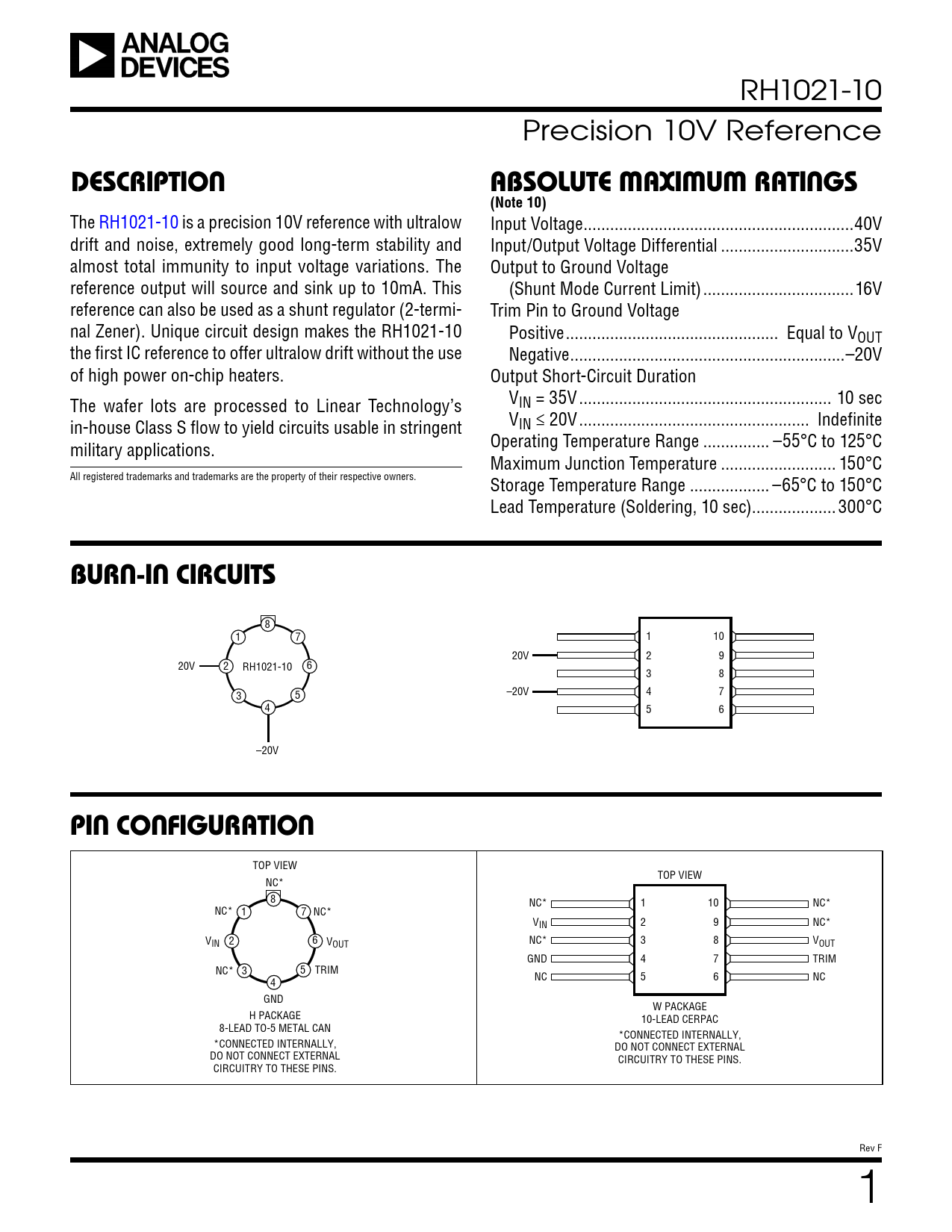

RH1021-10 Precision 10V Reference
DESCRIPTION ABSOLUTE MAXIMUM RATINGS (Note 10)
The RH1021-10 is a precision 10V reference with ultralow Input Voltage ...40V drift and noise, extremely good long-term stability and Input/Output Voltage Differential ..35V almost total immunity to input voltage variations. The Output to Ground Voltage reference output will source and sink up to 10mA. This (Shunt Mode Current Limit) ..16V reference can also be used as a shunt regulator (2-termi- Trim Pin to Ground Voltage nal Zener). Unique circuit design makes the RH1021-10 Positive .. Equal to VOUT the first IC reference to offer ultralow drift without the use Negative ..–20V of high power on-chip heaters. Output Short-Circuit Duration VIN = 35V ... 10 sec The wafer lots are processed to Linear Technology’s VIN ≤ 20V .. Indefinite in-house Class S flow to yield circuits usable in stringent Operating Temperature Range ... –55°C to 125°C military applications. Maximum Junction Temperature .. 150°C All registered trademarks and trademarks are the property of their respective owners. Storage Temperature Range .. –65°C to 150°C Lead Temperature (Soldering, 10 sec) ...300°C
BURN-IN CIRCUITS
8 1 7 1 10 20V 2 9 20V 2 RH1021-10 6 3 8 3 5 –20V 4 7 4 5 6 –20V
PIN CONFIGURATION
TOP VIEW TOP VIEW NC* 8 NC* 1 10 NC* NC* 1 7 NC* VIN 2 9 NC* VIN 2 6 VOUT NC* 3 8 VOUT GND 4 7 TRIM NC* 3 5 TRIM 4 NC 5 6 NC GND W PACKAGE H PACKAGE 10-LEAD CERPAC 8-LEAD TO-5 METAL CAN *CONNECTED INTERNALLY, *CONNECTED INTERNALLY, DO NOT CONNECT EXTERNAL DO NOT CONNECT EXTERNAL CIRCUITRY TO THESE PINS. CIRCUITRY TO THESE PINS. Rev F 1 Document Outline Description Absolute Maximum Ratings Burn-In Circuits Pin Configuration Order Information Table 1: Electrical Characteristics Table 1A: Electrical Characteristics Table 2: Electrical Test Requirements Total Dose Bias Circuit Revision History Typical Performance Characteristics
