Datasheet RH1021-10 (Analog Devices) - 2
| Manufacturer | Analog Devices |
| Description | Precision 10V Reference |
| Pages / Page | 6 / 2 — ORDER INFORMATION LEAD BASED FINISH. TAPE AND REEL. PART MARKING. PACKAGE … |
| Revision | F |
| File Format / Size | PDF / 667 Kb |
| Document Language | English |
ORDER INFORMATION LEAD BASED FINISH. TAPE AND REEL. PART MARKING. PACKAGE DESCRIPTION. TEMPERATURE RANGE
Model Line for this Datasheet
Text Version of Document
RH1021-10
ORDER INFORMATION LEAD BASED FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION TEMPERATURE RANGE
RH1021BMH-10 RH1021BMH-10#TR 8-Lead TO-5 Metal Can –55°C to 125°C RH1021CMH-10 RH1021CMH-10#TR 8-Lead TO-5 Metal Can –55°C to 125°C RH1021DMH-10 RH1021DMH-10#TR 8-Lead TO-5 Metal Can –55°C to 125°C RH1021CMW-10 RH1021CMW-10#TR 10-Lead CERPAC –55°C to 125°C Contact the factory for parts specified with wider operating temperature ranges. Tape and reel specifications.

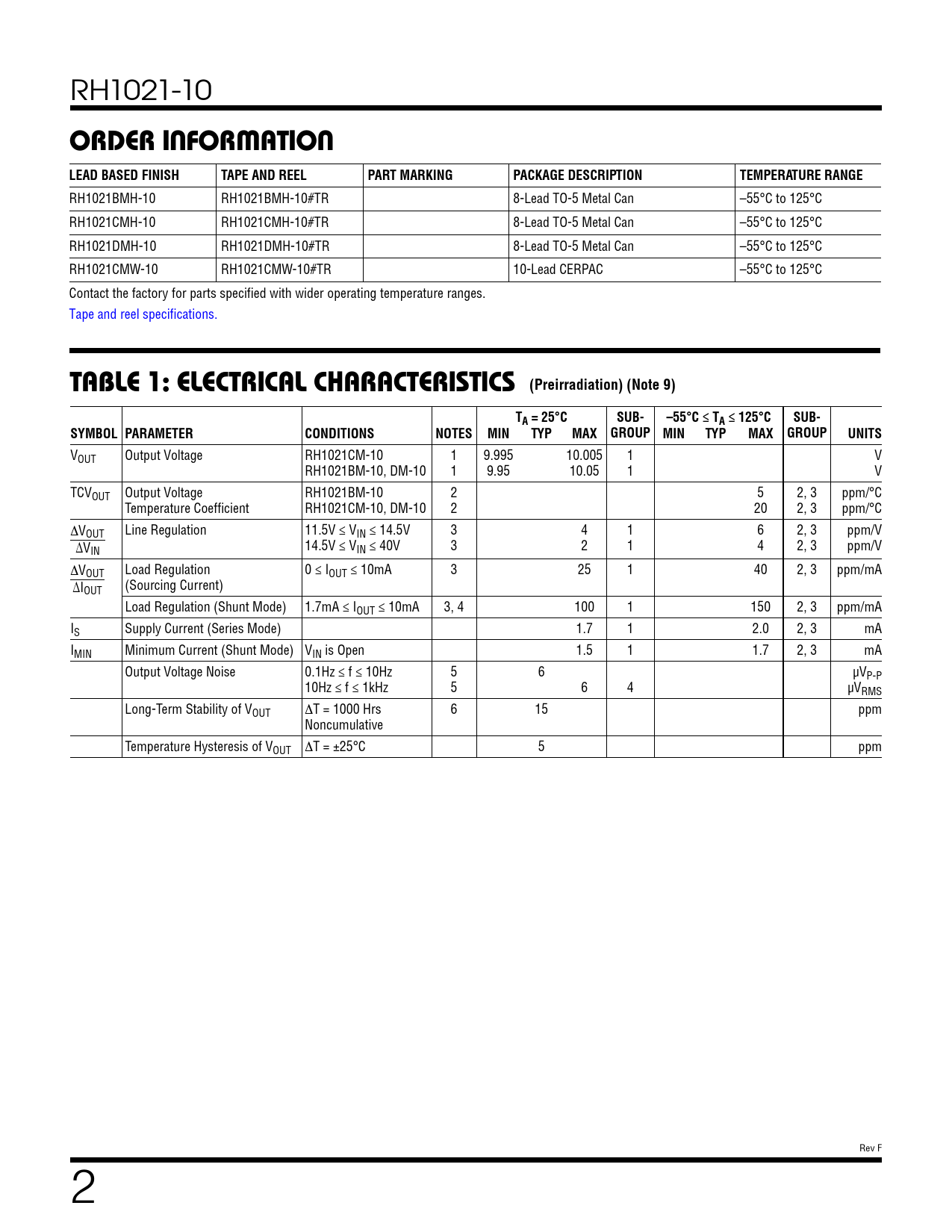

TABLE 1: ELECTRICAL CHARACTERISTICS (Preirradiation) (Note 9) TA = 25°C SUB- –55°C ≤ TA ≤ 125°C SUB- SYMBOL PARAMETER CONDITIONS NOTES MIN TYP MAX GROUP MIN TYP MAX GROUP UNITS
VOUT Output Voltage RH1021CM-10 1 9.995 10.005 1 V RH1021BM-10, DM-10 1 9.95 10.05 1 V TCVOUT Output Voltage RH1021BM-10 2 5 2, 3 ppm/°C Temperature Coefficient RH1021CM-10, DM-10 2 20 2, 3 ppm/°C ∆VOUT Line Regulation 11.5V ≤ VIN ≤ 14.5V 3 4 1 6 2, 3 ppm/V ∆VIN 14.5V ≤ VIN ≤ 40V 3 2 1 4 2, 3 ppm/V ∆VOUT Load Regulation 0 ≤ IOUT ≤ 10mA 3 25 1 40 2, 3 ppm/mA ∆IOUT (Sourcing Current) Load Regulation (Shunt Mode) 1.7mA ≤ IOUT ≤ 10mA 3, 4 100 1 150 2, 3 ppm/mA IS Supply Current (Series Mode) 1.7 1 2.0 2, 3 mA IMIN Minimum Current (Shunt Mode) VIN is Open 1.5 1 1.7 2, 3 mA Output Voltage Noise 0.1Hz ≤ f ≤ 10Hz 5 6 µVP-P 10Hz ≤ f ≤ 1kHz 5 6 4 µVRMS Long-Term Stability of VOUT ∆T = 1000 Hrs 6 15 ppm Noncumulative Temperature Hysteresis of VOUT ∆T = ±25°C 5 ppm Rev F 2 Document Outline Description Absolute Maximum Ratings Burn-In Circuits Pin Configuration Order Information Table 1: Electrical Characteristics Table 1A: Electrical Characteristics Table 2: Electrical Test Requirements Total Dose Bias Circuit Revision History Typical Performance Characteristics
