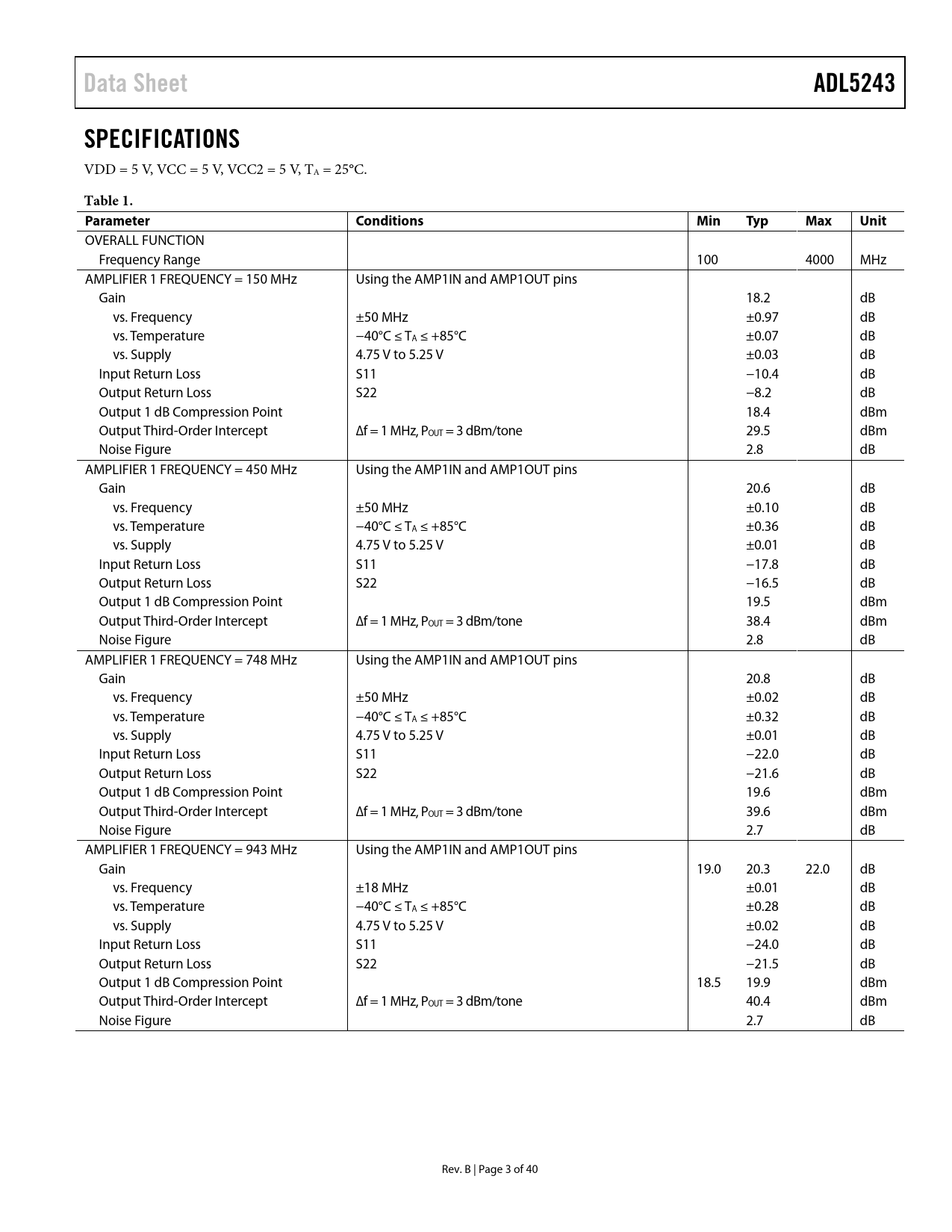

Data Sheet ADL5243 SPECIFICATIONS
VDD = 5 V, VCC = 5 V, VCC2 = 5 V, TA = 25°C.
Table 1. Parameter Conditions Min Typ Max Unit
OVERALL FUNCTION Frequency Range 100 4000 MHz AMPLIFIER 1 FREQUENCY = 150 MHz Using the AMP1IN and AMP1OUT pins Gain 18.2 dB vs. Frequency ±50 MHz ±0.97 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.07 dB vs. Supply 4.75 V to 5.25 V ±0.03 dB Input Return Loss S11 −10.4 dB Output Return Loss S22 −8.2 dB Output 1 dB Compression Point 18.4 dBm Output Third-Order Intercept ∆f = 1 MHz, POUT = 3 dBm/tone 29.5 dBm Noise Figure 2.8 dB AMPLIFIER 1 FREQUENCY = 450 MHz Using the AMP1IN and AMP1OUT pins Gain 20.6 dB vs. Frequency ±50 MHz ±0.10 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.36 dB vs. Supply 4.75 V to 5.25 V ±0.01 dB Input Return Loss S11 −17.8 dB Output Return Loss S22 −16.5 dB Output 1 dB Compression Point 19.5 dBm Output Third-Order Intercept ∆f = 1 MHz, POUT = 3 dBm/tone 38.4 dBm Noise Figure 2.8 dB AMPLIFIER 1 FREQUENCY = 748 MHz Using the AMP1IN and AMP1OUT pins Gain 20.8 dB vs. Frequency ±50 MHz ±0.02 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.32 dB vs. Supply 4.75 V to 5.25 V ±0.01 dB Input Return Loss S11 −22.0 dB Output Return Loss S22 −21.6 dB Output 1 dB Compression Point 19.6 dBm Output Third-Order Intercept ∆f = 1 MHz, POUT = 3 dBm/tone 39.6 dBm Noise Figure 2.7 dB AMPLIFIER 1 FREQUENCY = 943 MHz Using the AMP1IN and AMP1OUT pins Gain 19.0 20.3 22.0 dB vs. Frequency ±18 MHz ±0.01 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.28 dB vs. Supply 4.75 V to 5.25 V ±0.02 dB Input Return Loss S11 −24.0 dB Output Return Loss S22 −21.5 dB Output 1 dB Compression Point 18.5 19.9 dBm Output Third-Order Intercept ∆f = 1 MHz, POUT = 3 dBm/tone 40.4 dBm Noise Figure 2.7 dB Rev. B | Page 3 of 40 Document Outline Features Applications General Description Functional Block Diagram Revision History Specifications Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Applications Information Basic Layout Connections Amplifier 1 Power Supply Amplifier 1 RF Input Interface Amplifier 1 RF Output Interface Amplifier 2 Power Supply Amplifier 2 RF Input Interface Amplifier 2 RF Output Interface DSA RF Input Interface DSA RF Output Interface DSA SPI Interface SPI Timing SPI Timing Sequence ADL5243 Amplifier 2 Matching ADL5243 Loop Performance Proper Driving Level for the Optimum ACLR Thermal Considerations Soldering Information and Recommended PCB Land Pattern Evaluation Board Outline Dimensions Ordering Guide
