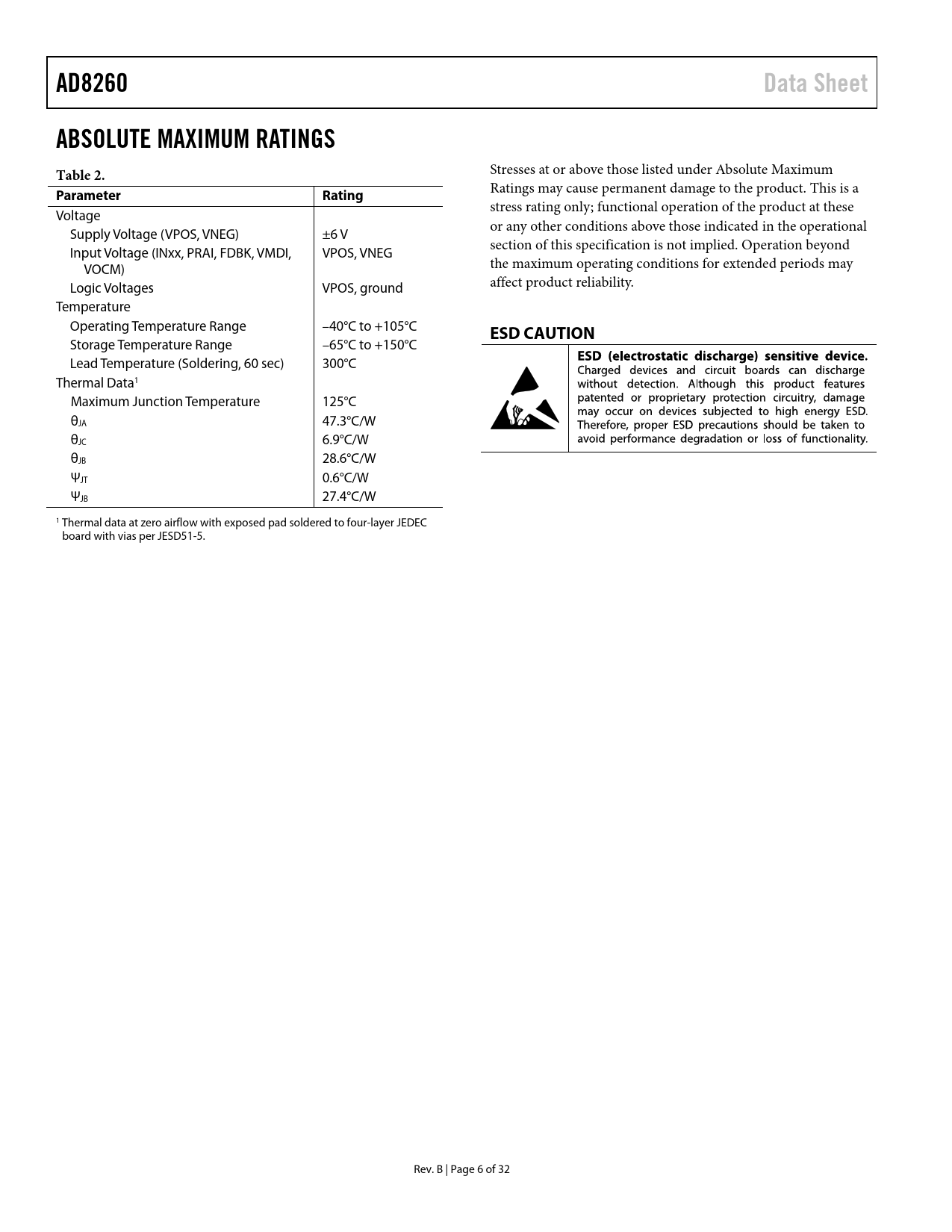

AD8260. Data Sheet. ABSOLUTE MAXIMUM RATINGS. Table 2. Parameter Rating. ESD CAUTION
Model Line for this Datasheet
Text Version of Document
AD8260 Data Sheet ABSOLUTE MAXIMUM RATINGS Table 2.
Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a
Parameter Rating
stress rating only; functional operation of the product at these Voltage or any other conditions above those indicated in the operational Supply Voltage (VPOS, VNEG) ±6 V section of this specification is not implied. Operation beyond Input Voltage (INxx, PRAI, FDBK, VMDI, VPOS, VNEG VOCM) the maximum operating conditions for extended periods may Logic Voltages VPOS, ground affect product reliability. Temperature Operating Temperature Range –40°C to +105°C
ESD CAUTION
Storage Temperature Range –65°C to +150°C Lead Temperature (Soldering, 60 sec) 300°C Thermal Data1 Maximum Junction Temperature 125°C θJA 47.3°C/W θJC 6.9°C/W θJB 28.6°C/W ΨJT 0.6°C/W Ψ JB 27.4°C/W 1 Thermal data at zero airflow with exposed pad soldered to four-layer JEDEC board with vias per JESD51-5. Rev. B | Page 6 of 32 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS THEORY OF OPERATION OVERVIEW HIGH CURRENT DRIVER AMPLIFIER PRECAUTIONS TO BE OBSERVED DURING HALF-DUPLEX OPERATION VMID BUFFER PREAMPLIFIER PREAMPLIFIER NOISE DGA GAIN CONTROL OUTPUT STAGE ATTENUATOR SINGLE-SUPPLY OPERATION AND AC COUPLING POWER-UP/POWER-DOWN SEQUENCE LOGIC INTERFACES APPLICATIONS INFORMATION EVALUATION BOARD CONNECTING THE EVALUATION BOARD OUTLINE DIMENSIONS ORDERING GUIDE
