Datasheet BC846BS (NXP) - 6
| Manufacturer | NXP |
| Description | 65 V, 100 mA NPN/NPN general-purpose transistor pair |
| Pages / Page | 12 / 6 — NXP Semiconductors. BC846BS. 65 V, 100 mA NPN/NPN general-purpose … |
| File Format / Size | PDF / 101 Kb |
| Document Language | English |
NXP Semiconductors. BC846BS. 65 V, 100 mA NPN/NPN general-purpose transistor. Fig 5. Per transistor: Base-emitter voltage as a
Model Line for this Datasheet
Text Version of Document
NXP Semiconductors BC846BS 65 V, 100 mA NPN/NPN general-purpose transistor
006aaa536 006aaa534 1 1.3 VBEsat (V) VBE 1.1 (V) 0.8 0.9 (1) 0.7 (2) (3) 0.6 0.5 0.3 0.4 0.1 10−1 103 102 1 10 10−1 103 102 1 10 IC (mA) IC (mA) VCE = 5 V; Tamb = 25 °C IC/IB = 20 (1) Tamb = −55 °C (2) Tamb = 25 °C (3) Tamb = 100 °C

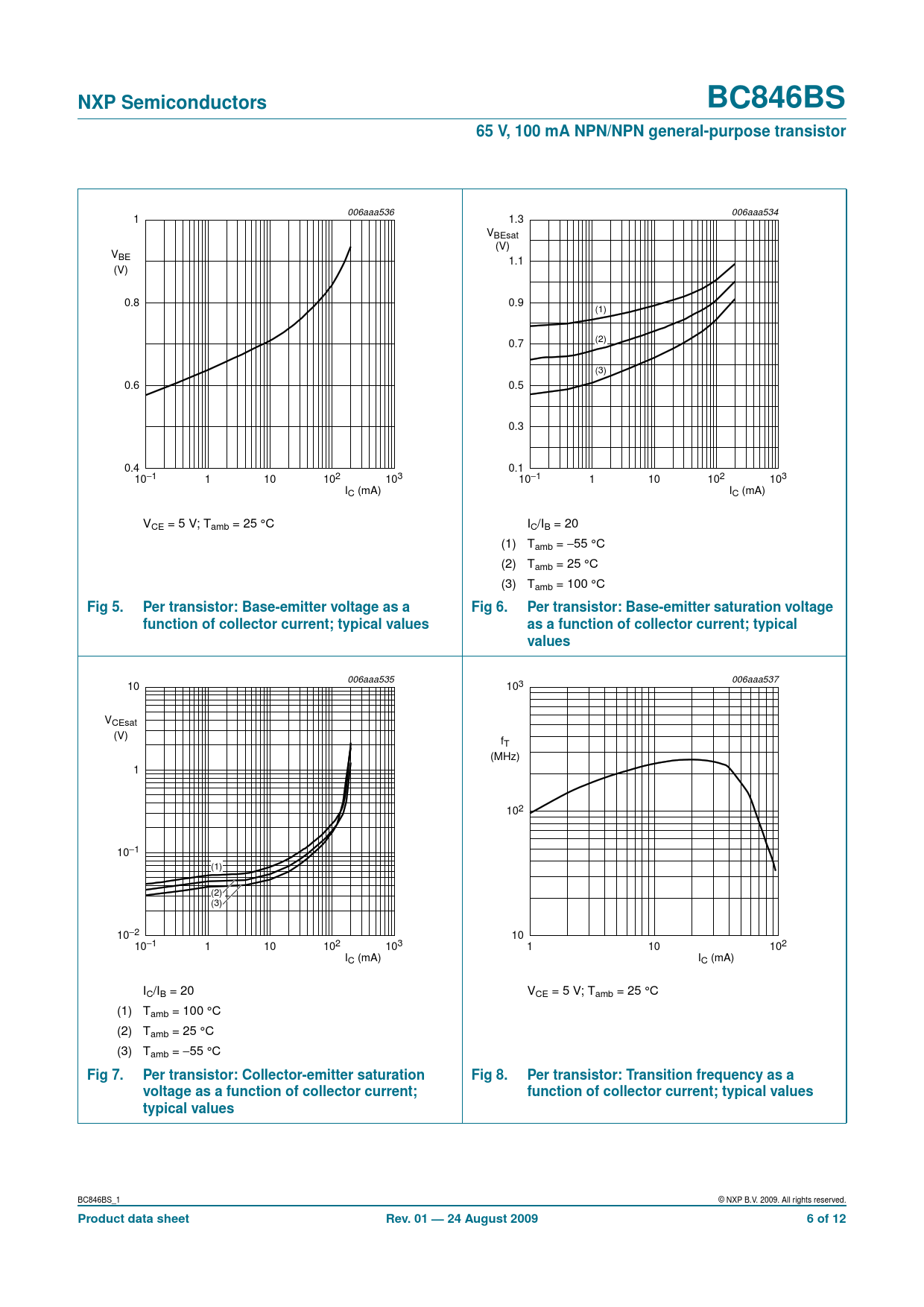

Fig 5. Per transistor: Base-emitter voltage as a Fig 6. Per transistor: Base-emitter saturation voltage function of collector current; typical values as a function of collector current; typical values
006aaa535 006aaa537 10 103 VCEsat (V) fT (MHz) 1 102 10−1 (1) (2) (3) 10−2 10 10−1 103 102 1 10 1 102 10 IC (mA) IC (mA) IC/IB = 20 VCE = 5 V; Tamb = 25 °C (1) Tamb = 100 °C (2) Tamb = 25 °C (3) Tamb = −55 °C
Fig 7. Per transistor: Collector-emitter saturation Fig 8. Per transistor: Transition frequency as a voltage as a function of collector current; function of collector current; typical values typical values
