Datasheet BC856W, BC857W, BC858W, BC859W, BC860W (Infineon) - 2
| Manufacturer | Infineon |
| Description | PNP Silicon AF Transistors SOT-323 |
| Pages / Page | 11 / 2 — Package SOT323 |
| File Format / Size | PDF / 187 Kb |
| Document Language | English |
Package SOT323
Model Line for this Datasheet
Text Version of Document

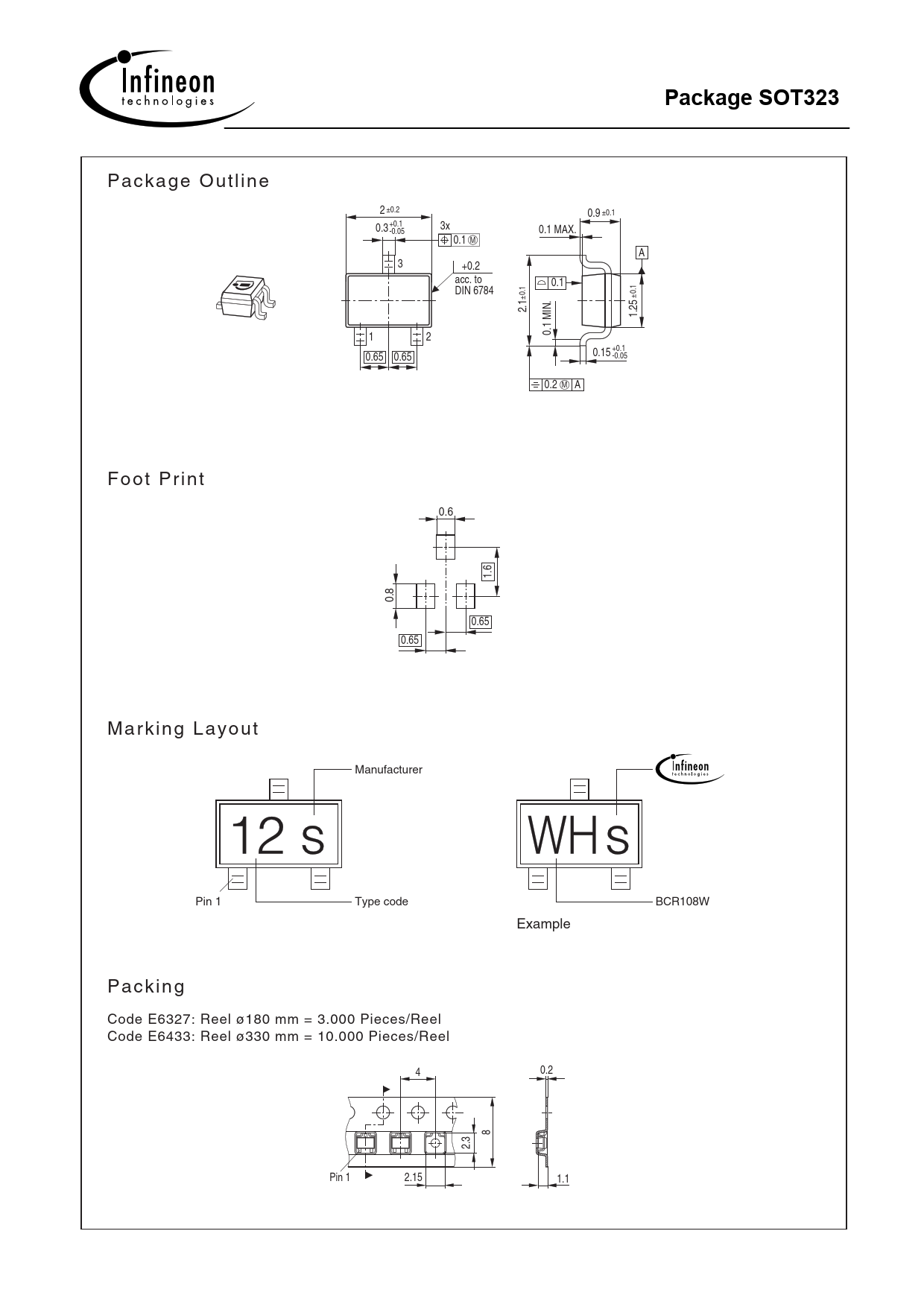

Package SOT323
P a c k a g e O u t l i n e 2 ±0.2 0.9 ±0.1 0.3+0.1 3x -0.05 0.1 MAX. 0.1 M A 3 +0.2 acc. to 0.1 DIN 6784 ±0.1 ±0.1 2.1 1.25 0.1 MIN. 1 2 0.15 +0.1 -0.05 0.65 0.65 0.2 M A F o o t P r i n t 0.6 1.6 0.8 0.65 0.65 M a r k i n g L a y o u t Manufacturer Pin 1 Type code BCR108W Example P a c k i n g Code E6327: Reel ø180 mm = 3.000 Pieces/Reel Code E6433: Reel ø330 mm = 10.000 Pieces/Reel 0.2 4 8 2.3 Pin 1 2.15 1.1
P a c k a g e O u t l i n e 2 ±0.2 0.9 ±0.1 0.3+0.1 3x -0.05 0.1 MAX. 0.1 M A 3 +0.2 acc. to 0.1 DIN 6784 ±0.1 ±0.1 2.1 1.25 0.1 MIN. 1 2 0.15 +0.1 -0.05 0.65 0.65 0.2 M A F o o t P r i n t 0.6 1.6 0.8 0.65 0.65 M a r k i n g L a y o u t Manufacturer Pin 1 Type code BCR108W Example P a c k i n g Code E6327: Reel ø180 mm = 3.000 Pieces/Reel Code E6433: Reel ø330 mm = 10.000 Pieces/Reel 0.2 4 8 2.3 Pin 1 2.15 1.1
