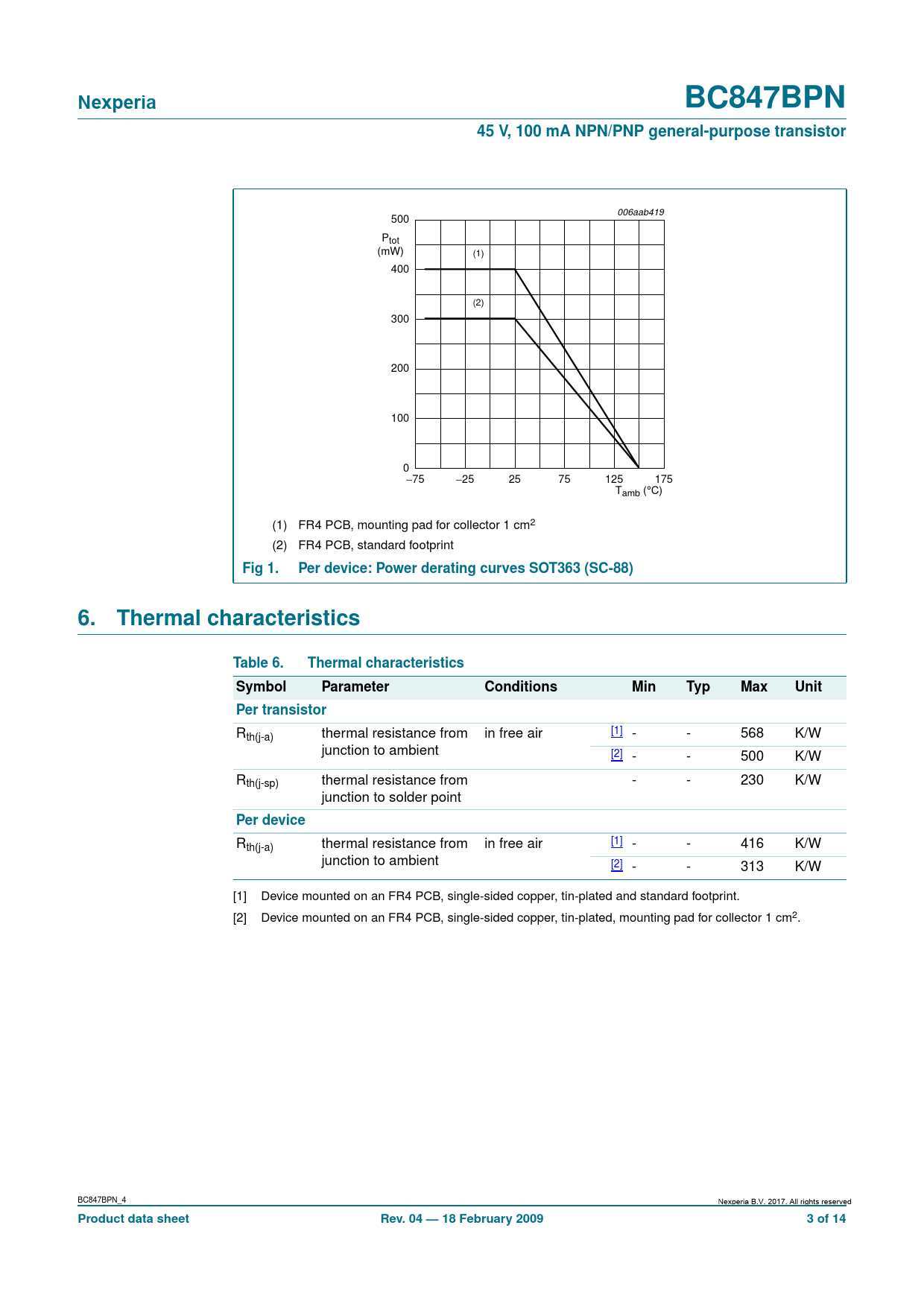

Nexperia BC847BPN 45 V, 100 mA NPN/PNP general-purpose transistor
006aab419 500 Ptot (mW) (1) 400 (2) 300 200 100 0−75 −25 25 75 125 175 Tamb (°C) (1) FR4 PCB, mounting pad for collector 1 cm2 (2) FR4 PCB, standard footprint
Fig 1. Per device: Power derating curves SOT363 (SC-88) 6. Thermal characteristics Table 6. Thermal characteristics Symbol Parameter Conditions Min Typ Max Unit Per transistor
Rth(j-a) thermal resistance from in free air [1] - - 568 K/W junction to ambient [2] - - 500 K/W Rth(j-sp) thermal resistance from - - 230 K/W junction to solder point
Per device
Rth(j-a) thermal resistance from in free air [1] - - 416 K/W junction to ambient [2] - - 313 K/W [1] Device mounted on an FR4 PCB, single-sided copper, tin-plated and standard footprint. [2] Device mounted on an FR4 PCB, single-sided copper, tin-plated, mounting pad for collector 1 cm2. BC847BPN_4 © NNexperia B.V. 2017. All rights reserved
Product data sheet Rev. 04 — 18 February 2009 3 of 14
