Datasheet BC847BPN (Nexperia) - 8
| Manufacturer | Nexperia |
| Description | NPN/PNP general-purpose transistor pair in a very small SOT363 (SC-88) Surface-Mounted Device (SMD) plastic package. |
| Pages / Page | 14 / 8 — Nexperia. BC847BPN. 45 V, 100 mA NPN/PNP general-purpose transistor. Fig … |
| Revision | 07082018 |
| File Format / Size | PDF / 589 Kb |
| Document Language | English |
Nexperia. BC847BPN. 45 V, 100 mA NPN/PNP general-purpose transistor. Fig 10. TR2 (PNP): DC current gain as a function of
Model Line for this Datasheet
Text Version of Document
Nexperia BC847BPN 45 V, 100 mA NPN/PNP general-purpose transistor
006aab425 006aab426 600 −0.20 IB (mA) = −3.5 −3.15 IC − h (1) 2.8 − FE (A) 2.45 −2.1 −1.75 −0.15 −1.4 400 −1.05 (2) −0.7 −0.10 −0.35 200 (3) −0.05 0 0 −10−1 −103 −102 −1 −10 0 −1 −2 −3 −4 −5 IC (mA) VCE (V) VCE = −5 V Tamb = 25 °C (1) Tamb = 150 °C (2) Tamb = 25 °C (3) Tamb = −55 °C

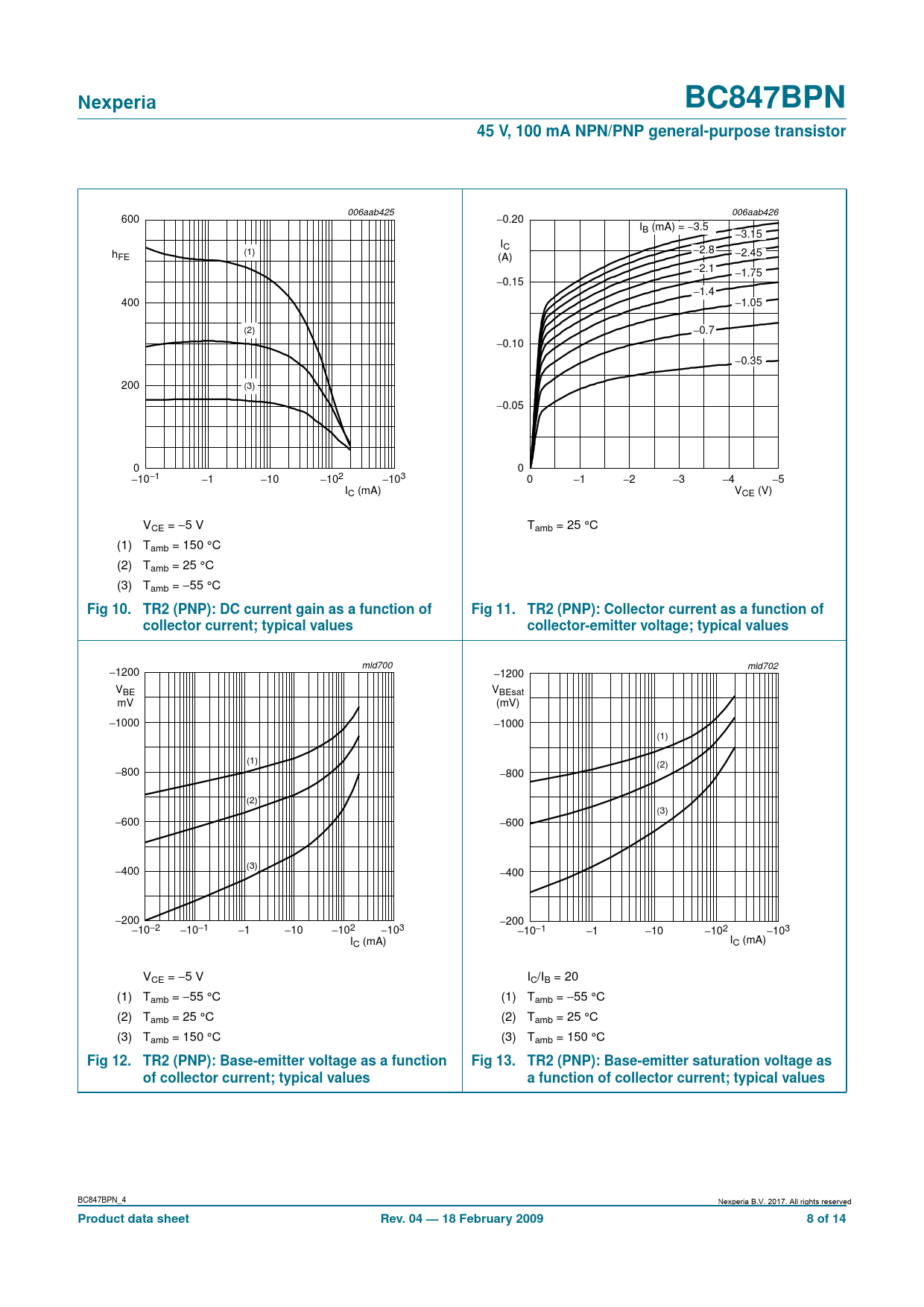

Fig 10. TR2 (PNP): DC current gain as a function of Fig 11. TR2 (PNP): Collector current as a function of collector current; typical values collector-emitter voltage; typical values
− mld700 mld702 1200 −1200 VBE VBEsat mV (mV) −1000 −1000 (1) (1) − (2) 800 −800 (2) (3) −600 −600 − (3) 400 −400 −200 −200 −10−2 −10−1 −1 −10 −102 −103 −10−1 −1 −10 −102 −103 IC (mA) IC (mA) VCE = −5 V IC/IB = 20 (1) Tamb = −55 °C (1) Tamb = −55 °C (2) Tamb = 25 °C (2) Tamb = 25 °C (3) Tamb = 150 °C (3) Tamb = 150 °C
Fig 12. TR2 (PNP): Base-emitter voltage as a function Fig 13. TR2 (PNP): Base-emitter saturation voltage as of collector current; typical values a function of collector current; typical values
BC847BPN_4 © NNexperia B.V. 2017. All rights reserved
Product data sheet Rev. 04 — 18 February 2009 8 of 14
