Datasheet BC847BPN (Nexperia) - 9
| Manufacturer | Nexperia |
| Description | NPN/PNP general-purpose transistor pair in a very small SOT363 (SC-88) Surface-Mounted Device (SMD) plastic package. |
| Pages / Page | 14 / 9 — Nexperia. BC847BPN. 45 V, 100 mA NPN/PNP general-purpose transistor. Fig … |
| Revision | 07082018 |
| File Format / Size | PDF / 589 Kb |
| Document Language | English |
Nexperia. BC847BPN. 45 V, 100 mA NPN/PNP general-purpose transistor. Fig 14. TR2 (PNP): Collector-emitter saturation
Model Line for this Datasheet
Text Version of Document
Nexperia BC847BPN 45 V, 100 mA NPN/PNP general-purpose transistor
− mld701 006aab427 104 109 VCEsat (mV) fT (Hz) −103 108 − (1) 102 (2) (3) −10 107 −10−1 −1 −10 −102 −103 −10−1 −1 −102 −10 IC (mA) IC (mA) IC/IB = 20 VCE = −5 V; f = 1 MHz; Tamb = 25 °C (1) Tamb = 150 °C (2) Tamb = 25 °C (3) Tamb = −55 °C

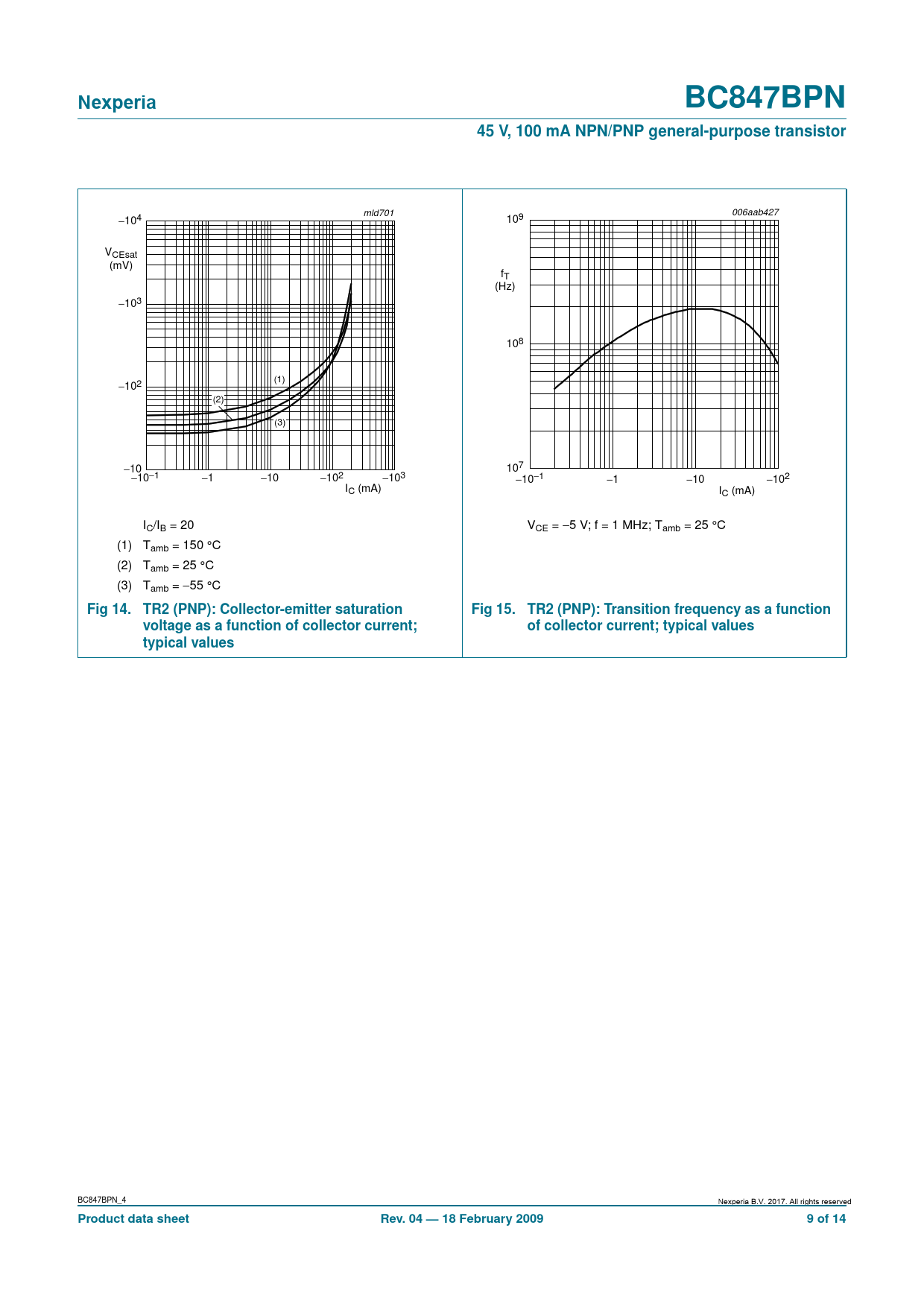

Fig 14. TR2 (PNP): Collector-emitter saturation Fig 15. TR2 (PNP): Transition frequency as a function voltage as a function of collector current; of collector current; typical values typical values
BC847BPN_4 © NNexperia B.V. 2017. All rights reserved
Product data sheet Rev. 04 — 18 February 2009 9 of 14
