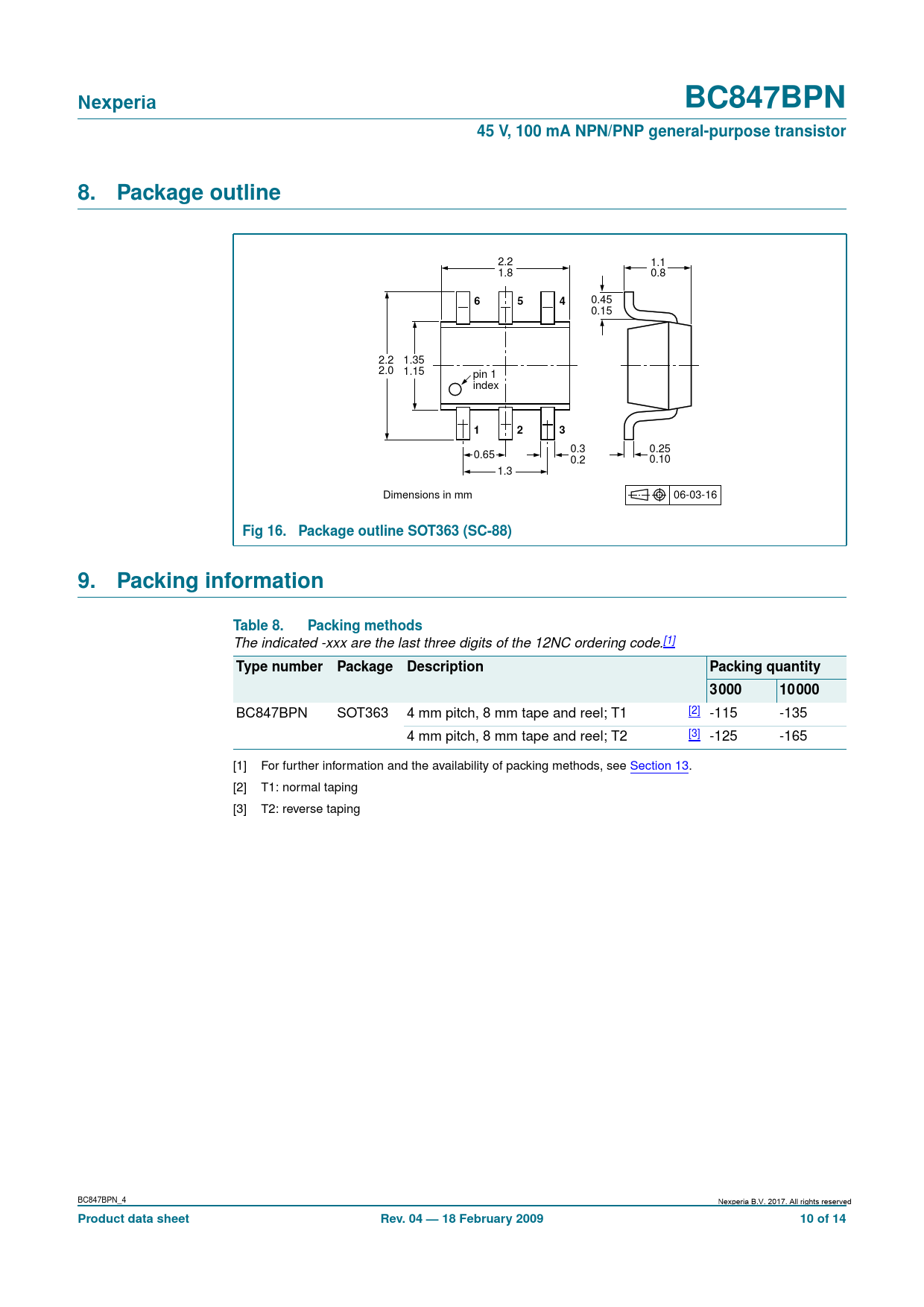

Nexperia. BC847BPN. 45 V, 100 mA NPN/PNP general-purpose transistor. Package outline. Fig 16. Package outline SOT363 (SC-88)
Model Line for this Datasheet
Text Version of Document
link to page 10 link to page 10 link to page 10 link to page 13
Nexperia BC847BPN 45 V, 100 mA NPN/PNP general-purpose transistor 8. Package outline
2.2 1.1 1.8 0.8
6 5 4
0.45 0.15 2.2 1.35 2.0 1.15 pin 1 index
1 2 3
0.3 0.25 0.65 0.2 0.10 1.3 Dimensions in mm 06-03-16
Fig 16. Package outline SOT363 (SC-88) 9. Packing information Table 8. Packing methods
The indicated -xxx are the last three digits of the 12NC ordering code.[1]
Type number Package Description Packing quantity 3000 10000
BC847BPN SOT363 4 mm pitch, 8 mm tape and reel; T1 [2] -115 -135 4 mm pitch, 8 mm tape and reel; T2 [3] -125 -165 [1] For further information and the availability of packing methods, see Section 13. [2] T1: normal taping [3] T2: reverse taping BC847BPN_4 © NNexperia B.V. 2017. All rights reserved
Product data sheet Rev. 04 — 18 February 2009 10 of 14
