Datasheet AL5814Q (Diodes) - 3
| Manufacturer | Diodes |
| Description | Automotive Compliant 60V LED Linear Dimmable LED Controller |
| Pages / Page | 14 / 3 — AL5814Q. Functional Block Diagram. T UC OD R P W E N. Figure 2. Absolute … |
| File Format / Size | PDF / 561 Kb |
| Document Language | English |

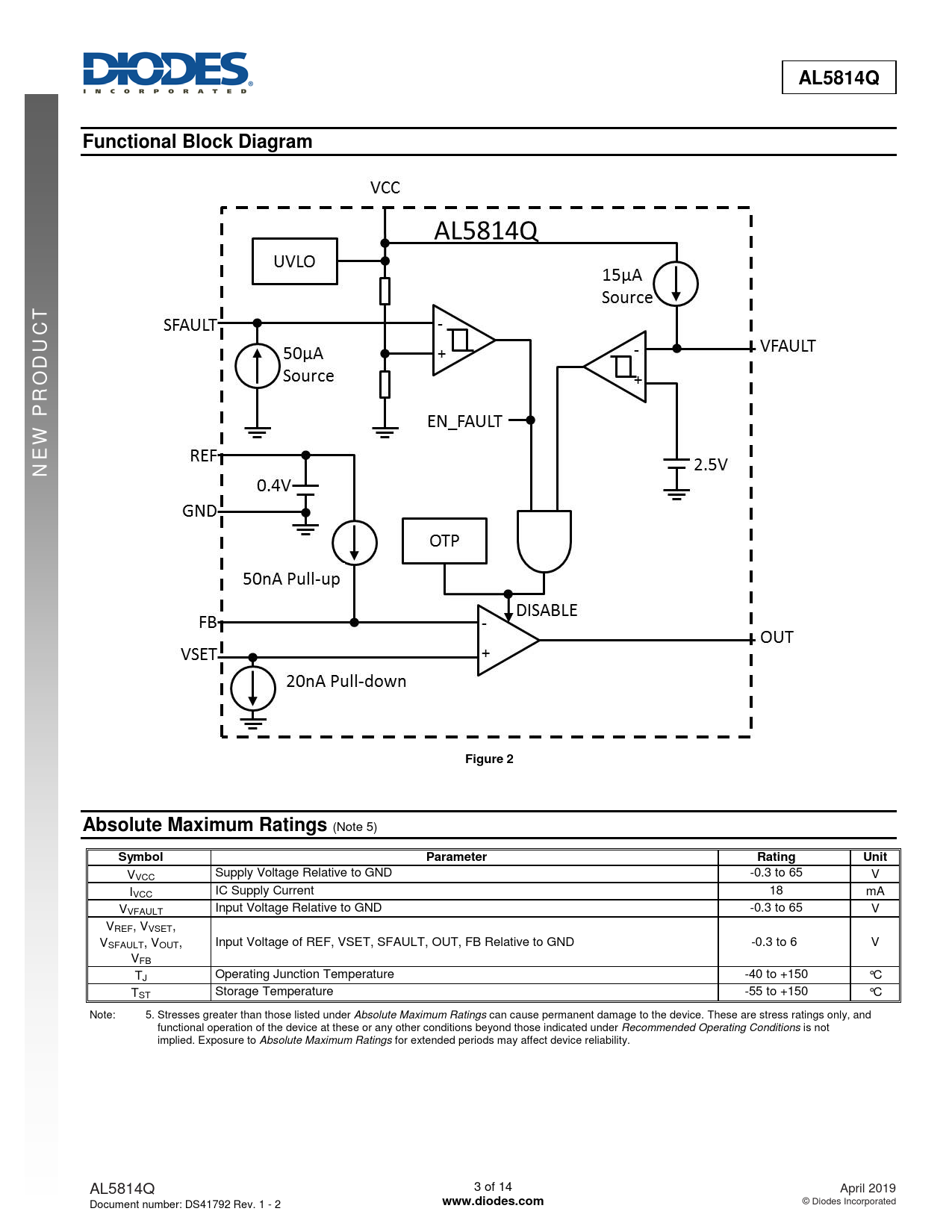

AL5814Q. Functional Block Diagram. T UC OD R P W E N. Figure 2. Absolute Maximum Ratings. Symbol. Parameter. Rating. Unit. www.diodes.com
Model Line for this Datasheet
Text Version of Document
AL5814Q Functional Block Diagram T UC OD R P W E N Figure 2 Absolute Maximum Ratings
(Note 5)
Symbol Parameter Rating Unit
VVCC Supply Voltage Relative to GND -0.3 to 65 V IVCC IC Supply Current 18 mA VVFAULT Input Voltage Relative to GND -0.3 to 65 V VREF, VVSET, VSFAULT, VOUT, Input Voltage of REF, VSET, SFAULT, OUT, FB Relative to GND -0.3 to 6 V VFB TJ Operating Junction Temperature -40 to +150 °C TST Storage Temperature -55 to +150 °C Note: 5. Stresses greater than those listed under Absolute Maximum Ratings can cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions is not implied. Exposure to Absolute Maximum Ratings for extended periods may affect device reliability. AL5814Q 3 of 14 April 2019 Document number: DS41792 Rev. 1 - 2
