Datasheet XC9268 (Torex) - 8
| Manufacturer | Torex |
| Description | 36V Operation 0.6A Synchronous Step-Down DC/DC Converters |
| Pages / Page | 29 / 8 — XC9268. Series. Series Series Series |
| File Format / Size | PDF / 1.7 Mb |
| Document Language | English |
XC9268. Series. Series Series Series
Model Line for this Datasheet
Text Version of Document
XC9268 Series Series Series Series Series

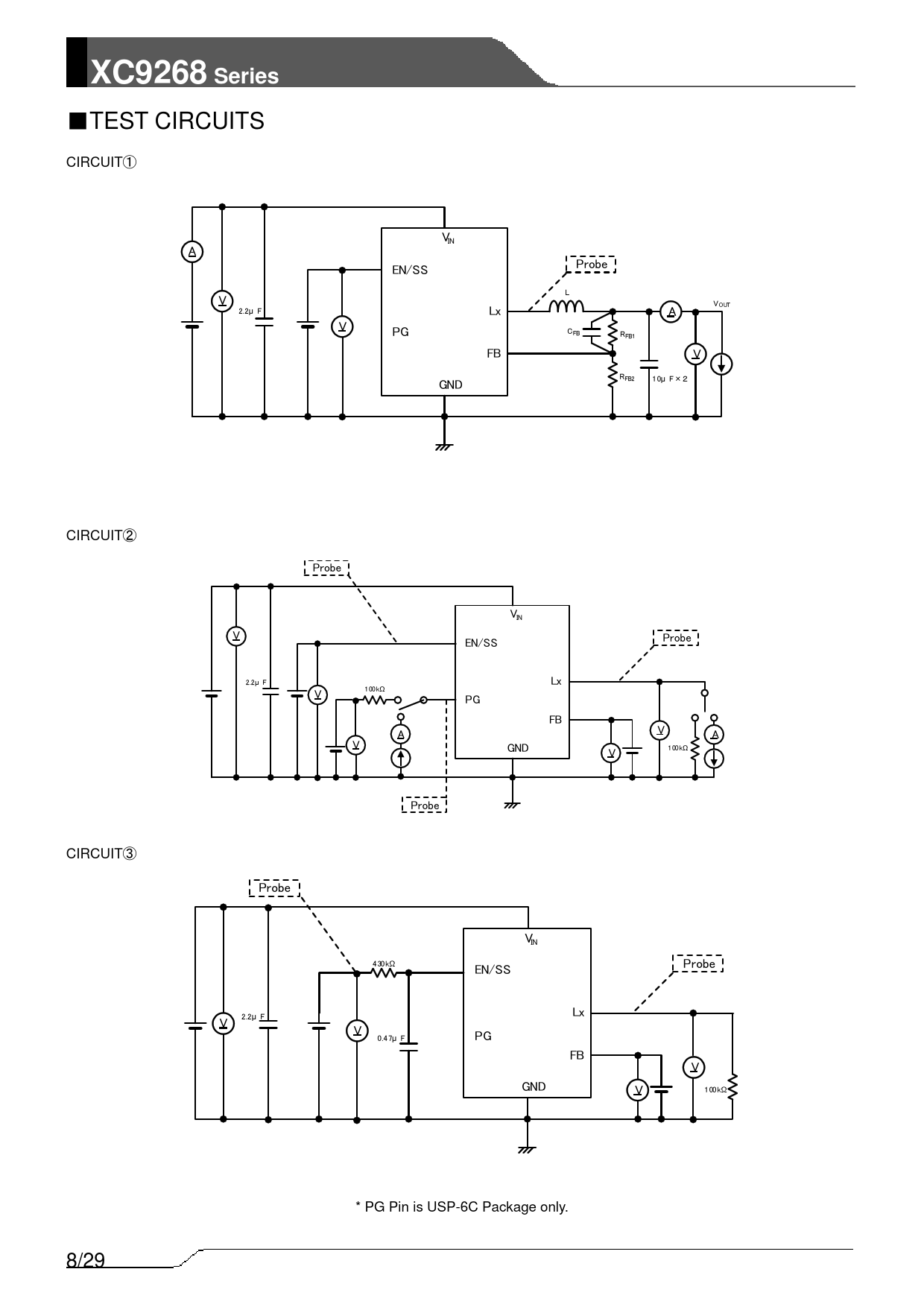

■TEST CIRCUITS CIRCUIT① VIN A EN/SS Probe L V VOUT 2.2μ F Lx A V PG CFB RFB1 FB V R GND FB2 10μ F×２ CIRCUIT② Probe VIN V EN/SS Probe 2.2μ F Lx V 1 00kΩ PG FB V A A V GND V 100 kΩ Probe CIRCUIT③ Probe VIN 430kΩ EN/SS Probe Lx 2.2μ F V V 0.4 7μ F PG FB V GND V 100kΩ * PG Pin is USP-6C Package only. 8/29
