LTM8049

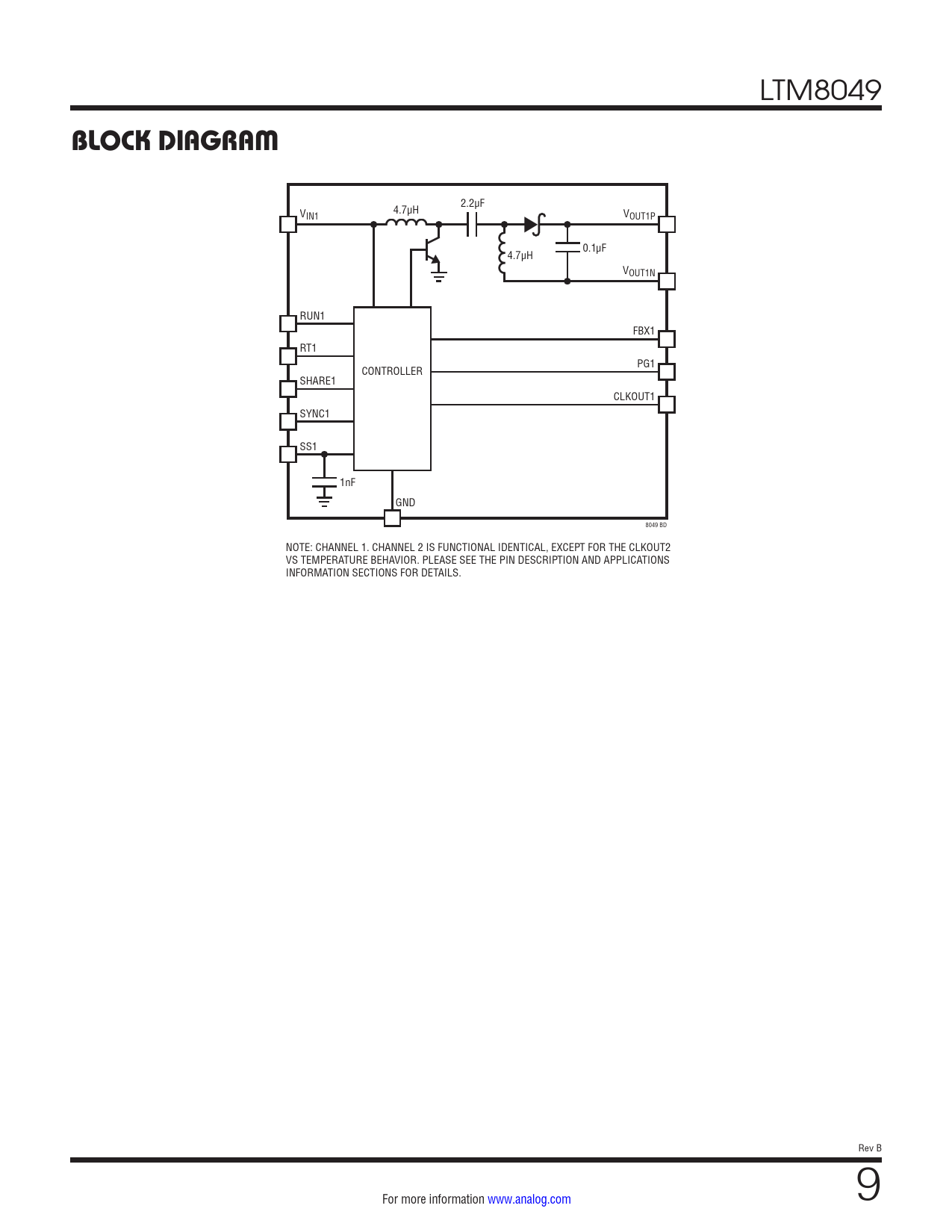

BLOCK DIAGRAM
2.2µF V 4.7µH IN1 VOUT1P 0.1µF 4.7µH VOUT1N RUN1 FBX1 RT1 PG1 CONTROLLER SHARE1 CLKOUT1 SYNC1 SS1 1nF GND 8049 BD NOTE: CHANNEL 1. CHANNEL 2 IS FUNCTIONAL IDENTICAL, EXCEPT FOR THE CLKOUT2 VS TEMPERATURE BEHAVIOR. PLEASE SEE THE PIN DESCRIPTION AND APPLICATIONS INFORMATION SECTIONS FOR DETAILS. Rev B For more information www.analog.com 9 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Pin Configuration Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Typical Applications Package Description Package Photo Revision History Typical Application Related Parts
