Data Sheet. AD8213. SPECIFICATIONS. Table 1. Parameter. Test Conditions/Comments. Min Typ. Max. Unit
Model Line for this Datasheet
Text Version of Document
link to page 6 link to page 6 link to page 7

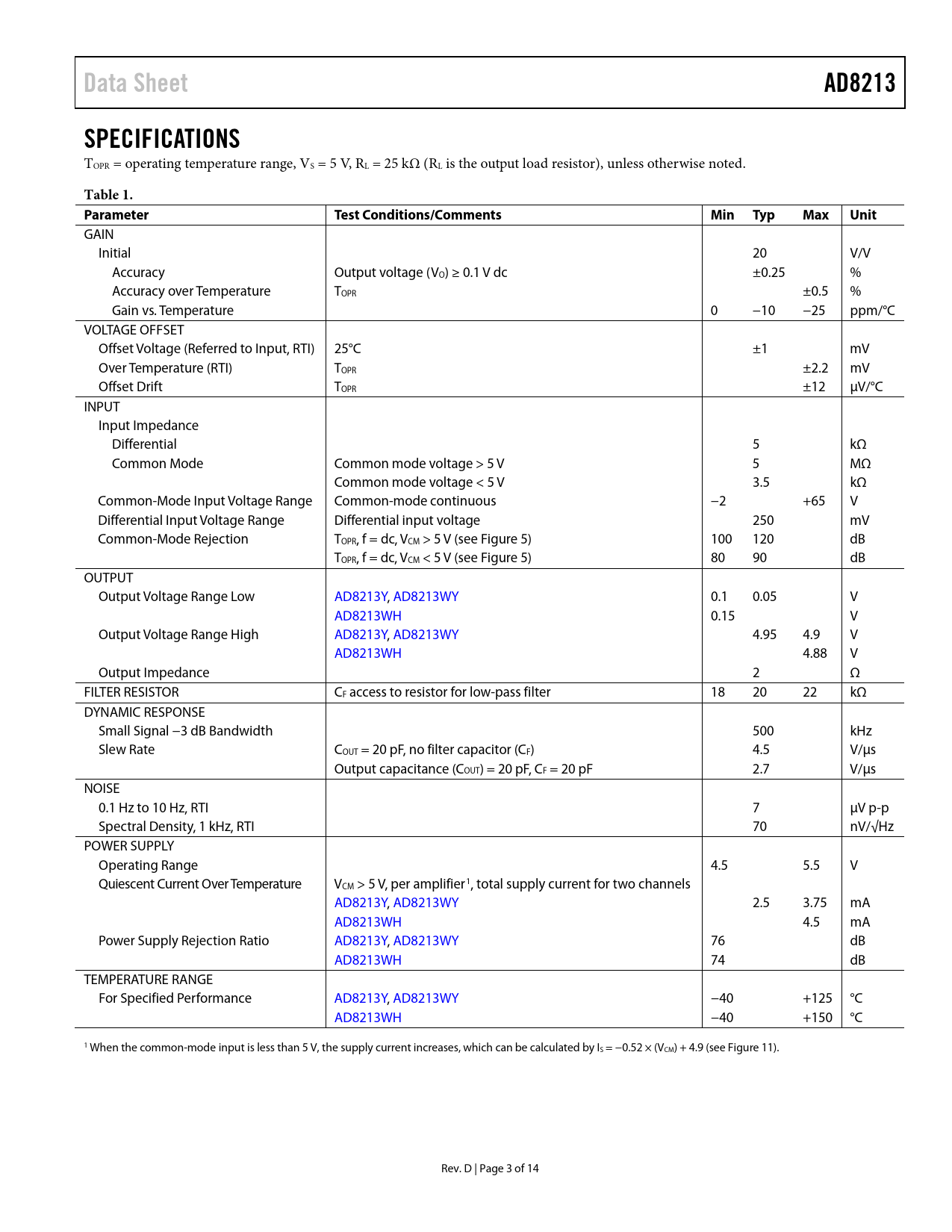

Data Sheet AD8213 SPECIFICATIONS
TOPR = operating temperature range, VS = 5 V, RL = 25 kΩ (RL is the output load resistor), unless otherwise noted.
Table 1. Parameter Test Conditions/Comments Min Typ Max Unit
GAIN Initial 20 V/V Accuracy Output voltage (VO) ≥ 0.1 V dc ±0.25 % Accuracy over Temperature TOPR ±0.5 % Gain vs. Temperature 0 −10 −25 ppm/°C VOLTAGE OFFSET Offset Voltage (Referred to Input, RTI) 25°C ±1 mV Over Temperature (RTI) TOPR ±2.2 mV Offset Drift TOPR ±12 µV/°C INPUT Input Impedance Differential 5 kΩ Common Mode Common mode voltage > 5 V 5 MΩ Common mode voltage < 5 V 3.5 kΩ Common-Mode Input Voltage Range Common-mode continuous −2 +65 V Differential Input Voltage Range Differential input voltage 250 mV Common-Mode Rejection TOPR, f = dc, VCM > 5 V (see Figure 5) 100 120 dB TOPR, f = dc, VCM < 5 V (see Figure 5) 80 90 dB OUTPUT Output Voltage Range Low AD8213Y, AD8213WY 0.1 0.05 V AD8213WH 0.15 V Output Voltage Range High AD8213Y, AD8213WY 4.95 4.9 V AD8213WH 4.88 V Output Impedance 2 Ω FILTER RESISTOR CF access to resistor for low-pass filter 18 20 22 kΩ DYNAMIC RESPONSE Small Signal −3 dB Bandwidth 500 kHz Slew Rate COUT = 20 pF, no filter capacitor (CF) 4.5 V/µs Output capacitance (COUT) = 20 pF, CF = 20 pF 2.7 V/µs NOISE 0.1 Hz to 10 Hz, RTI 7 µV p-p Spectral Density, 1 kHz, RTI 70 nV/√Hz POWER SUPPLY Operating Range 4.5 5.5 V Quiescent Current Over Temperature VCM > 5 V, per amplifier1, total supply current for two channels AD8213Y, AD8213WY 2.5 3.75 mA AD8213WH 4.5 mA Power Supply Rejection Ratio AD8213Y, AD8213WY 76 dB AD8213WH 74 dB TEMPERATURE RANGE For Specified Performance AD8213Y, AD8213WY −40 +125 °C AD8213WH −40 +150 °C 1 When the common-mode input is less than 5 V, the supply current increases, which can be calculated by IS = −0.52 × (VCM) + 4.9 (see Figure 11). Rev. D | Page 3 of 14 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION APPLICATION NOTES OUTPUT LINEARITY LOW-PASS FILTERING APPLICATIONS INFORMATION HIGH-SIDE CURRENT SENSE WITH A LOW-SIDE SWITCH HIGH-SIDE CURRENT SENSING LOW-SIDE CURRENT SENSING BIDIRECTIONAL CURRENT SENSING OUTLINE DIMENSIONS ORDERING GUIDE AUTOMOTIVE PRODUCTS
Data Sheet AD8213 SPECIFICATIONS
TOPR = operating temperature range, VS = 5 V, RL = 25 kΩ (RL is the output load resistor), unless otherwise noted.
Table 1. Parameter Test Conditions/Comments Min Typ Max Unit
