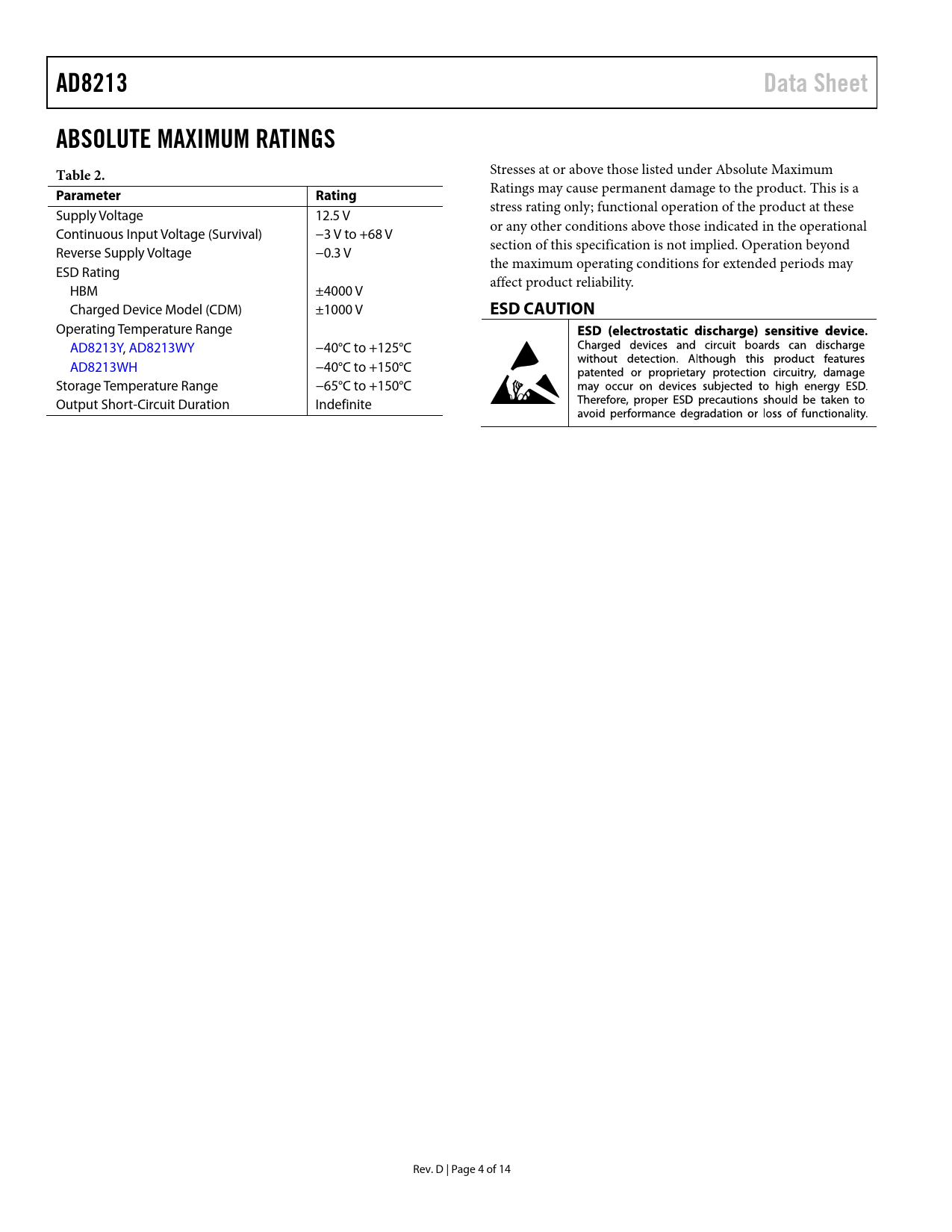

AD8213. Data Sheet. ABSOLUTE MAXIMUM RATINGS. Table 2. Parameter Rating. ESD CAUTION
Model Line for this Datasheet
Text Version of Document
AD8213 Data Sheet ABSOLUTE MAXIMUM RATINGS Table 2.
Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a
Parameter Rating
stress rating only; functional operation of the product at these Supply Voltage 12.5 V or any other conditions above those indicated in the operational Continuous Input Voltage (Survival) −3 V to +68 V section of this specification is not implied. Operation beyond Reverse Supply Voltage −0.3 V the maximum operating conditions for extended periods may ESD Rating affect product reliability. HBM ±4000 V Charged Device Model (CDM) ±1000 V
ESD CAUTION
Operating Temperature Range AD8213Y, AD8213WY −40°C to +125°C AD8213WH −40°C to +150°C Storage Temperature Range −65°C to +150°C Output Short-Circuit Duration Indefinite Rev. D | Page 4 of 14 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION APPLICATION NOTES OUTPUT LINEARITY LOW-PASS FILTERING APPLICATIONS INFORMATION HIGH-SIDE CURRENT SENSE WITH A LOW-SIDE SWITCH HIGH-SIDE CURRENT SENSING LOW-SIDE CURRENT SENSING BIDIRECTIONAL CURRENT SENSING OUTLINE DIMENSIONS ORDERING GUIDE AUTOMOTIVE PRODUCTS
