DA9121. High-Performance, 10 A, Dual-Phase DC-DC Converter. Type. Drive. Reset. Pin No. Pin Name. Description. (Table 2). (mA). State
Model Line for this Datasheet
Text Version of Document
link to page 7

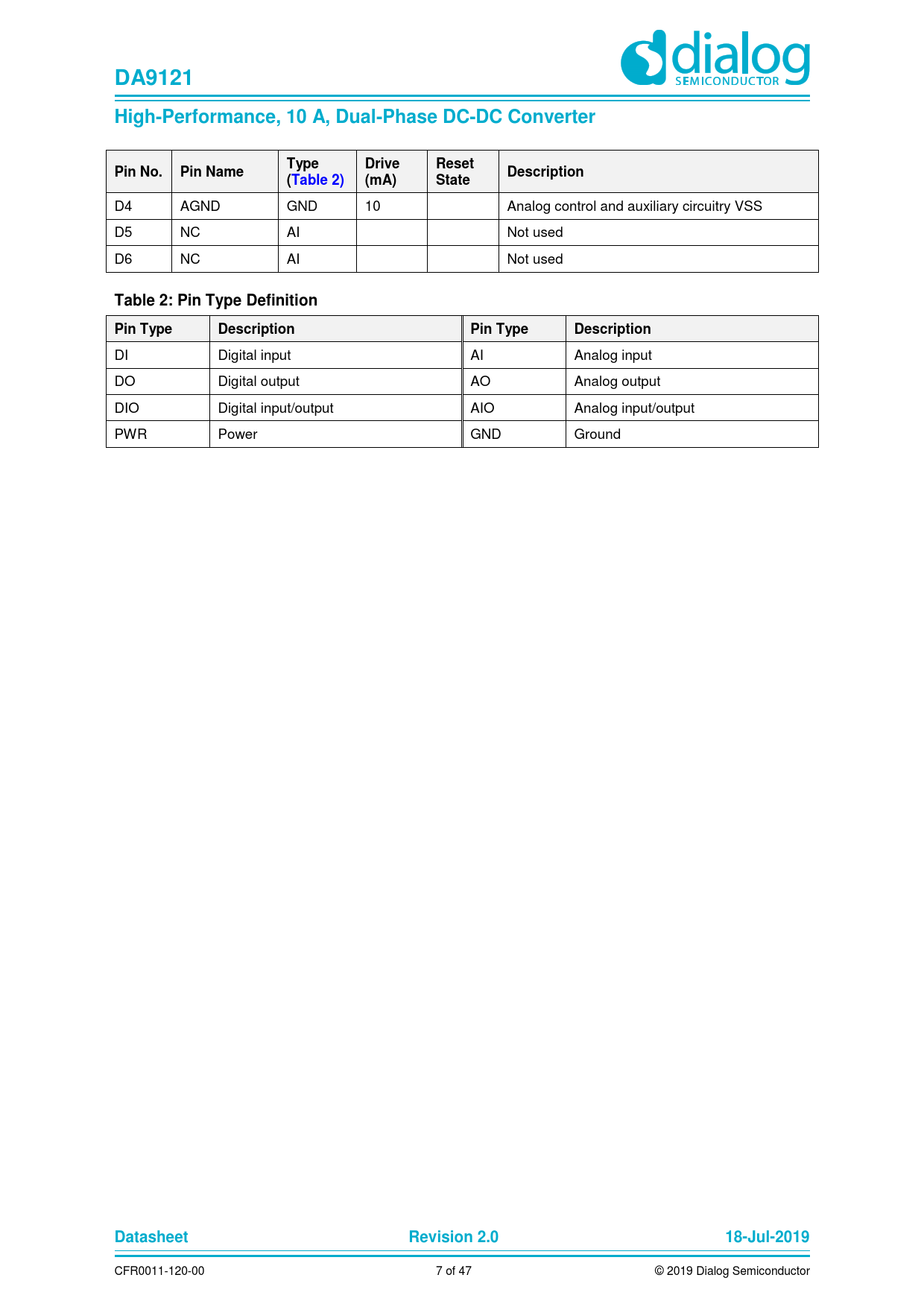

DA9121 High-Performance, 10 A, Dual-Phase DC-DC Converter Type Drive Reset Pin No. Pin Name Description (Table 2) (mA) State
D4 AGND GND 10 Analog control and auxiliary circuitry VSS D5 NC AI Not used D6 NC AI Not used
Table 2: Pin Type Definition Pin Type Description Pin Type Description
DI Digital input AI Analog input DO Digital output AO Analog output DIO Digital input/output AIO Analog input/output PWR Power GND Ground
Datasheet Revision 2.0 18-Jul-2019
