Datasheet ADXL375 (Analog Devices) - 7
| Manufacturer | Analog Devices |
| Description | 3-Axis, ±200 g Digital MEMS Accelerometer |
| Pages / Page | 10 / 7 — 3.00. PIN 1. BSC. CORNER AREA. 0.49. BOTTOM VIEW. 0.813 × 0.50. 5.00. … |
| File Format / Size | PDF / 174 Kb |
| Document Language | English |
3.00. PIN 1. BSC. CORNER AREA. 0.49. BOTTOM VIEW. 0.813 × 0.50. 5.00. 0.80. 0.50. TOP VIEW. 1.01. 0.79. 1.00. 0.74. 1.50. 0.95. END VIEW. 0.85. 0.69. SEATING
Model Line for this Datasheet
Text Version of Document
Case X

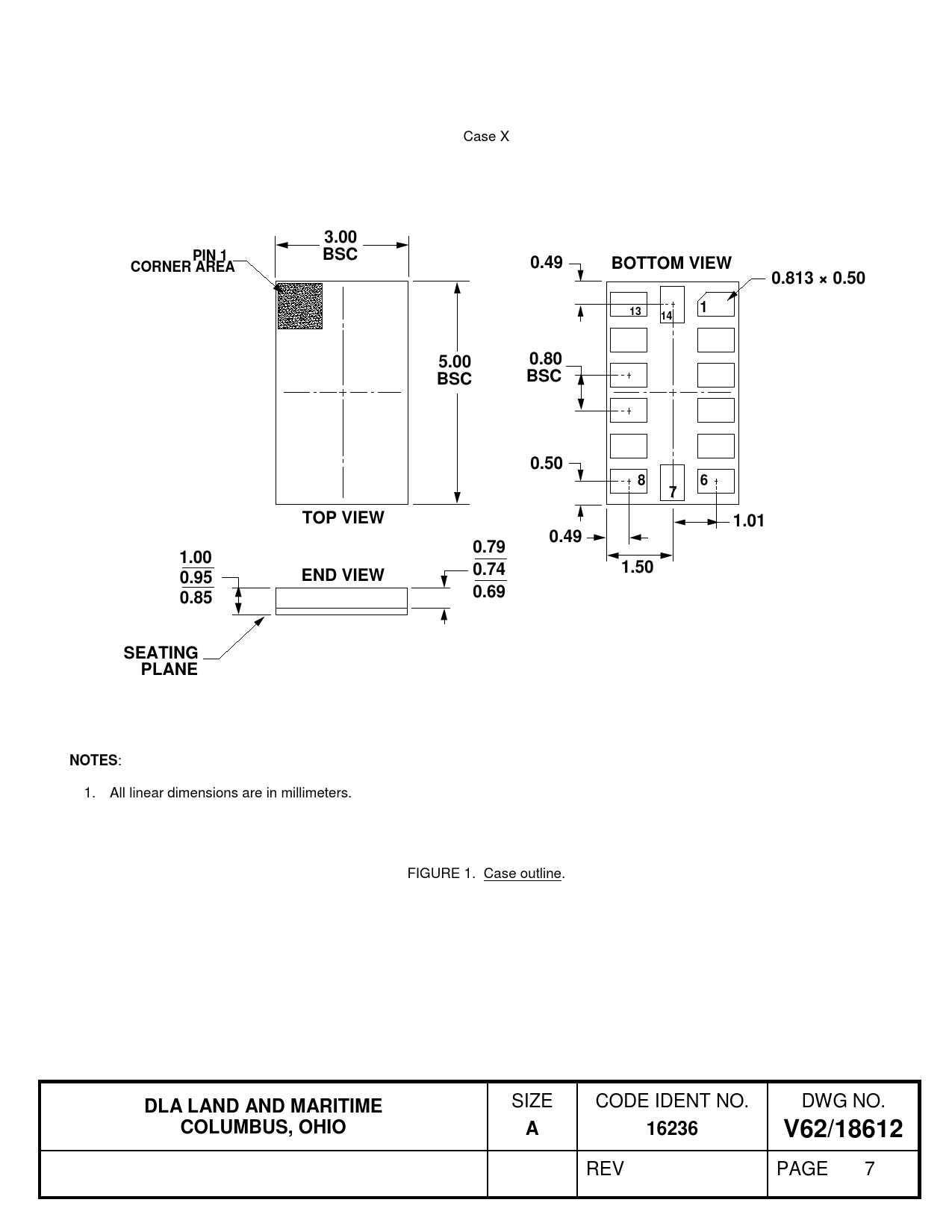

3.00 PIN 1 BSC CORNER AREA 0.49 BOTTOM VIEW 0.813 × 0.50 13 1 14 5.00 0.80 BSC BSC 0.50 8 6 7 TOP VIEW 1.01 0.49 0.79 1.00 0.74 1.50 0.95 END VIEW 0.85 0.69 SEATING PLANE NOTES
: 1. All linear dimensions are in millimeters. FIGURE 1. Case outline.
