| Pages / Page | 24 / 6 — 4. Functional/Operation description. 4-1.Pin interface. TB67S158NG |
| File Format / Size | PDF / 735 Kb |
| Document Language | English |
4. Functional/Operation description. 4-1.Pin interface. TB67S158NG
Model Line for this Datasheet
Text Version of Document
TB67S158NG

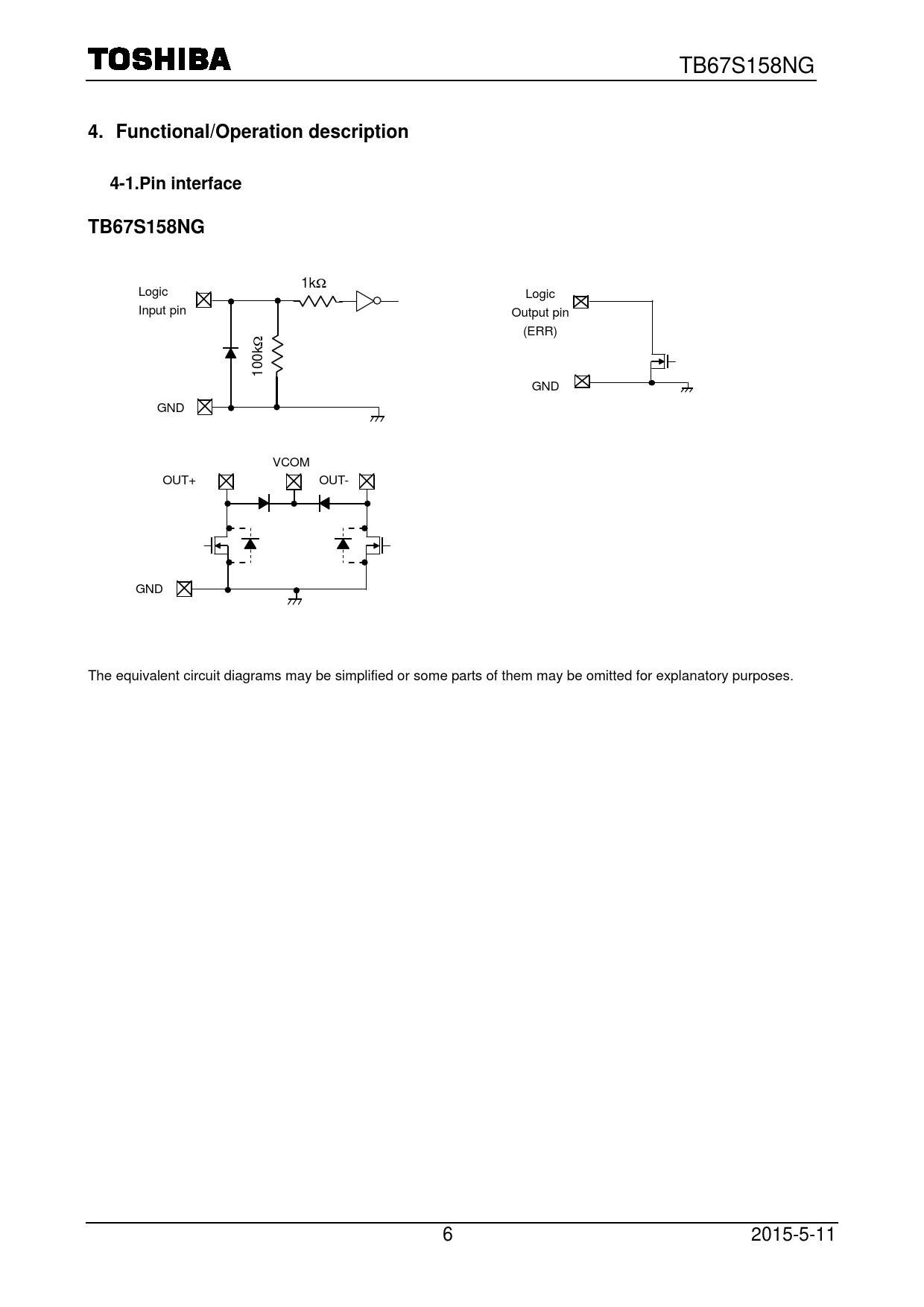

4. Functional/Operation description 4-1.Pin interface TB67S158NG
1kΩ Logic Logic Input pin Output pin (ERR) Ω 100k GND GND VCOM OUT+ OUT- GND The equivalent circuit diagrams may be simplified or some parts of them may be omitted for explanatory purposes. 6 2015-5-11
4. Functional/Operation description 4-1.Pin interface TB67S158NG
1kΩ Logic Logic Input pin Output pin (ERR) Ω 100k GND GND VCOM OUT+ OUT- GND The equivalent circuit diagrams may be simplified or some parts of them may be omitted for explanatory purposes. 6 2015-5-11
