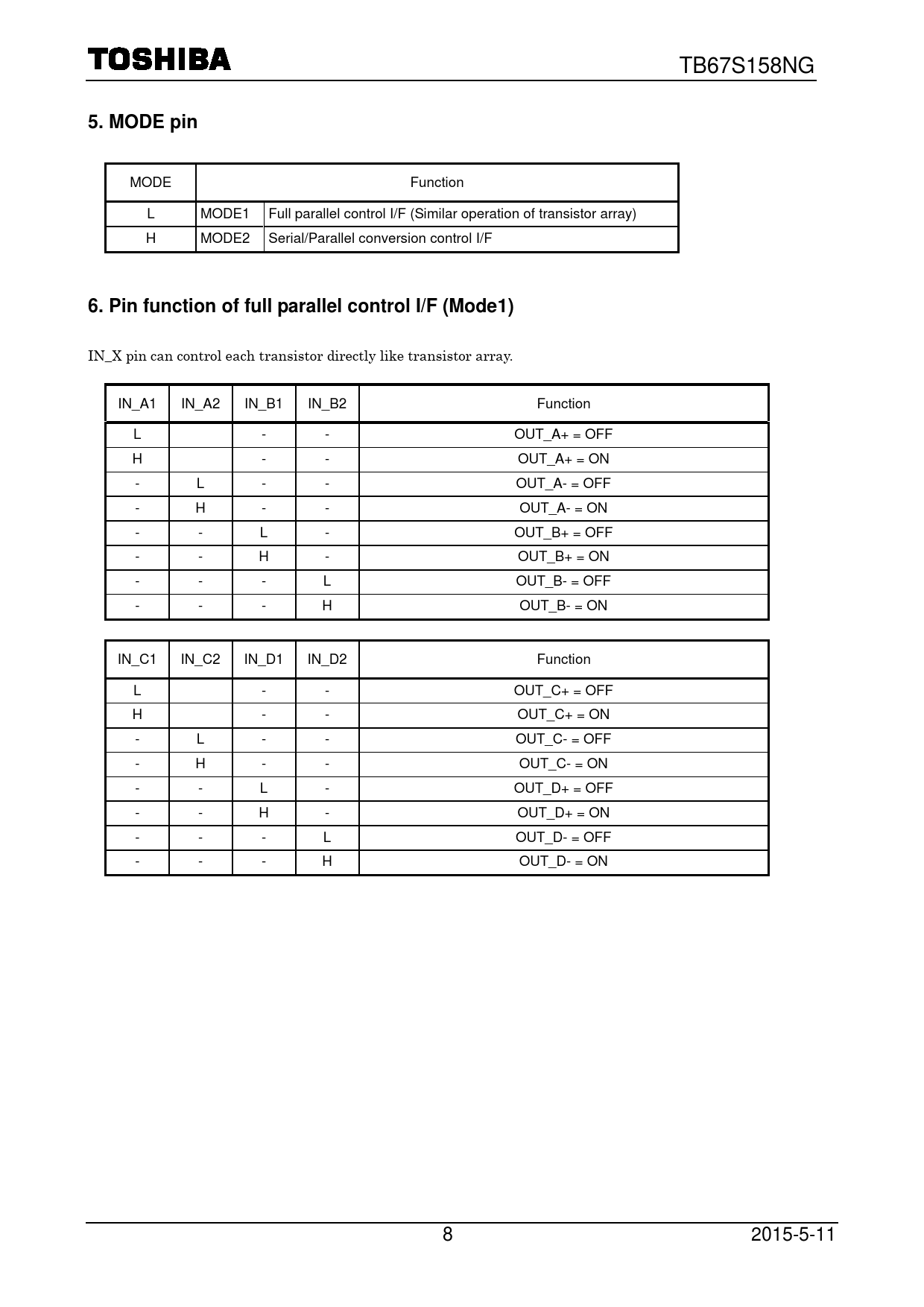

TB67S158NG
5. MODE pin
MODE Function L MODE1 Full parallel control I/F (Similar operation of transistor array) H MODE2 Serial/Parallel conversion control I/F
6. Pin function of full parallel control I/F (Mode1)
IN_X pin can control each transistor directly like transistor array. IN_A1 IN_A2 IN_B1 IN_B2 Function L - - OUT_A+ = OFF H - - OUT_A+ = ON - L - - OUT_A- = OFF - H - - OUT_A- = ON - - L - OUT_B+ = OFF - - H - OUT_B+ = ON - - - L OUT_B- = OFF - - - H OUT_B- = ON IN_C1 IN_C2 IN_D1 IN_D2 Function L - - OUT_C+ = OFF H - - OUT_C+ = ON - L - - OUT_C- = OFF - H - - OUT_C- = ON - - L - OUT_D+ = OFF - - H - OUT_D+ = ON - - - L OUT_D- = OFF - - - H OUT_D- = ON 8 2015-5-11
