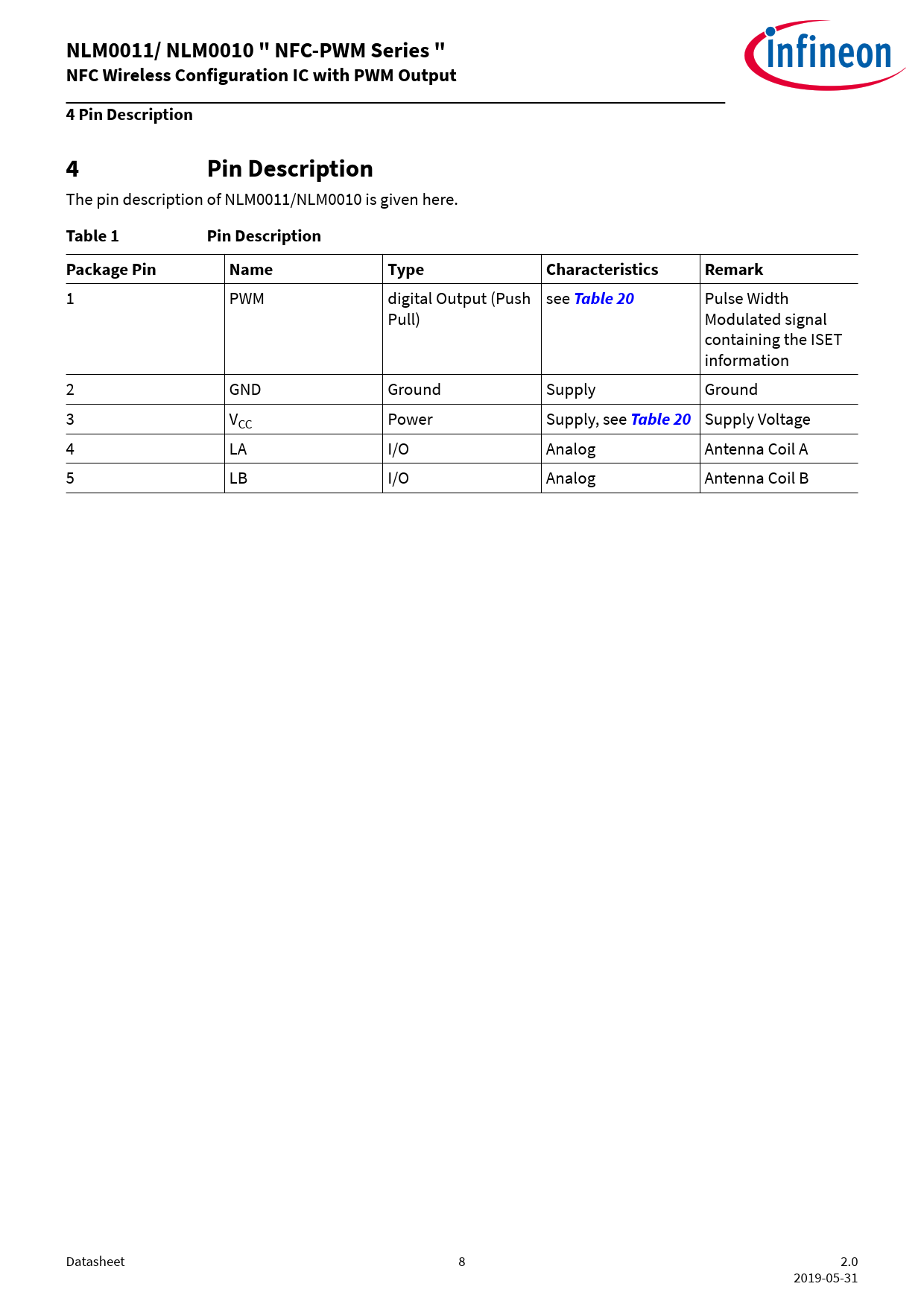

NLM0011/ NLM0010 " NFC-PWM Series " NFC Wireless Configuration IC with PWM Output 4 Pin Description 4 Pin Description
The pin description of NLM0011/NLM0010 is given here.
Table 1 Pin Description Package Pin Name Type Characteristics Remark
1 PWM digital Output (Push see
Table 20
Pulse Width Pull) Modulated signal containing the ISET information 2 GND Ground Supply Ground 3 VCC Power Supply, see
Table 20
Supply Voltage 4 LA I/O Analog Antenna Coil A 5 LB I/O Analog Antenna Coil B Datasheet 8 2.0 2019-05-31 Document Outline Features Description Table of contents 1 General 2 Feature Overview 3 Application Overview 4 Pin Description 5 Functional Description 6 Memory Organization 7 Application and User Memory Access Control 8 NLM0011/NLM0010 EEPROM Shipment Content (Infineon to Customer) 9 Constant Lumen Output (CLO) and Operating Time Counting (OTC) 10 PWM Overview 11 NLM0011/ NLM0010 Command Set 12 NLM0011/ NLM0010 Electrical Characteristics 13 Package Outline Revision history Disclaimer
