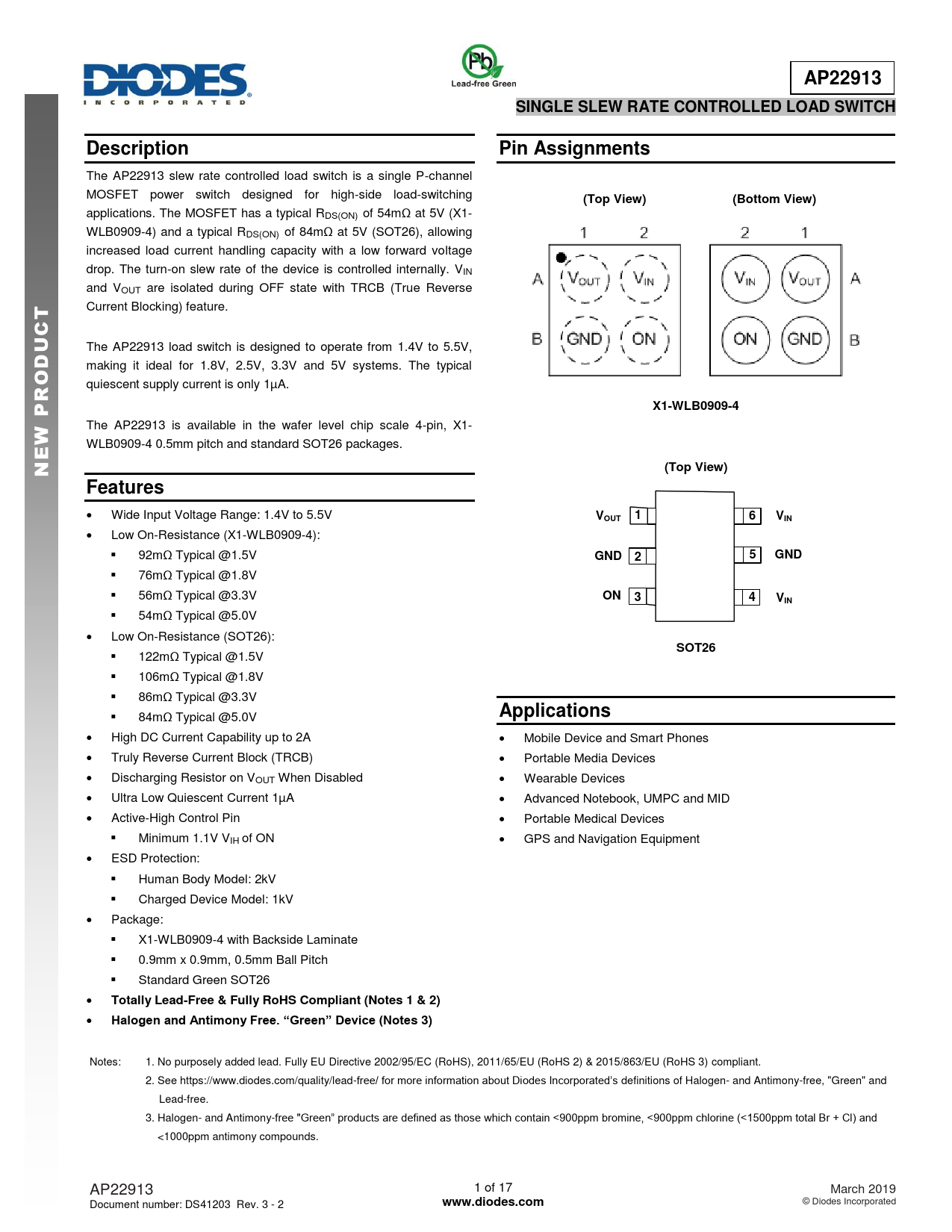

AP22913. SINGLE SLEW RATE CONTROLLED LOAD SWITCH. Description. Pin Assignments. (Top View) (Bottom View). D O. X1-WLB0909-4
Model Line for this Datasheet
Text Version of Document
AP22913 SINGLE SLEW RATE CONTROLLED LOAD SWITCH Description Pin Assignments
The AP22913 slew rate controlled load switch is a single P-channel MOSFET power switch designed for high-side load-switching
(Top View) (Bottom View)
applications. The MOSFET has a typical RDS(ON) of 54mΩ at 5V (X1- WLB0909-4) and a typical RDS(ON) of 84mΩ at 5V (SOT26), allowing increased load current handling capacity with a low forward voltage drop. The turn-on slew rate of the device is controlled internally. VIN and VOUT are isolated during OFF state with TRCB (True Reverse
T
Current Blocking) feature.
C U
The AP22913 load switch is designed to operate from 1.4V to 5.5V,
D O
making it ideal for 1.8V, 2.5V, 3.3V and 5V systems. The typical
R
quiescent supply current is only 1µA.
P X1-WLB0909-4 W
The AP22913 is available in the wafer level chip scale 4-pin, X1-
E
WLB0909-4 0.5mm pitch and standard SOT26 packages.
N (Top View) Features
Wide Input Voltage Range: 1.4V to 5.5V
VOUT 1 6 VIN
Low On-Resistance (X1-WLB0909-4): 92mΩ Typical @1.5V
GND 2 5 GND
76mΩ Typical @1.8V 56mΩ Typical @3.3V
ON 3 4 VIN
54mΩ Typical @5.0V Low On-Resistance (SOT26):
SOT26
122mΩ Typical @1.5V 106mΩ Typical @1.8V 86mΩ Typical @3.3V
Applications
84mΩ Typical @5.0V High DC Current Capability up to 2A Mobile Device and Smart Phones Truly Reverse Current Block (TRCB) Portable Media Devices Discharging Resistor on VOUT When Disabled Wearable Devices Ultra Low Quiescent Current 1µA Advanced Notebook, UMPC and MID Active-High Control Pin Portable Medical Devices Minimum 1.1V VIH of ON GPS and Navigation Equipment ESD Protection: Human Body Model: 2kV Charged Device Model: 1kV Package: X1-WLB0909-4 with Backside Laminate 0.9mm x 0.9mm, 0.5mm Ball Pitch Standard Green SOT26
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Notes 3)
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds. AP22913 1 of 17 March 2019 Document number: DS41203 Rev. 3 - 2
