BCV61 NPN general-purpose double transistors. Rev. 04 — 18 December 2009. Product data sheet. Product profile
Model Line for this Datasheet
Text Version of Document

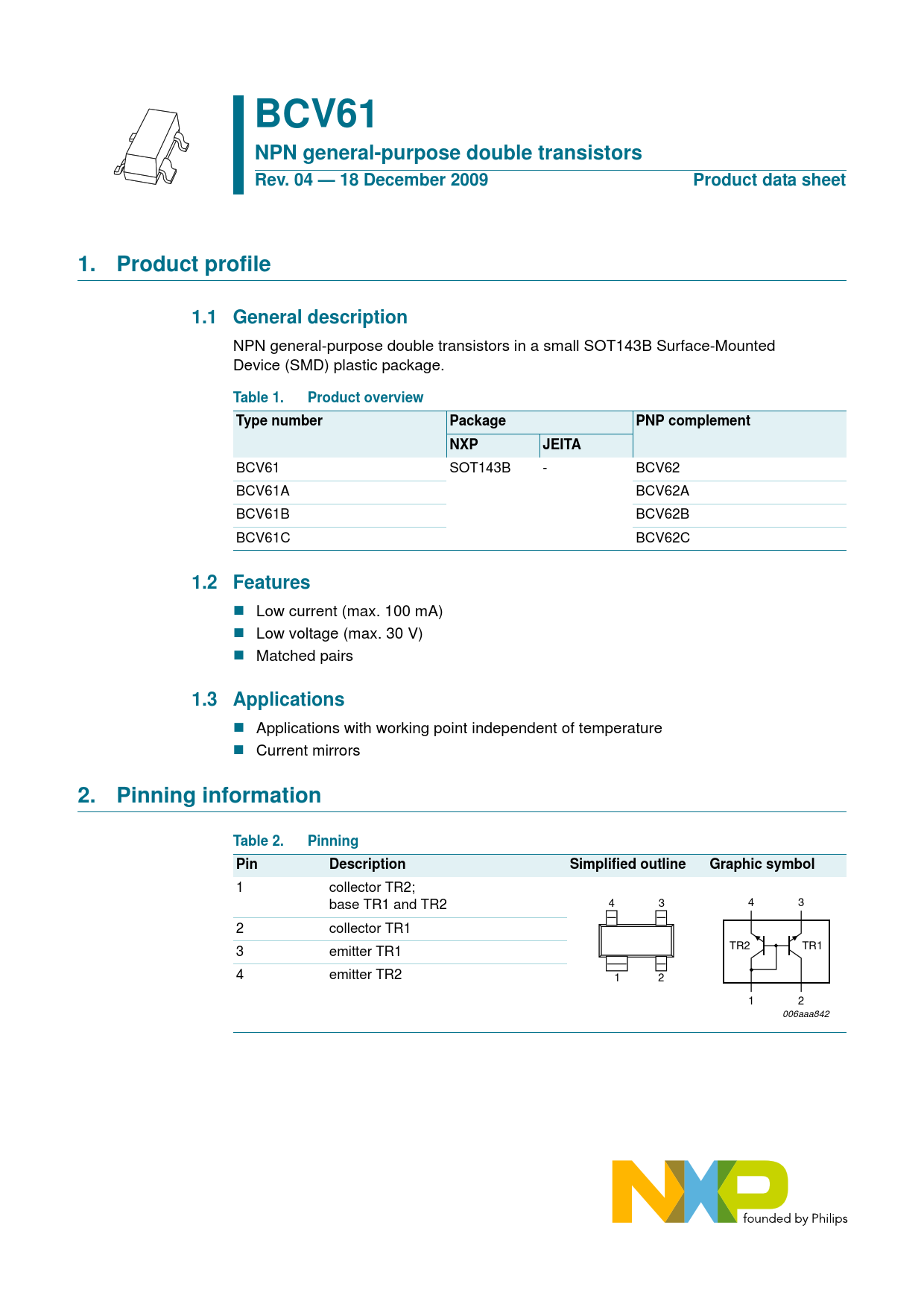

BCV61 NPN general-purpose double transistors Rev. 04 — 18 December 2009 Product data sheet 1. Product profile 1.1 General description
NPN general-purpose double transistors in a small SOT143B Surface-Mounted Device (SMD) plastic package.
Table 1. Product overview Type number Package PNP complement NXP JEITA
BCV61 SOT143B - BCV62 BCV61A BCV62A BCV61B BCV62B BCV61C BCV62C
1.2 Features
Low current (max. 100 mA) Low voltage (max. 30 V) Matched pairs
1.3 Applications
Applications with working point independent of temperature Current mirrors
2. Pinning information Table 2. Pinning Pin Description Simplified outline Graphic symbol
1 collector TR2; base TR1 and TR2 4 3 4 3 2 collector TR1 3 emitter TR1 TR2 TR1 4 emitter TR2 1 2 1 2 006aaa842 Document Outline 1. Product profile 1.1 General description 1.2 Features 1.3 Applications 2. Pinning information 3. Ordering information 4. Marking 5. Limiting values 6. Thermal characteristics 7. Characteristics 8. Test information 9. Package outline 10. Packing information 11. Soldering 12. Revision history 13. Legal information 13.1 Data sheet status 13.2 Definitions 13.3 Disclaimers 13.4 Trademarks 14. Contact information 15. Contents
