Datasheet XD9267, XD9268 (Torex) - 8
| Manufacturer | Torex |
| Description | 36V Operation 600mA Synchronous Step-Down DC/DC Converters |
| Pages / Page | 26 / 8 — XD9267/XD9268. Series |
| File Format / Size | PDF / 916 Kb |
| Document Language | English |
XD9267/XD9268. Series
Model Line for this Datasheet
Text Version of Document
XD9267/XD9268 Series

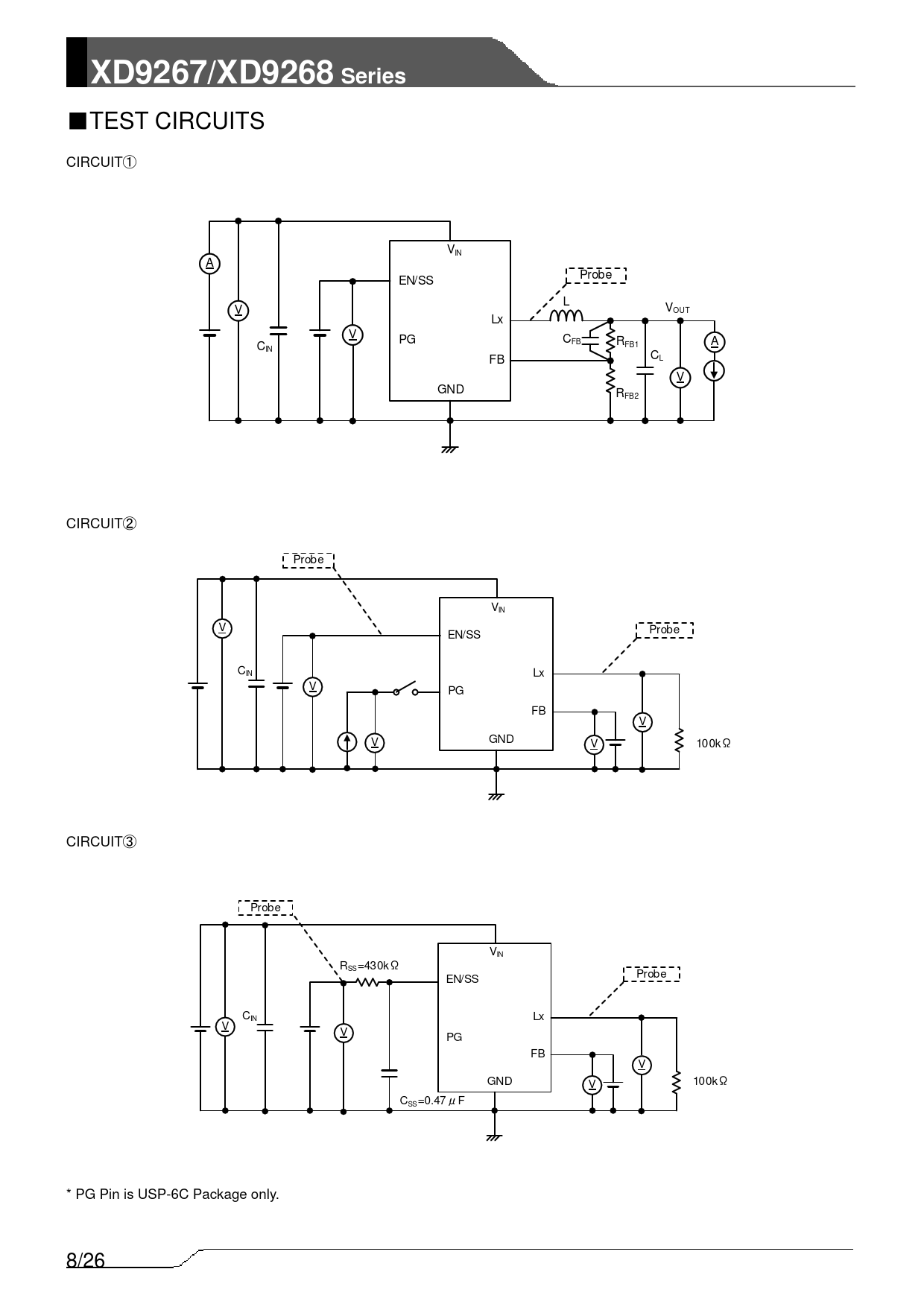

■TEST CIRCUITS CIRCUIT① VIN A EN/SS Probe L V VOUT Lx V PG CFB RFB1 A CIN FB CL V GND RFB2 CIRCUIT② Probe VIN V EN/SS Probe CIN Lx V PG FB V GND V V 100kΩ CIRCUIT③ Probe VIN RSS=430kΩ Probe EN/SS CIN Lx V V PG FB V GND V 100kΩ CSS=0.47μF * PG Pin is USP-6C Package only. 8/26
■TEST CIRCUITS CIRCUIT① VIN A EN/SS Probe L V VOUT Lx V PG CFB RFB1 A CIN FB CL V GND RFB2 CIRCUIT② Probe VIN V EN/SS Probe CIN Lx V PG FB V GND V V 100kΩ CIRCUIT③ Probe VIN RSS=430kΩ Probe EN/SS CIN Lx V V PG FB V GND V 100kΩ CSS=0.47μF * PG Pin is USP-6C Package only. 8/26
