VSMY5890X01
www.vishay.com Vishay Semiconductors

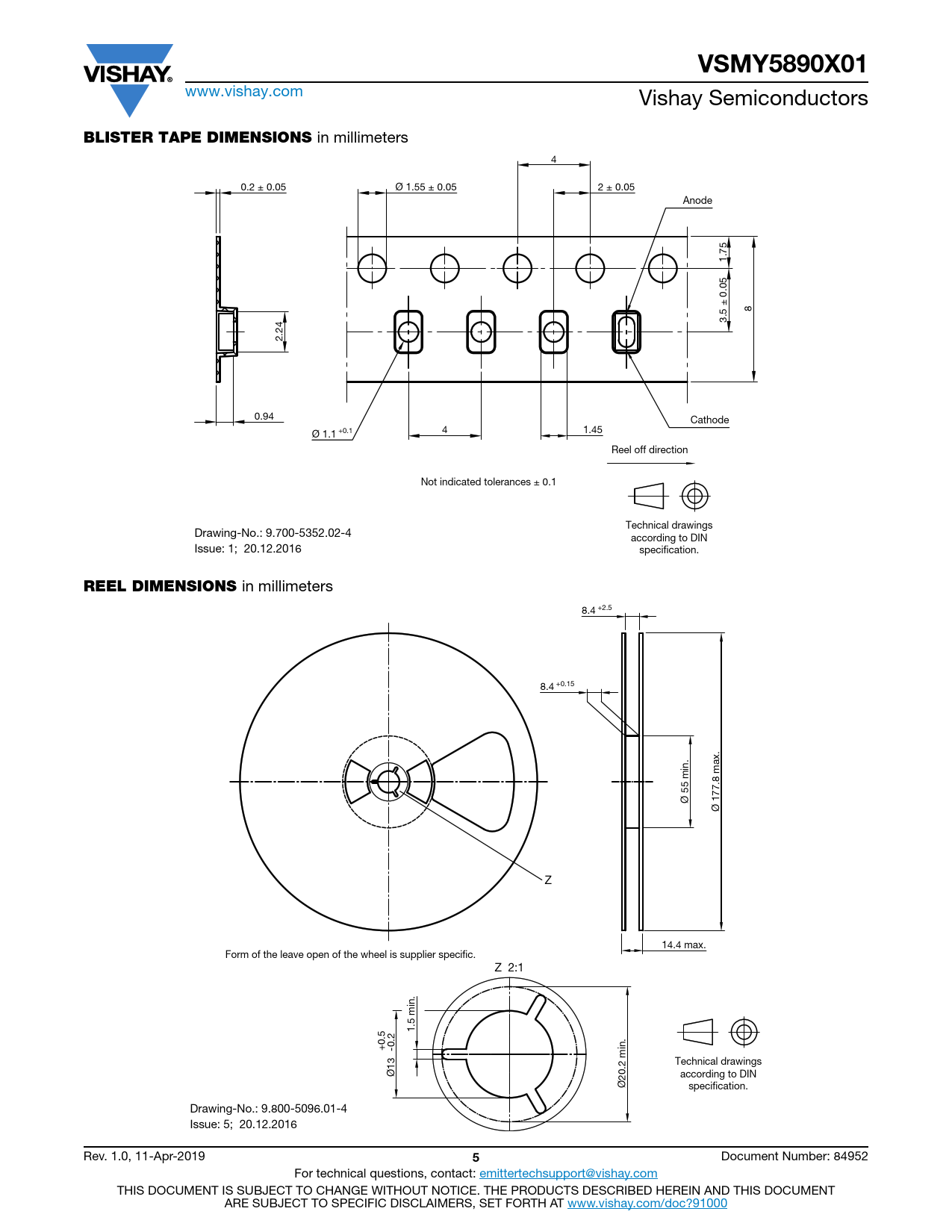

BLISTER TAPE DIMENSIONS
in millimeters 4 0.2 ± 0.05 Ø 1.55 ± 0.05 2 ± 0.05 Anode 1.75 8 3.5 ± 0.05 2.24 0.94 Cathode 4 1.45 Ø 1.1 +0.1 Reel off direction Not indicated tolerances ± 0.1 Technical drawings Drawing-No.: 9.700-5352.02-4 according to DIN Issue: 1; 20.12.2016 specification.
REEL DIMENSIONS
in millimeters 8.4 +2.5 8.4 +0.15 Ø 55 min. Ø 177.8 max. Z 14.4 max. Form of the leave open of the wheel is supplier specific. Z 2:1 1.5 min. +0.5 -0.2 Technical drawings Ø13 according to DIN Ø20.2 min. specification. Drawing-No.: 9.800-5096.01-4 Issue: 5; 20.12.2016 Rev. 1.0, 11-Apr-2019
