link to page 6 link to page 6 TCA0372, TCA0372B, NCV0372B 1.0 A Output Current, Dual Power Operational Amplifiers
http://onsemi.com
The TCA0372 is a monolithic circuit intended for use as a power operational amplifier in a wide range of applications, including servo amplifiers and power supplies. No deadband crossover distortion provides better performance for driving coils.
PDIP−8 DP1 SUFFIX Features CASE 626
8 • Output Current to 1.0 A 1 • Slew Rate of 1.3 V/ms • Wide Bandwidth of 1.1 MHz
PDIP−16
• Internal Thermal Shutdown
DP2 SUFFIX CASE 648
• Single or Split Supply Operation 16 • Excellent Gain and Phase Margins 1 • Common Mode Input Includes Ground •
SOIC−16W
Zero Deadband Crossover Distortion
DW SUFFIX
• NCV devices are AEC−Q100 Qualified and PPAP Capable 16
CASE 751G
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS 1 Compliant
SOEIAJ−16
VCC
DM2 SUFFIX
16
CASE 966
Current 1 Bias Monitoring
ORDERING INFORMATION
See detailed ordering and shipping information in the package Inv. dimensions section on page 6 of this data sheet. Input Output
DEVICE MARKING INFORMATION
See general marking information in the device marking Noninv. section on page 6 of this data sheet. Input Thermal Protection VEE

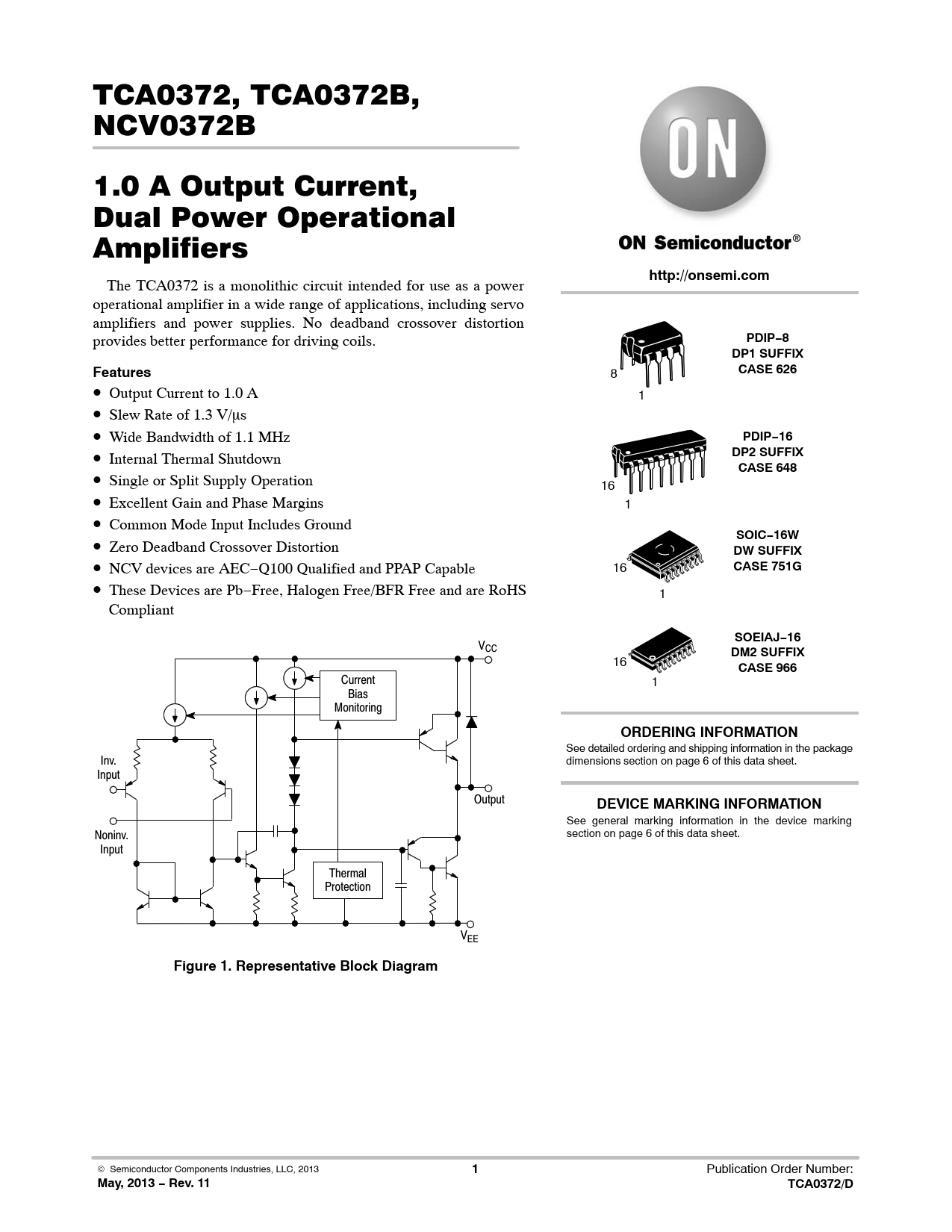

Figure 1. Representative Block Diagram
