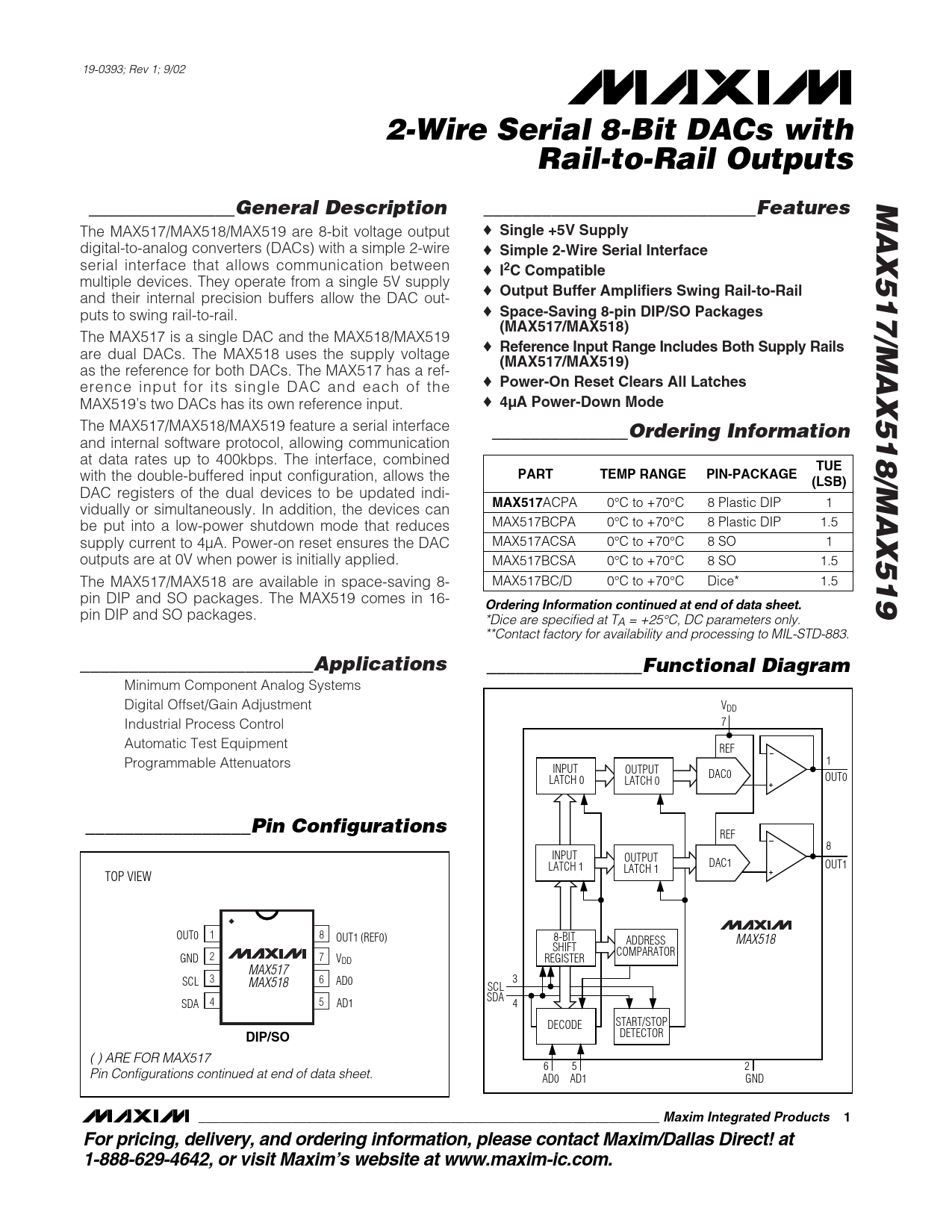

2-Wire Serial 8-Bit DACs with. Rail-to-Rail Outputs. MAX517/MAX518/MAX519. _______________General Description
Model Line for this Datasheet
- MAX517ACPA MAX517ACPA+ MAX517ACSA MAX517ACSA+ MAX517ACSA+T MAX517AEPA MAX517AEPA+ MAX517AESA MAX517AESA+ MAX517AESA+T MAX517BCPA MAX517BCPA+ MAX517BCSA MAX517BCSA+ MAX517BCSA+T MAX517BEPA MAX517BEPA+ MAX517BESA MAX517BESA+ MAX517BESA+T
Text Version of Document
19-0393; Rev 1; 9/02
2-Wire Serial 8-Bit DACs with Rail-to-Rail Outputs MAX517/MAX518/MAX519 _______________General Description ____________________________Features
The MAX517/MAX518/MAX519 are 8-bit voltage output ♦
Single +5V Supply
digital-to-analog converters (DACs) with a simple 2-wire ♦
Simple 2-Wire Serial Interface
serial interface that allows communication between ♦
I2C Compatible
multiple devices. They operate from a single 5V supply ♦
Output Buffer Amplifiers Swing Rail-to-Rail
and their internal precision buffers allow the DAC out- puts to swing rail-to-rail. ♦
Space-Saving 8-pin DIP/SO Packages (MAX517/MAX518)
The MAX517 is a single DAC and the MAX518/MAX519 ♦
Reference Input Range Includes Both Supply Rails
are dual DACs. The MAX518 uses the supply voltage
(MAX517/MAX519)
as the reference for both DACs. The MAX517 has a ref- erence input for its single DAC and each of the ♦
Power-On Reset Clears All Latches
MAX519’s two DACs has its own reference input. ♦
4µA Power-Down Mode
The MAX517/MAX518/MAX519 feature a serial interface
______________Ordering Information
and internal software protocol, allowing communication at data rates up to 400kbps. The interface, combined
TUE
with the double-buffered input configuration, allows the
PART TEMP RANGE PIN-PACKAGE (LSB)
DAC registers of the dual devices to be updated indi-
MAX517
ACPA 0°C to +70°C 8 Plastic DIP 1 vidually or simultaneously. In addition, the devices can be put into a low-power shutdown mode that reduces MAX517BCPA 0°C to +70°C 8 Plastic DIP 1.5 supply current to 4µA. Power-on reset ensures the DAC MAX517ACSA 0°C to +70°C 8 SO 1 outputs are at 0V when power is initially applied. MAX517BCSA 0°C to +70°C 8 SO 1.5 The MAX517/MAX518 are available in space-saving 8- MAX517BC/D 0°C to +70°C Dice* 1.5 pin DIP and SO packages. The MAX519 comes in 16-
Ordering Information continued at end of data sheet.
pin DIP and SO packages. *Dice are specified at TA = +25°C, DC parameters only. **Contact factory for availability and processing to MIL-STD-883.
________________________Applications ________________Functional Diagram
Minimum Component Analog Systems Digital Offset/Gain Adjustment VDD Industrial Process Control 7 Automatic Test Equipment REF Programmable Attenuators 1 INPUT OUTPUT DAC0 LATCH 0 LATCH 0 OUT0
_________________Pin Configurations
REF 8 INPUT OUTPUT LATCH 1 DAC1 OUT1 LATCH 1 TOP VIEW OUT0 1 8 OUT1 (REF0) 8-BIT ADDRESS MAX518 SHIFT COMPARATOR GND 2 7 VDD REGISTER MAX517 3 6 SCL AD0 MAX518 3 SCL 4 5 SDA SDA AD1 4 START/STOP DECODE
DIP/SO
DETECTOR ( ) ARE FOR MAX517 6 5 2 Pin Configurations continued at end of data sheet. AD0 AD1 GND
________________________________________________________________ Maxim Integrated Products 1 For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at 1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com.
