Datasheet 48L256 (Microchip) - 5
| Manufacturer | Microchip |
| Description | 256-Kbit SPI Serial EERAM |
| Pages / Page | 36 / 5 — 48L256. FIGURE 1-1:. HOLD TIMING. FIGURE 1-2:. SERIAL INPUT TIMING MODE … |
| File Format / Size | PDF / 527 Kb |
| Document Language | English |
48L256. FIGURE 1-1:. HOLD TIMING. FIGURE 1-2:. SERIAL INPUT TIMING MODE 0,0. FIGURE 1-3:. SERIAL INPUT TIMING MODE 1,1. Preliminary
Model Line for this Datasheet
Text Version of Document

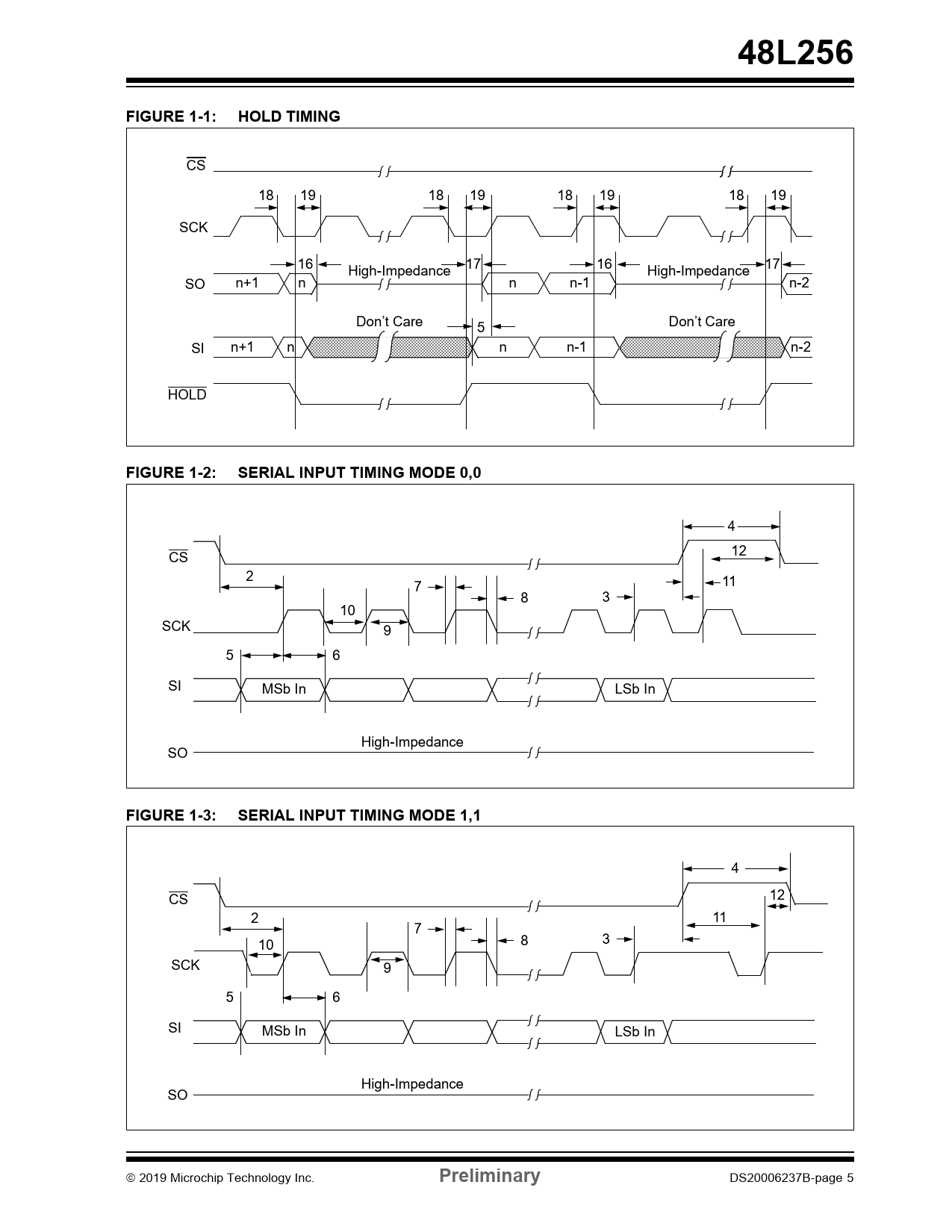

48L256 FIGURE 1-1: HOLD TIMING
CS 18 19 18 19 18 19 18 19 SCK 16 17 High-Impedance 16 17 High-Impedance SO n+1 n n n-1 n-2 Don’t Care 5 Don’t Care SI n+1 n n n-1 n-2 HOLD
FIGURE 1-2: SERIAL INPUT TIMING MODE 0,0
4 CS 12 2 7 11 8 3 10 SCK 9 5 6 SI MSb In LSb In High-Impedance SO
FIGURE 1-3: SERIAL INPUT TIMING MODE 1,1
4 CS 12 2 11 7 8 3 10 SCK 9 5 6 SI MSb In LSb In High-Impedance SO 2019 Microchip Technology Inc.
Preliminary
