Datasheet RV1S9213A (Renesas) - 4
| Manufacturer | Renesas |
| Description | 1 Mbps, OPEN COLLECTOR OUTPUT, HIGH CMR, IPM DRIVER, 5-PIN SSOP WITH 8.2mm CREEPAGE DISTANCE (LSSO5) PHOTOCOUPLER |
| Pages / Page | 16 / 4 — RV1S9213A. 章題. ABSOLUTELY. MAXIMUM. RATINGS. (TA. =25°C,. unless. … |
| File Format / Size | PDF / 6.6 Mb |
| Document Language | English |

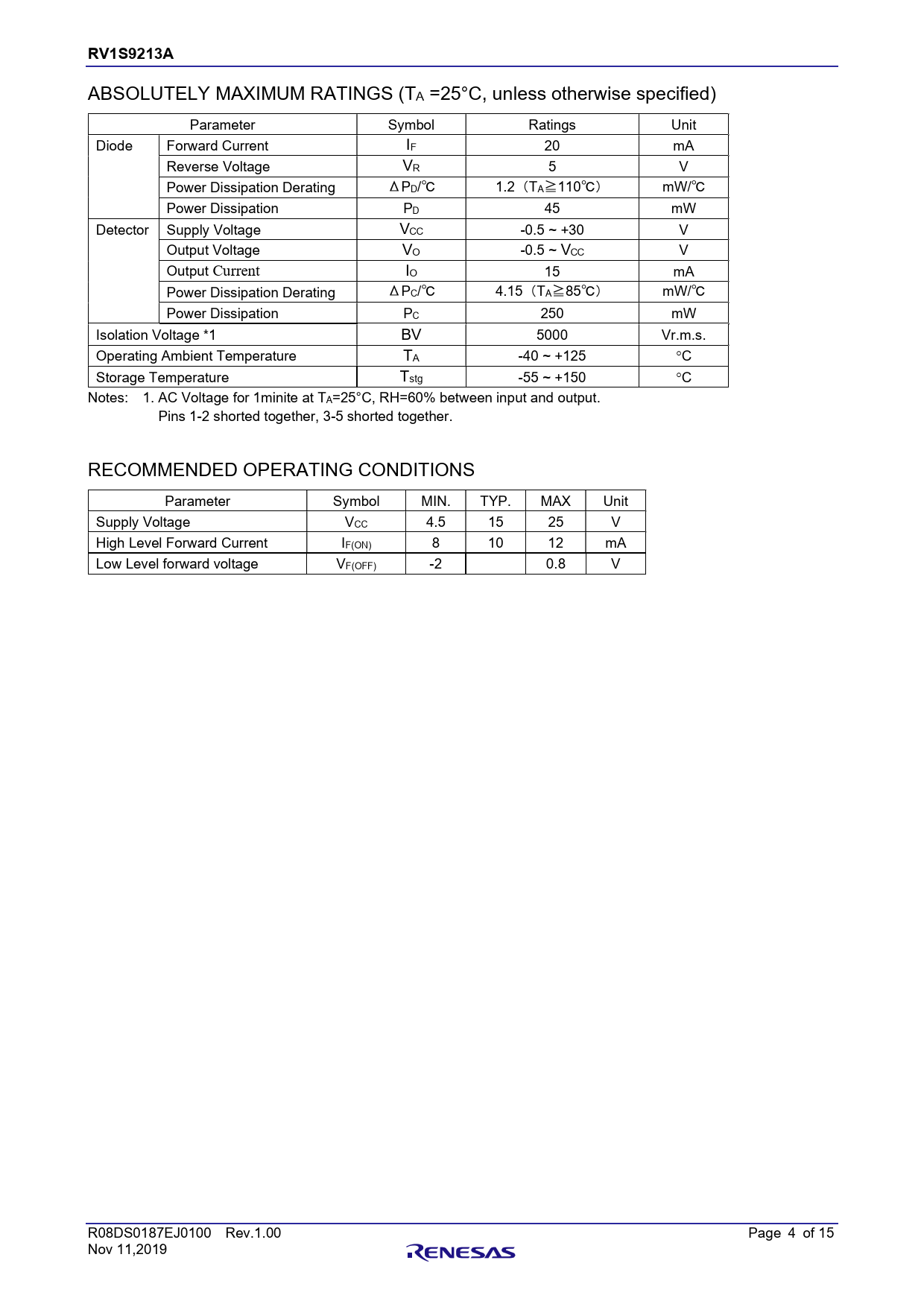

RV1S9213A. 章題. ABSOLUTELY. MAXIMUM. RATINGS. (TA. =25°C,. unless. otherwise. specified). Parameter. Symbol. Ratings. Unit. Diode. Forward. Current. IF. 20
Model Line for this Datasheet
Text Version of Document
RV1S9213A 章題 ABSOLUTELY MAXIMUM RATINGS (TA =25°C, unless otherwise specified) Parameter Symbol Ratings Unit Diode Forward Current IF 20 mA Reverse Voltage VR 5 V Power Dissipation Derating ΔPD/℃ 1.2（TA≧110℃） mW/℃ Power Dissipation PD 45 mW Detector Supply Voltage VCC -0.5 ~ +30 V Output Voltage VO -0.5 ~ VCC V Output Current IO 15 mA Power Dissipation Derating ΔPC/℃ 4.15（TA≧85℃） mW/℃ Power Dissipation PC 250 mW Isolation Voltage *1 BV 5000 Vr.m.s. Operating Ambient Temperature TA -40 ~ +125 C Storage Temperature Tstg -55 ~ +150 C Notes: 1. AC Voltage for 1minite at TA=25°C, RH=60% between input and output. Pins 1-2 shorted together, 3-5 shorted together. RECOMMENDED OPERATING CONDITIONS Parameter Symbol MIN. TYP. MAX Unit Supply Voltage VCC 4.5 15 25 V High Level Forward Current IF(ON) 8 10 12 mA Low Level forward voltage VF(OFF) -2 0.8 V R08DS0187EJ0100 Rev.1.00 Page 4 of 15 Nov 11,2019
