Product Brief MLX81113 (Melexis) - 2
| Manufacturer | Melexis |
| Description | LIN RGB LED controller |
| Pages / Page | 2 / 2 — EASY APPLICATION CONFIGURATION. LC0. LC3. LC1. MLX81113. LIN_IN. LIN_OUT. … |
| File Format / Size | PDF / 465 Kb |
| Document Language | English |

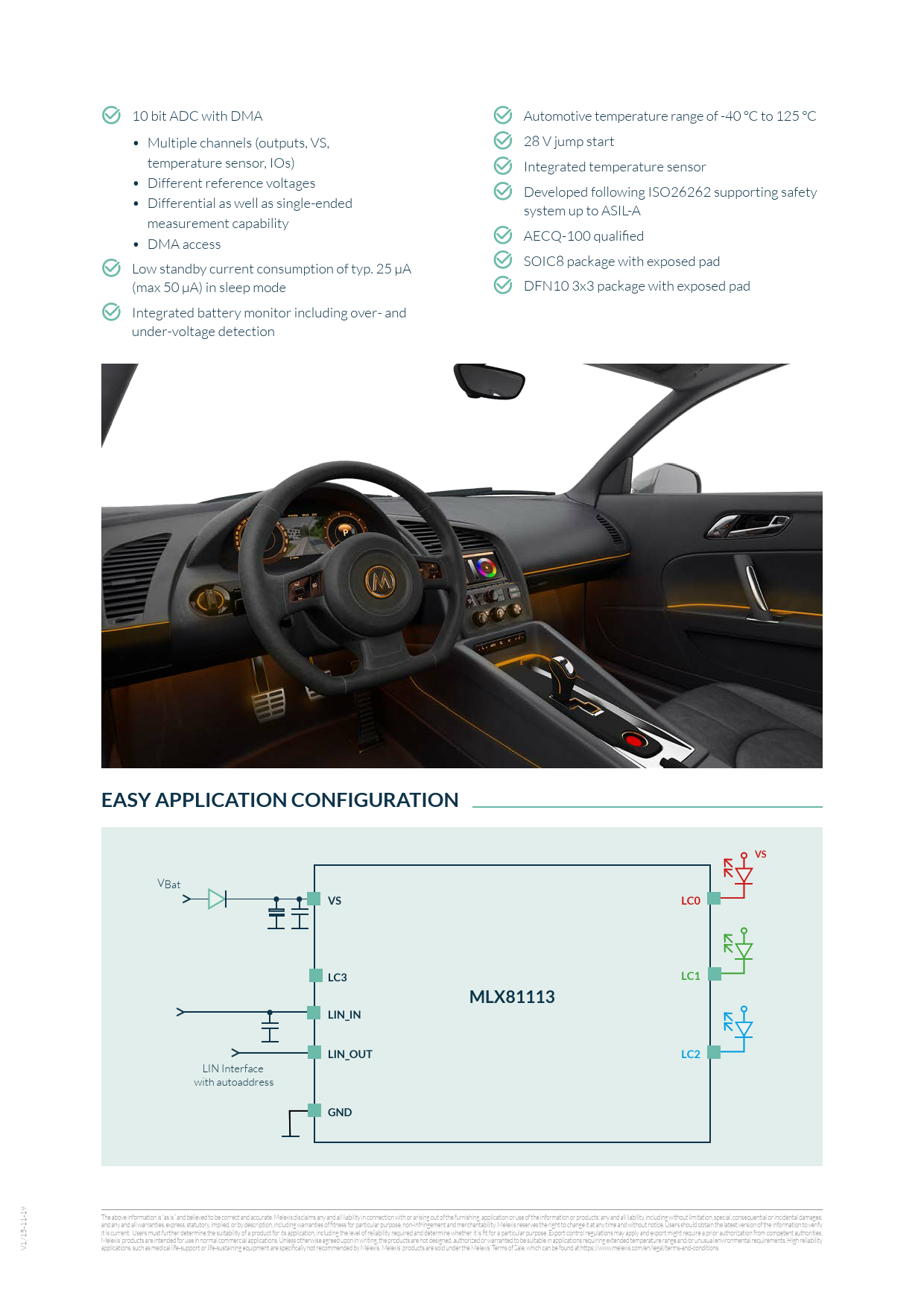

EASY APPLICATION CONFIGURATION. LC0. LC3. LC1. MLX81113. LIN_IN. LIN_OUT. LC2. GND
Model Line for this Datasheet
Text Version of Document
k 10 bit ADC with DMA k Automotive temperature range of -40 °C to 125 °C • Multiple channels (outputs, VS, k 28 V jump start temperature sensor, IOs) k Integrated temperature sensor • Different reference voltages k Developed following ISO26262 supporting safety • Differential as well as single-ended system up to ASIL-A measurement capability k AECQ-100 qualified • DMA access k k SOIC8 package with exposed pad Low standby current consumption of typ. 25 μA (max 50 μA) in sleep mode k DFN10 3x3 package with exposed pad k Integrated battery monitor including over- and under-voltage detection
EASY APPLICATION CONFIGURATION VS
VBat
VS LC0 LC3 LC1 MLX81113 LIN_IN LIN_OUT LC2
LIN Interface with autoaddress
GND
