| Manufacturer | Analog Devices |
| Description | Single-Supply Sensor Interface Amplifier |
| Pages / Page | 9 / 9 — Data Sheet. AD22057. OUTLINE DIMENSIONS. 5.00 (0.1968) 4.80 (0.1890). … |
| Revision | B |
| File Format / Size | PDF / 164 Kb |
| Document Language | English |

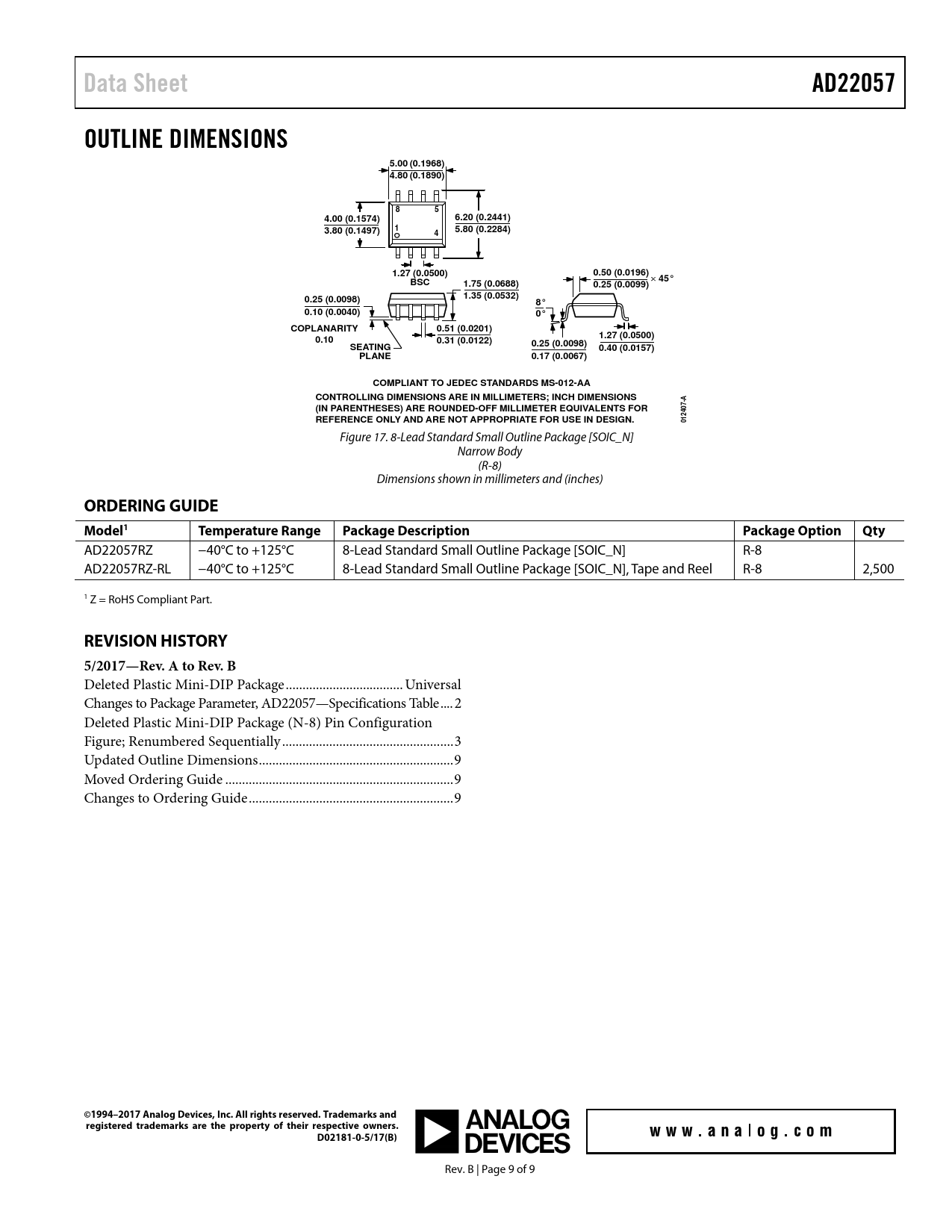

Data Sheet. AD22057. OUTLINE DIMENSIONS. 5.00 (0.1968) 4.80 (0.1890). 4.00 (0.1574). 6.20 (0.2441). 3.80 (0.1497). 5.80 (0.2284)
Model Line for this Datasheet
Text Version of Document
Data Sheet AD22057 OUTLINE DIMENSIONS 5.00 (0.1968) 4.80 (0.1890) 8 5 4.00 (0.1574) 6.20 (0.2441) 1 3.80 (0.1497) 5.80 (0.2284) 4 1.27 (0.0500) 0.50 (0.0196) 45° BSC 1.75 (0.0688) 0.25 (0.0099) 1.35 (0.0532) 0.25 (0.0098) 8° 0.10 (0.0040) 0° COPLANARITY 0.51 (0.0201) 1.27 (0.0500) 0.10 0.31 (0.0122) 0.25 (0.0098) SEATING 0.40 (0.0157) PLANE 0.17 (0.0067) COMPLIANT TO JEDEC STANDARDS MS-012-AA CONTROLLING DIMENSIONS ARE IN MILLIMETERS; INCH DIMENSIONS -A (IN PARENTHESES) ARE ROUNDED-OFF MILLIMETER EQUIVALENTS FOR 2407 REFERENCE ONLY AND ARE NOT APPROPRIATE FOR USE IN DESIGN. 01
Figure 17. 8-Lead Standard Small Outline Package [SOIC_N] Narrow Body (R-8) Dimensions shown in millimeters and (inches)
ORDERING GUIDE Model1 Temperature Range Package Description Package Option Qty
AD22057RZ −40°C to +125°C 8-Lead Standard Small Outline Package [SOIC_N] R-8 AD22057RZ-RL −40°C to +125°C 8-Lead Standard Small Outline Package [SOIC_N], Tape and Reel R-8 2,500 1 Z = RoHS Compliant Part.
REVISION HISTORY 5/2017—Rev. A to Rev. B
Deleted Plastic Mini-DIP Package ... Universal Changes to Package Parameter, AD22057—Specifications Table .. 2 Deleted Plastic Mini-DIP Package (N-8) Pin Configuration Figure; Renumbered Sequentially ... 3 Updated Outline Dimensions .. 9 Moved Ordering Guide .. 9 Changes to Ordering Guide ... 9
