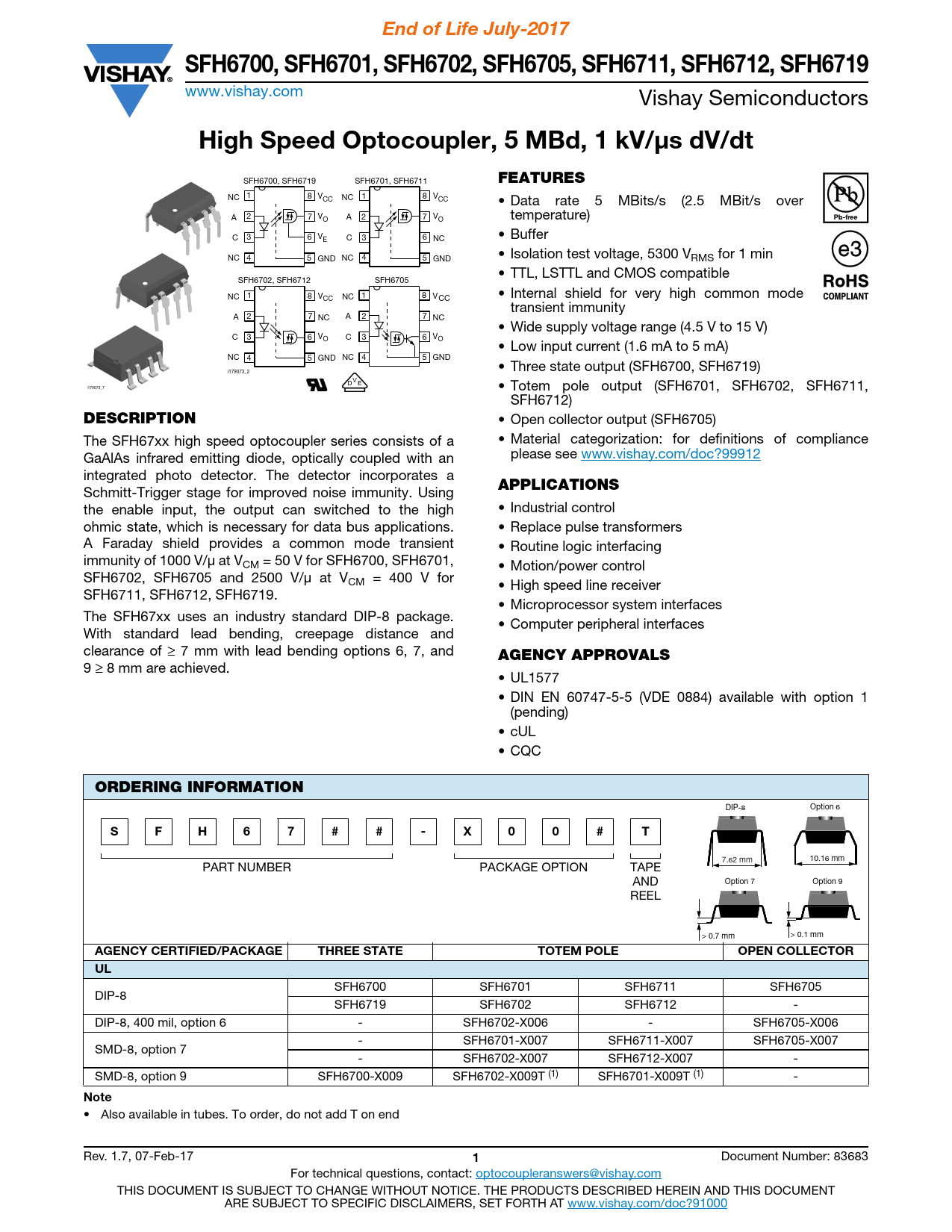

End of Life July-2017 SFH6700, SFH6701, SFH6702, SFH6705, SFH6711, SFH6712, SFH6719
www.vishay.com Vishay Semiconductors
High Speed Optocoupler, 5 MBd, 1 kV/μs dV/dt
SFH6700, SFH6719 SFH6701, SFH6711
FEATURES
1 8 NC VCC 1 8 NC VCC • Data rate 5 MBits/s (2.5 MBit/s over A 2 7 VO A 2 7 VO temperature) C 3 6 VE C 3 6 NC • Buffer NC 4 5 GND NC 4 5 GND • Isolation test voltage, 5300 VRMS for 1 min • TTL, LSTTL and CMOS compatible SFH6702, SFH6712 SFH6705 1 NC 8 VCC NC 1 8 V • Internal shield for very high common mode CC transient immunity A 2 7 NC A 2 7 NC • Wide supply voltage range (4.5 V to 15 V) C 3 6 V C 3 6 V O O • Low input current (1.6 mA to 5 mA) NC 4 5 GND NC 4 5 GND i179073_2 • Three state output (SFH6700, SFH6719) V D E i179073_7 • Totem pole output (SFH6701, SFH6702, SFH6711, SFH6712)
DESCRIPTION
• Open collector output (SFH6705) The SFH67xx high speed optocoupler series consists of a • Material categorization: for definitions of compliance GaAlAs infrared emitting diode, optically coupled with an please see www.vishay.com/doc?99912 integrated photo detector. The detector incorporates a
APPLICATIONS
Schmitt-Trigger stage for improved noise immunity. Using the enable input, the output can switched to the high • Industrial control ohmic state, which is necessary for data bus applications. • Replace pulse transformers A Faraday shield provides a common mode transient • Routine logic interfacing immunity of 1000 V/μ at VCM = 50 V for SFH6700, SFH6701, • Motion/power control SFH6702, SFH6705 and 2500 V/μ at VCM = 400 V for • High speed line receiver SFH6711, SFH6712, SFH6719. • Microprocessor system interfaces The SFH67xx uses an industry standard DIP-8 package. • Computer peripheral interfaces With standard lead bending, creepage distance and clearance of ≥ 7 mm with lead bending options 6, 7, and
AGENCY APPROVALS
9 ≥ 8 mm are achieved. • UL1577 • DIN EN 60747-5-5 (VDE 0884) available with option 1 (pending) • cUL • CQC
ORDERING INFORMATION
DIP-8 Option 6
S F H 6 7 # # - X 0 0 # T
10.16 mm 7.62 mm PART NUMBER PACKAGE OPTION TAPE AND Option 7 Option 9 REEL > 0.7 mm > 0.1 mm
AGENCY CERTIFIED/PACKAGE THREE STATE TOTEM POLE OPEN COLLECTOR UL
SFH6700 SFH6701 SFH6711 SFH6705 DIP-8 SFH6719 SFH6702 SFH6712 - DIP-8, 400 mil, option 6 - SFH6702-X006 - SFH6705-X006 - SFH6701-X007 SFH6711-X007 SFH6705-X007 SMD-8, option 7 - SFH6702-X007 SFH6712-X007 - SMD-8, option 9 SFH6700-X009 SFH6702-X009T (1) SFH6701-X009T (1) -
Note
• Also available in tubes. To order, do not add T on end Rev. 1.7, 07-Feb-17
