Datasheet SFH6700, SFH6701, SFH6702, SFH6705, SFH6711, SFH6712, SFH6719 (Vishay) - 3
| Manufacturer | Vishay |
| Description | High Speed Optocoupler, 5 MBd, 1 kV/µs dV/dt |
| Pages / Page | 16 / 3 — End of Life July-2017. SFH6700, SFH6701, SFH6702, SFH6705, SFH6711, … |
| File Format / Size | PDF / 307 Kb |
| Document Language | English |
End of Life July-2017. SFH6700, SFH6701, SFH6702, SFH6705, SFH6711, SFH6712, SFH6719
Model Line for this Datasheet
Text Version of Document
End of Life July-2017 SFH6700, SFH6701, SFH6702, SFH6705, SFH6711, SFH6712, SFH6719

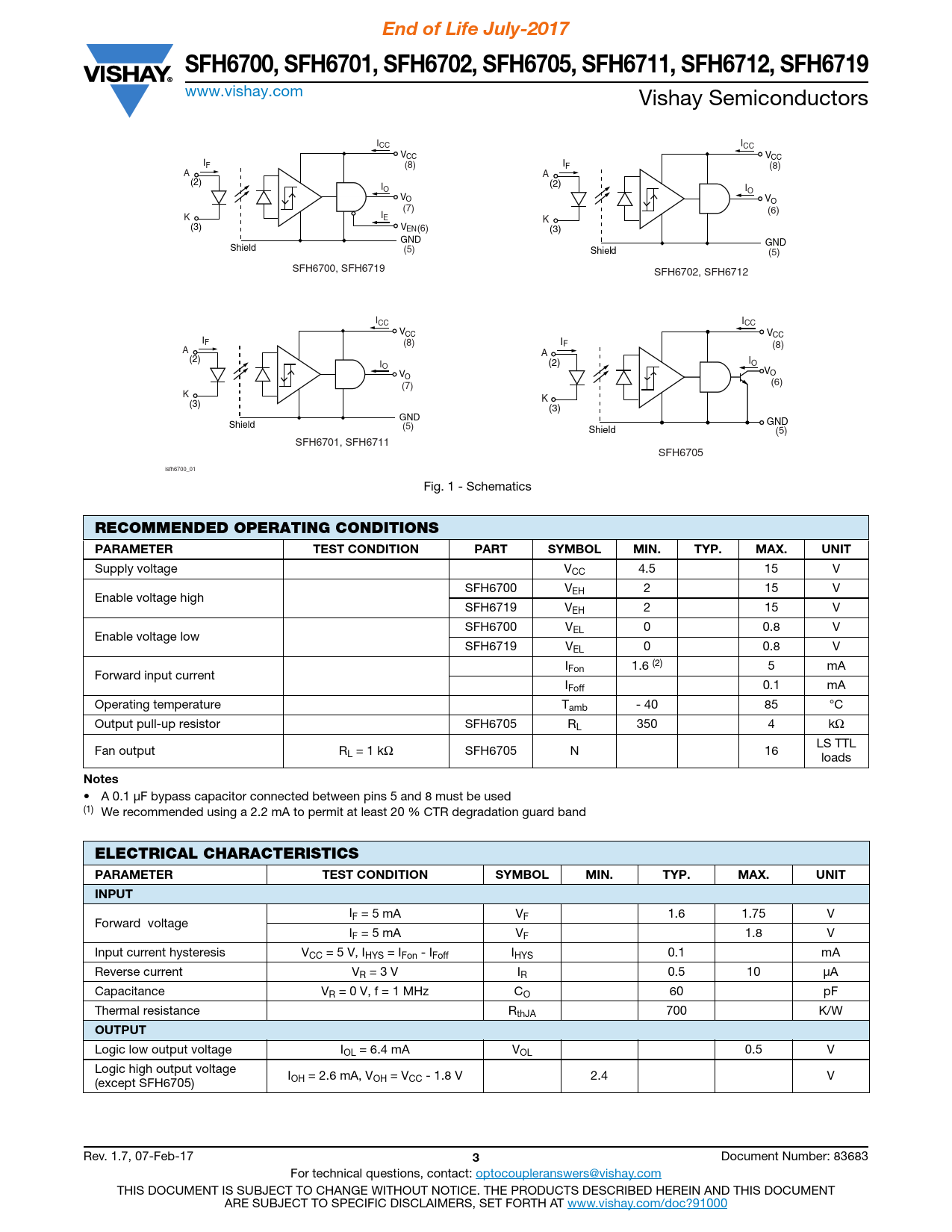

www.vishay.com Vishay Semiconductors ICC ICC VCC VCC IF (8) IF (8) A A (2) I (2) O IO VO VO (7) (6) I K E K (3) VEN(6) (3) GND GND Shield (5) Shield (5) SFH6700, SFH6719 SFH6702, SFH6712 ICC ICC VCC VCC IF (8) IF (8) A A (2) I I (2) O O VO VO (6) (7) K K (3) (3) GND GND Shield (5) Shield (5) SFH6701, SFH6711 SFH6705 isfh6700_01 Fig. 1 - Schematics
RECOMMENDED OPERATING CONDITIONS PARAMETER TEST CONDITION PART SYMBOL MIN. TYP. MAX. UNIT
Supply voltage VCC 4.5 15 V SFH6700 VEH 2 15 V Enable voltage high SFH6719 VEH 2 15 V SFH6700 VEL 0 0.8 V Enable voltage low SFH6719 VEL 0 0.8 V IFon 1.6 (2) 5 mA Forward input current IFoff 0.1 mA Operating temperature Tamb - 40 85 °C Output pull-up resistor SFH6705 RL 350 4 kΩ LS TTL Fan output RL = 1 kΩ SFH6705 N 16 loads
Notes
• A 0.1 μF bypass capacitor connected between pins 5 and 8 must be used (1) We recommended using a 2.2 mA to permit at least 20 % CTR degradation guard band
ELECTRICAL CHARACTERISTICS PARAMETER TEST CONDITION SYMBOL MIN. TYP. MAX. UNIT INPUT
IF = 5 mA VF 1.6 1.75 V Forward voltage IF = 5 mA VF 1.8 V Input current hysteresis VCC = 5 V, IHYS = IFon - IFoff IHYS 0.1 mA Reverse current VR = 3 V IR 0.5 10 μA Capacitance VR = 0 V, f = 1 MHz CO 60 pF Thermal resistance RthJA 700 K/W
OUTPUT
Logic low output voltage IOL = 6.4 mA VOL 0.5 V Logic high output voltage I (except SFH6705) OH = 2.6 mA, VOH = VCC - 1.8 V 2.4 V Rev. 1.7, 07-Feb-17
3
Document Number: 83683 For technical questions, contact: optocoupleranswers@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
www.vishay.com Vishay Semiconductors ICC ICC VCC VCC IF (8) IF (8) A A (2) I (2) O IO VO VO (7) (6) I K E K (3) VEN(6) (3) GND GND Shield (5) Shield (5) SFH6700, SFH6719 SFH6702, SFH6712 ICC ICC VCC VCC IF (8) IF (8) A A (2) I I (2) O O VO VO (6) (7) K K (3) (3) GND GND Shield (5) Shield (5) SFH6701, SFH6711 SFH6705 isfh6700_01 Fig. 1 - Schematics
RECOMMENDED OPERATING CONDITIONS PARAMETER TEST CONDITION PART SYMBOL MIN. TYP. MAX. UNIT
Supply voltage VCC 4.5 15 V SFH6700 VEH 2 15 V Enable voltage high SFH6719 VEH 2 15 V SFH6700 VEL 0 0.8 V Enable voltage low SFH6719 VEL 0 0.8 V IFon 1.6 (2) 5 mA Forward input current IFoff 0.1 mA Operating temperature Tamb - 40 85 °C Output pull-up resistor SFH6705 RL 350 4 kΩ LS TTL Fan output RL = 1 kΩ SFH6705 N 16 loads
Notes
• A 0.1 μF bypass capacitor connected between pins 5 and 8 must be used (1) We recommended using a 2.2 mA to permit at least 20 % CTR degradation guard band
ELECTRICAL CHARACTERISTICS PARAMETER TEST CONDITION SYMBOL MIN. TYP. MAX. UNIT INPUT
IF = 5 mA VF 1.6 1.75 V Forward voltage IF = 5 mA VF 1.8 V Input current hysteresis VCC = 5 V, IHYS = IFon - IFoff IHYS 0.1 mA Reverse current VR = 3 V IR 0.5 10 μA Capacitance VR = 0 V, f = 1 MHz CO 60 pF Thermal resistance RthJA 700 K/W
OUTPUT
Logic low output voltage IOL = 6.4 mA VOL 0.5 V Logic high output voltage I (except SFH6705) OH = 2.6 mA, VOH = VCC - 1.8 V 2.4 V Rev. 1.7, 07-Feb-17
3
