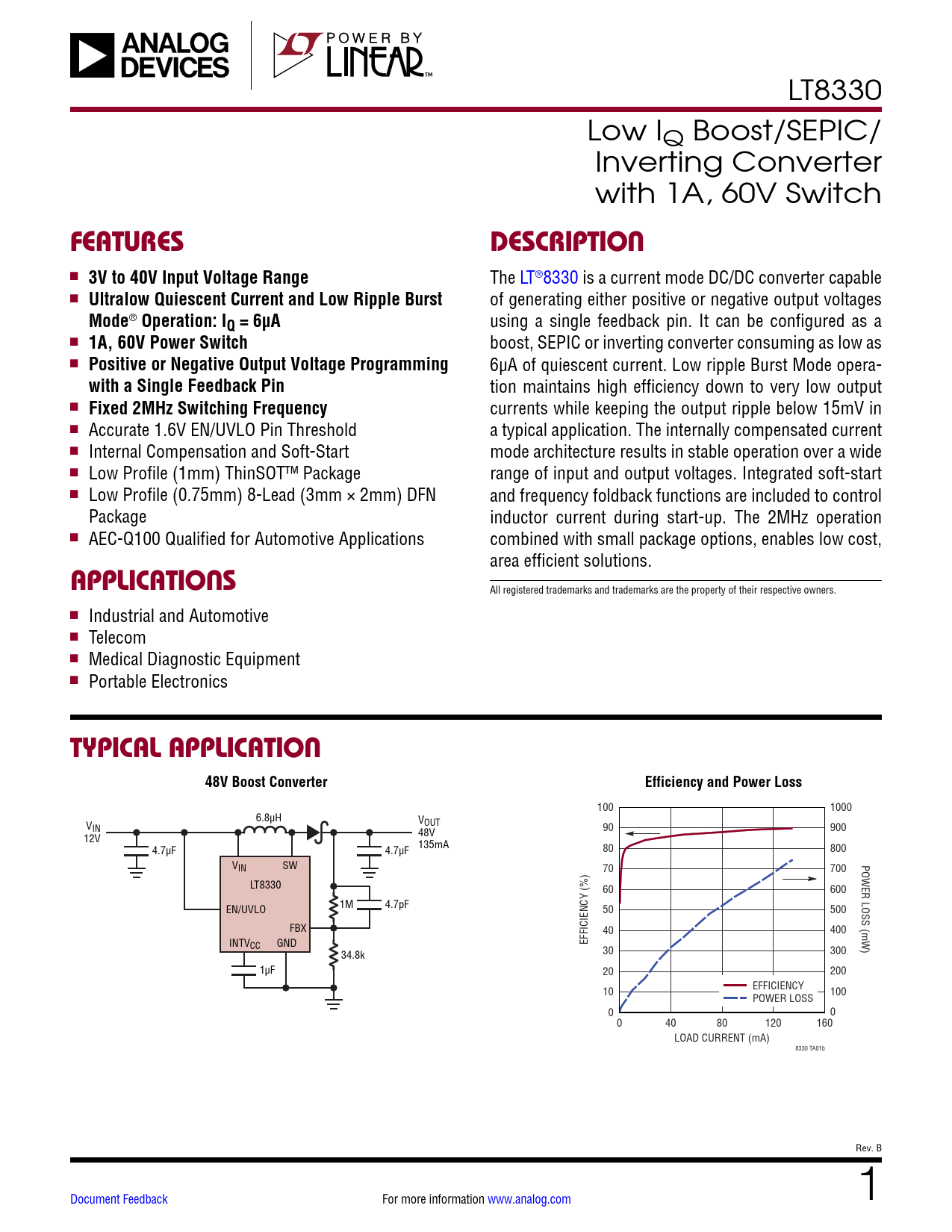

LT8330 Low IQ Boost/SEPIC/ Inverting Converter with 1A, 60V Switch
FEATURES DESCRIPTION
n
3V to 40V Input Voltage Range
The LT®8330 is a current mode DC/DC converter capable n
Ultralow Quiescent Current and Low Ripple Burst
of generating either positive or negative output voltages
Mode
®
Operation: IQ = 6µA
using a single feedback pin. It can be configured as a n
1A, 60V Power Switch
boost, SEPIC or inverting converter consuming as low as n
Positive or Negative Output Voltage Programming
6µA of quiescent current. Low ripple Burst Mode opera-
with a Single Feedback Pin
tion maintains high efficiency down to very low output n
Fixed 2MHz Switching Frequency
currents while keeping the output ripple below 15mV in n Accurate 1.6V EN/UVLO Pin Threshold a typical application. The internally compensated current n Internal Compensation and Soft-Start mode architecture results in stable operation over a wide n Low Profile (1mm) ThinSOT™ Package range of input and output voltages. Integrated soft-start n Low Profile (0.75mm) 8-Lead (3mm × 2mm) DFN and frequency foldback functions are included to control Package inductor current during start-up. The 2MHz operation n AEC-Q100 Qualified for Automotive Applications combined with small package options, enables low cost, area efficient solutions.
APPLICATIONS
All registered trademarks and trademarks are the property of their respective owners. n Industrial and Automotive n Telecom n Medical Diagnostic Equipment n Portable Electronics
TYPICAL APPLICATION 48V Boost Converter Efficiency and Power Loss
