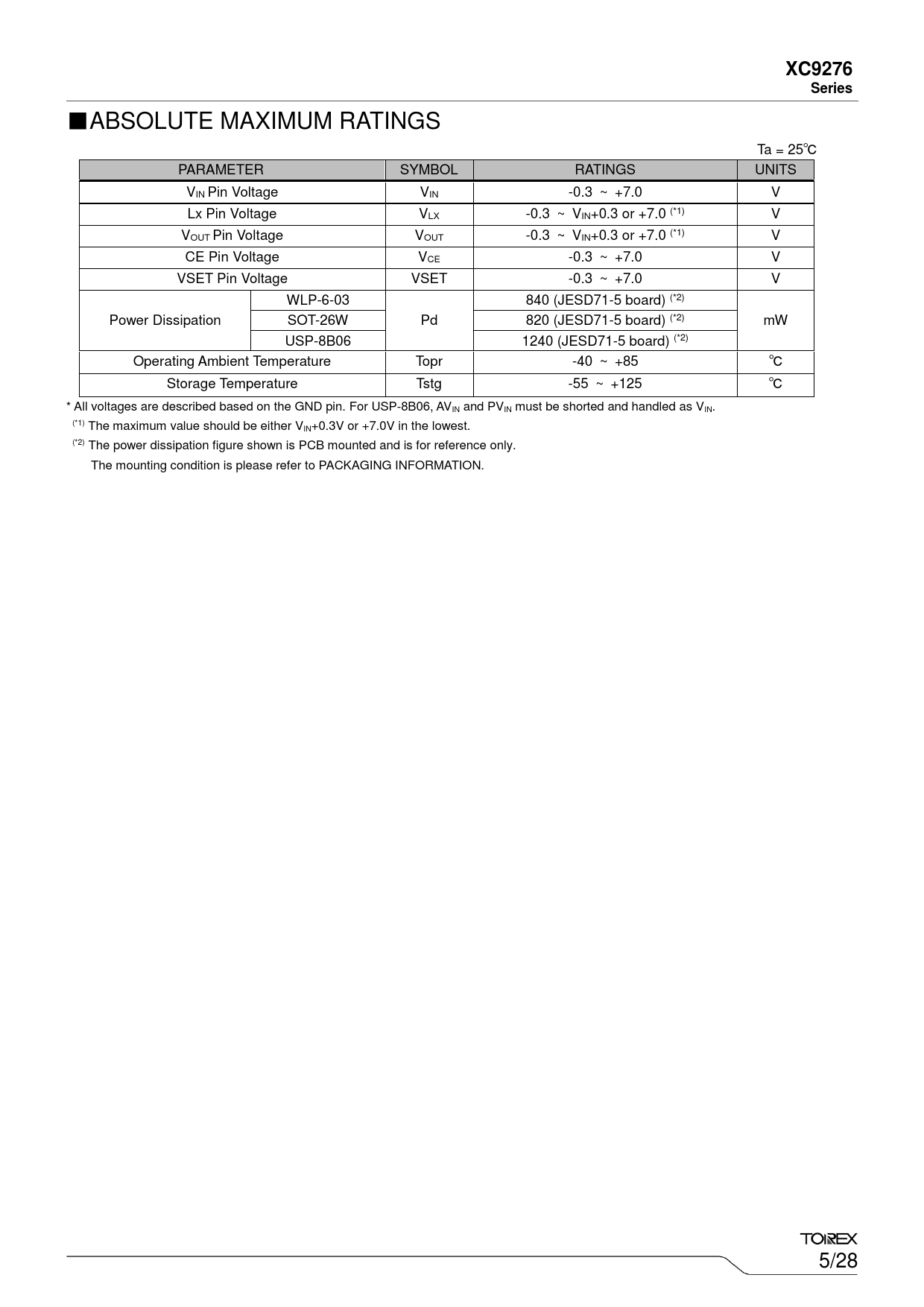

XC9140 (Design Target) XC9276Series ■ABSOLUTE MAXIMUM RATINGS Ta = 25℃ PARAMETER SYMBOL RATINGS UNITS VIN Pin Voltage VIN -0.3 ~ +7.0 V Lx Pin Voltage VLX -0.3 ~ VIN+0.3 or +7.0 (*1) V VOUT Pin Voltage VOUT -0.3 ~ VIN+0.3 or +7.0 (*1) V CE Pin Voltage VCE -0.3 ~ +7.0 V VSET Pin Voltage VSET -0.3 ~ +7.0 V WLP-6-03 840 (JESD71-5 board) (*2) Power Dissipation SOT-26W Pd 820 (JESD71-5 board) (*2) mW USP-8B06 1240 (JESD71-5 board) (*2) Operating Ambient Temperature Topr -40 ~ +85 ℃ Storage Temperature Tstg -55 ~ +125 ℃ * All voltages are described based on the GND pin. For USP-8B06, AVIN and PVIN must be shorted and handled as VIN. (*1) The maximum value should be either VIN+0.3V or +7.0V in the lowest. (*2) The power dissipation figure shown is PCB mounted and is for reference only. The mounting condition is please refer to PACKAGING INFORMATION. 5/28 Document Outline GRM188R61A106ME69 LMK107BBJ106MALT GRM188R61A106ME69 GRM188R60J226MEA0 GRM188R61A226ME15 GRM188R60J476ME15 LMK107BBJ106MALT JMK107BBJ226MA C1608X5R0J226M080AC
