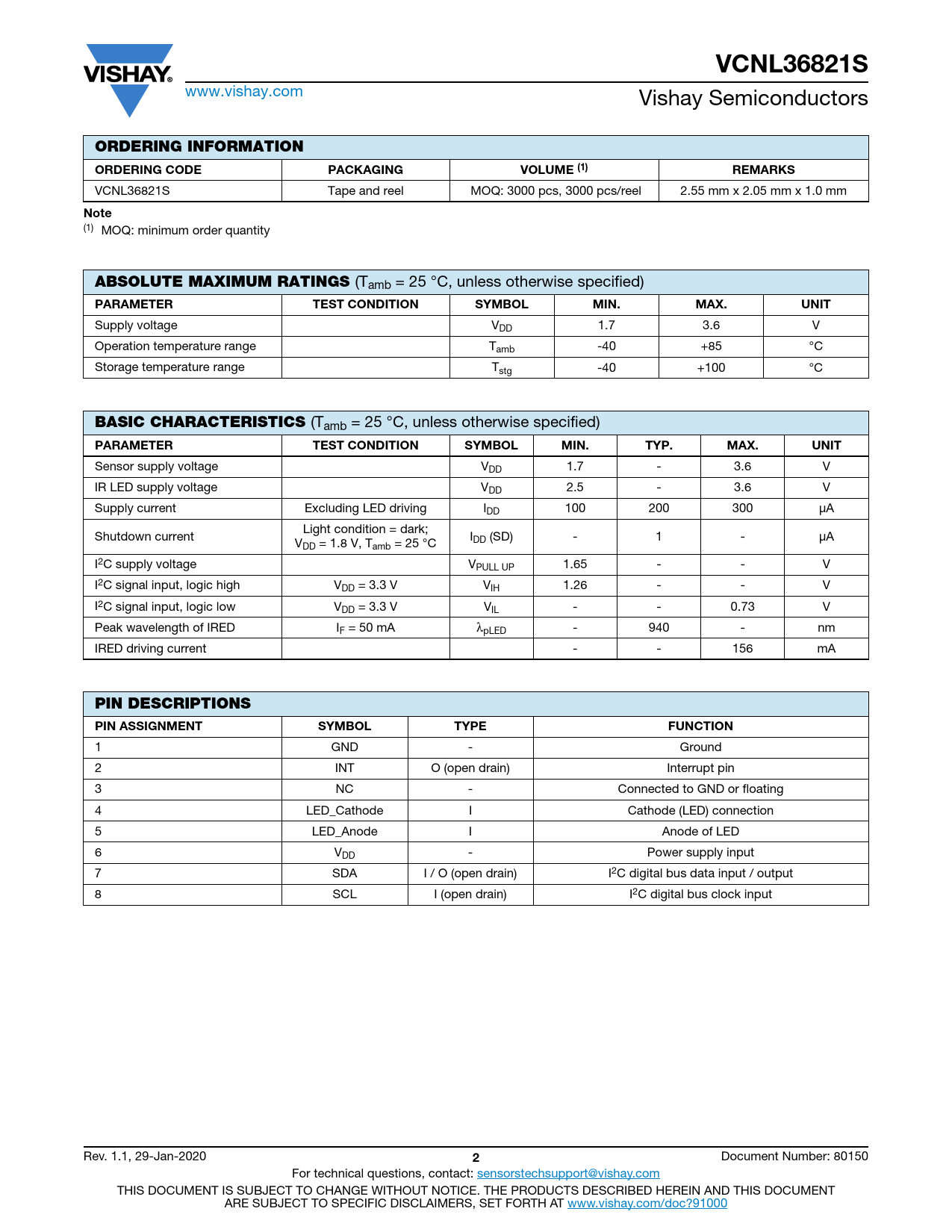

VCNL36821S
www.vishay.com Vishay Semiconductors
ORDERING INFORMATION ORDERING CODE PACKAGING VOLUME (1) REMARKS
VCNL36821S Tape and reel MOQ: 3000 pcs, 3000 pcs/reel 2.55 mm x 2.05 mm x 1.0 mm
Note
(1) MOQ: minimum order quantity
ABSOLUTE MAXIMUM RATINGS
(Tamb = 25 °C, unless otherwise specified)
PARAMETER TEST CONDITION SYMBOL MIN. MAX. UNIT
Supply voltage VDD 1.7 3.6 V Operation temperature range Tamb -40 +85 °C Storage temperature range Tstg -40 +100 °C
BASIC CHARACTERISTICS
(Tamb = 25 °C, unless otherwise specified)
PARAMETER TEST CONDITION SYMBOL MIN. TYP. MAX. UNIT
Sensor supply voltage VDD 1.7 - 3.6 V IR LED supply voltage VDD 2.5 - 3.6 V Supply current Excluding LED driving IDD 100 200 300 μA Light condition = dark; Shutdown current I V DD (SD) - 1 - μA DD = 1.8 V, Tamb = 25 °C I2C supply voltage VPULL UP 1.65 - - V I2C signal input, logic high VDD = 3.3 V VIH 1.26 - - V I2C signal input, logic low VDD = 3.3 V VIL - - 0.73 V Peak wavelength of IRED IF = 50 mA λpLED - 940 - nm IRED driving current - - 156 mA
PIN DESCRIPTIONS PIN ASSIGNMENT SYMBOL TYPE FUNCTION
1 GND - Ground 2 INT O (open drain) Interrupt pin 3 NC - Connected to GND or floating 4 LED_Cathode I Cathode (LED) connection 5 LED_Anode I Anode of LED 6 VDD - Power supply input 7 SDA I / O (open drain) I2C digital bus data input / output 8 SCL I (open drain) I2C digital bus clock input Rev. 1.1, 29-Jan-2020
