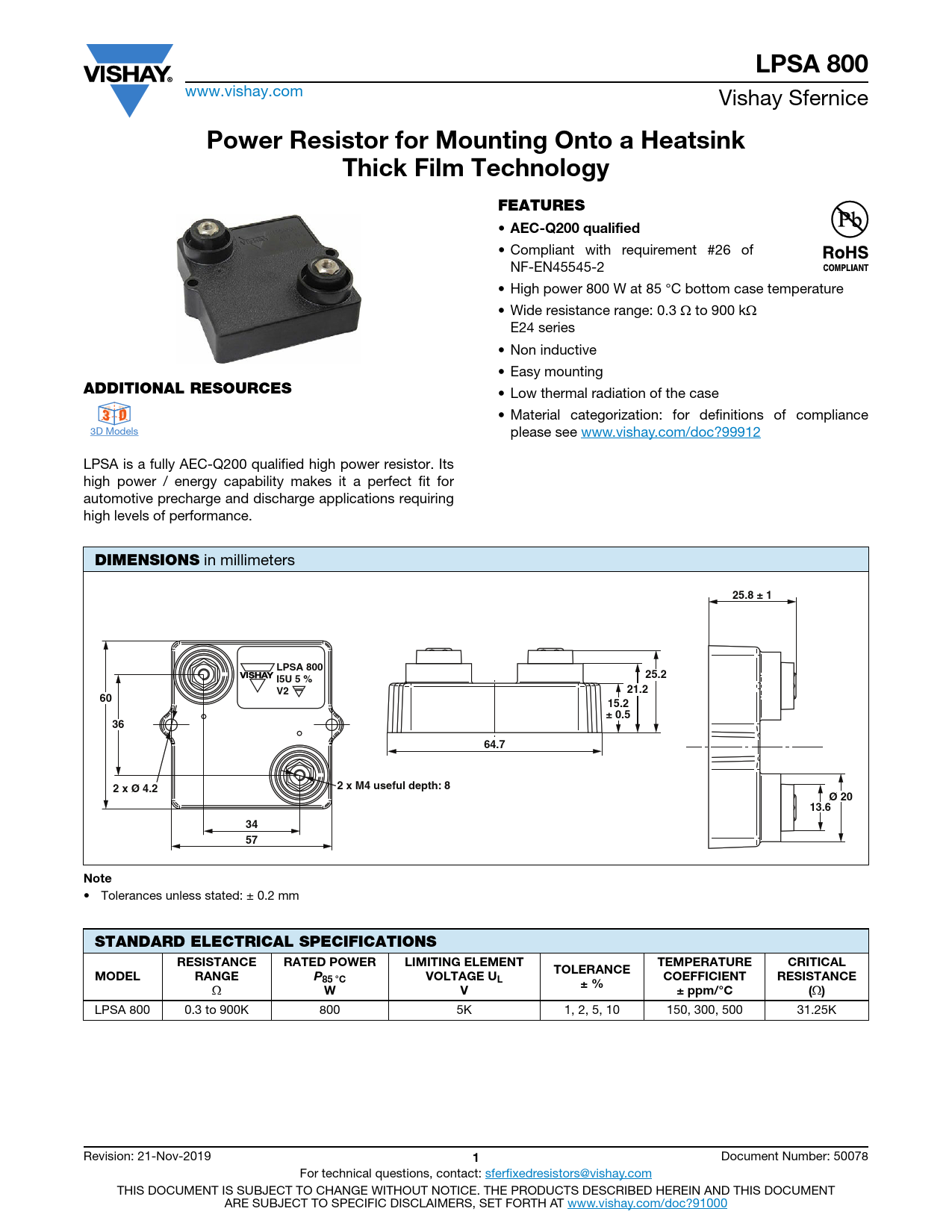

LPSA 800
www.vishay.com Vishay Sfernice
Power Resistor for Mounting Onto a Heatsink Thick Film Technology FEATURES
•
AEC-Q200 qualified
• Compliant with requirement #26 of NF-EN45545-2 • High power 800 W at 85 °C bottom case temperature • Wide resistance range: 0.3 to 900 k E24 series • Non inductive • Easy mounting
ADDITIONAL RESOURCES
• Low thermal radiation of the case
D 3 3
• Material categorization: for definitions of compliance
D
3D Models please see www.vishay.com/doc?99912 LPSA is a fully AEC-Q200 qualified high power resistor. Its high power / energy capability makes it a perfect fit for automotive precharge and discharge applications requiring high levels of performance.
DIMENSIONS
in millimeters
25.8 ± 1 LPSA 800 I5U 5 % 25.2 V2 21.2 60 15.2 ± 0.5 36 64.7 2 x M4 useful depth: 8 2 x Ø 4.2 Ø 20 13.6 34 57 Note
• Tolerances unless stated: ± 0.2 mm
STANDARD ELECTRICAL SPECIFICATIONS RESISTANCE RATED POWER LIMITING ELEMENT TEMPERATURE CRITICAL TOLERANCE MODEL RANGE P 85 °C VOLTAGE UL COEFFICIENT RESISTANCE ± % W V ± ppm/°C ( )
LPSA 800 0.3 to 900K 800 5K 1, 2, 5, 10 150, 300, 500 31.25K Revision: 21-Nov-2019
