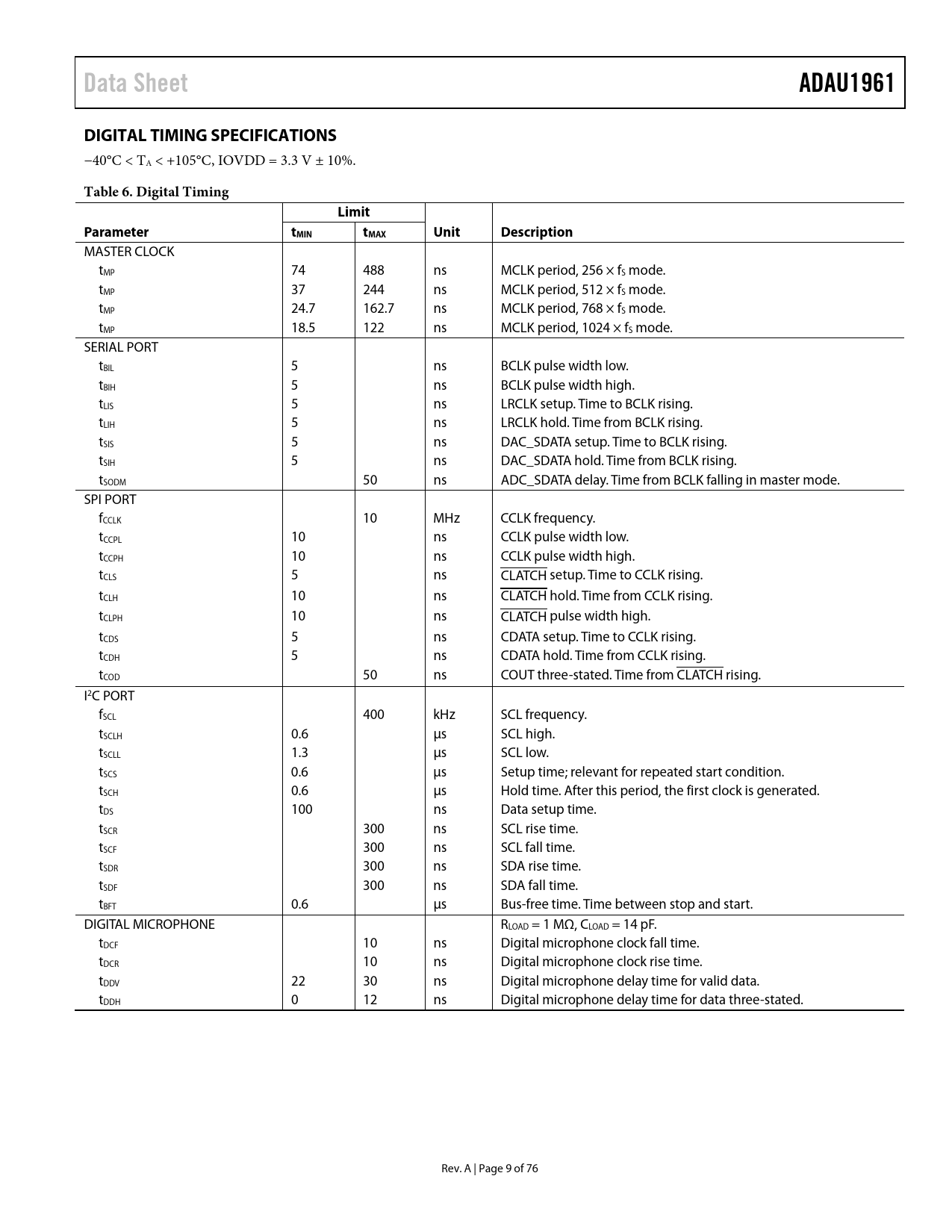

Data Sheet ADAU1961 DIGITAL TIMING SPECIFICATIONS
−40°C < TA < +105°C, IOVDD = 3.3 V ± 10%.
Table 6. Digital Timing Limit Parameter tMIN tMAX Unit Description
MASTER CLOCK tMP 74 488 ns MCLK period, 256 × fS mode. tMP 37 244 ns MCLK period, 512 × fS mode. tMP 24.7 162.7 ns MCLK period, 768 × fS mode. tMP 18.5 122 ns MCLK period, 1024 × fS mode. SERIAL PORT tBIL 5 ns BCLK pulse width low. tBIH 5 ns BCLK pulse width high. tLIS 5 ns LRCLK setup. Time to BCLK rising. tLIH 5 ns LRCLK hold. Time from BCLK rising. tSIS 5 ns DAC_SDATA setup. Time to BCLK rising. tSIH 5 ns DAC_SDATA hold. Time from BCLK rising. tSODM 50 ns ADC_SDATA delay. Time from BCLK falling in master mode. SPI PORT fCCLK 10 MHz CCLK frequency. tCCPL 10 ns CCLK pulse width low. tCCPH 10 ns CCLK pulse width high. tCLS 5 ns CLATCH setup. Time to CCLK rising. tCLH 10 ns CLATCH hold. Time from CCLK rising. tCLPH 10 ns CLATCH pulse width high. tCDS 5 ns CDATA setup. Time to CCLK rising. tCDH 5 ns CDATA hold. Time from CCLK rising. tCOD 50 ns COUT three-stated. Time from CLATCH rising. I2C PORT fSCL 400 kHz SCL frequency. tSCLH 0.6 µs SCL high. tSCLL 1.3 µs SCL low. tSCS 0.6 µs Setup time; relevant for repeated start condition. tSCH 0.6 µs Hold time. After this period, the first clock is generated. tDS 100 ns Data setup time. tSCR 300 ns SCL rise time. tSCF 300 ns SCL fall time. tSDR 300 ns SDA rise time. tSDF 300 ns SDA fall time. tBFT 0.6 µs Bus-free time. Time between stop and start. DIGITAL MICROPHONE RLOAD = 1 MΩ, CLOAD = 14 pF. tDCF 10 ns Digital microphone clock fall time. tDCR 10 ns Digital microphone clock rise time. tDDV 22 30 ns Digital microphone delay time for valid data. tDDH 0 12 ns Digital microphone delay time for data three-stated. Rev. A | Page 9 of 76 Document Outline Features Applications General Description Functional Block Diagram Revision History Specifications Analog Performance Specifications, TA = 25 C Analog Performance Specifications, −40 C < TA < +105 C Power Supply Specifications Digital Filters Digital Input/Output Specifications Digital Timing Specifications Digital Timing Diagrams Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics System Block Diagrams Theory of Operation Startup, Initialization, and Power Power-Up Sequence Power Reduction Modes Digital Power Supply Input/Output Power Supply Clock Generation and Management Case 1: PLL Is Bypassed Case 2: PLL Is Used PLL Lock Acquisition Clocking and Sampling Rates Core Clock Sampling Rates PLL Integer Mode Fractional Mode Record Signal Path Input Signal Paths Analog Microphone Inputs Analog Line Inputs Digital Microphone Input Microphone Bias Analog-to-Digital Converters ADC Full-Scale Level Digital ADC Volume Control High-Pass Filter Automatic Level Control (ALC) ALC Parameters Noise Gate Function Playback Signal Path Output Signal Paths Routing Flexibility Headphone Output Capless Headphone Configuration Headphone Output Power-Up/Power-Down Sequencing Ground-Centered Headphone Configuration Jack Detection Pop-and-Click Suppression Line Outputs Control Ports Burst Mode Writing and Reading I2C Port Addressing I2C Read and Write Operations SPI Port Chip Address R/W Subaddress Data Bytes Serial Data Input/Output Ports Applications Information Power Supply Bypass Capacitors GSM Noise Filter Grounding Exposed Pad PCB Design Control Registers Control Register Details R0: Clock Control, 16,384 (0x4000) R1: PLL Control, 16,386 (0x4002) R2: Digital Microphone/Jack Detection Control, 16,392 (0x4008) R4: Record Mixer Left (Mixer 1) Control 0, 16,394 (0x400A) R5: Record Mixer Left (Mixer 1) Control 1, 16,395 (0x400B) R6: Record Mixer Right (Mixer 2) Control 0, 16,396 (0x400C) R7: Record Mixer Right (Mixer 2) Control 1, 16,397 (0x400D) R8: Left Differential Input Volume Control, 16,398 (0x400E) R9: Right Differential Input Volume Control, 16,399 (0x400F) R10: Record Microphone Bias Control, 16,400 (0x4010) R11: ALC Control 0, 16,401 (0x4011) R12: ALC Control 1, 16,402 (0x4012) R13: ALC Control 2, 16,403 (0x4013) R14: ALC Control 3, 16,404 (0x4014) R15: Serial Port Control 0, 16,405 (0x4015) R16: Serial Port Control 1, 16,406 (0x4016) R17: Converter Control 0, 16,407 (0x4017) R18: Converter Control 1, 16,408 (0x4018) R19: ADC Control, 16,409 (0x4019) R20: Left Input Digital Volume, 16,410 (0x401A) R21: Right Input Digital Volume, 16,411 (0x401B) R22: Playback Mixer Left (Mixer 3) Control 0, 16,412 (0x401C) R23: Playback Mixer Left (Mixer 3) Control 1, 16,413 (0x401D) R24: Playback Mixer Right (Mixer 4) Control 0, 16,414 (0x401E) R25: Playback Mixer Right (Mixer 4) Control 1, 16,415 (0x401F) R26: Playback L/R Mixer Left (Mixer 5) Line Output Control, 16,416 (0x4020) R27: Playback L/R Mixer Right (Mixer 6) Line Output Control, 16,417 (0x4021) R28: Playback L/R Mixer Mono Output (Mixer 7) Control, 16,418 (0x4022) R29: Playback Headphone Left Volume Control, 16,419 (0x4023) R30: Playback Headphone Right Volume Control, 16,420 (0x4024) R31: Playback Line Output Left Volume Control, 16,421 (0x4025) R32: Playback Line Output Right Volume Control, 16,422 (0x4026) R33: Playback Mono Output Control, 16,423 (0x4027) R34: Playback Pop/Click Suppression, 16,424 (0x4028) R35: Playback Power Management, 16,425 (0x4029) R36: DAC Control 0, 16,426 (0x402A) R37: DAC Control 1, 16,427 (0x402B) R38: DAC Control 2, 16,428 (0x402C) R39: Serial Port Pad Control, 16,429 (0x402D) R40: Control Port Pad Control 0, 16,431 (0x402F) R41: Control Port Pad Control 1, 16,432 (0x4030) R42: Jack Detect Pin Control, 16,433 (0x4031) R67: Dejitter Control, 16,438 (0x4036) Outline Dimensions Ordering Guide Automotive Products
