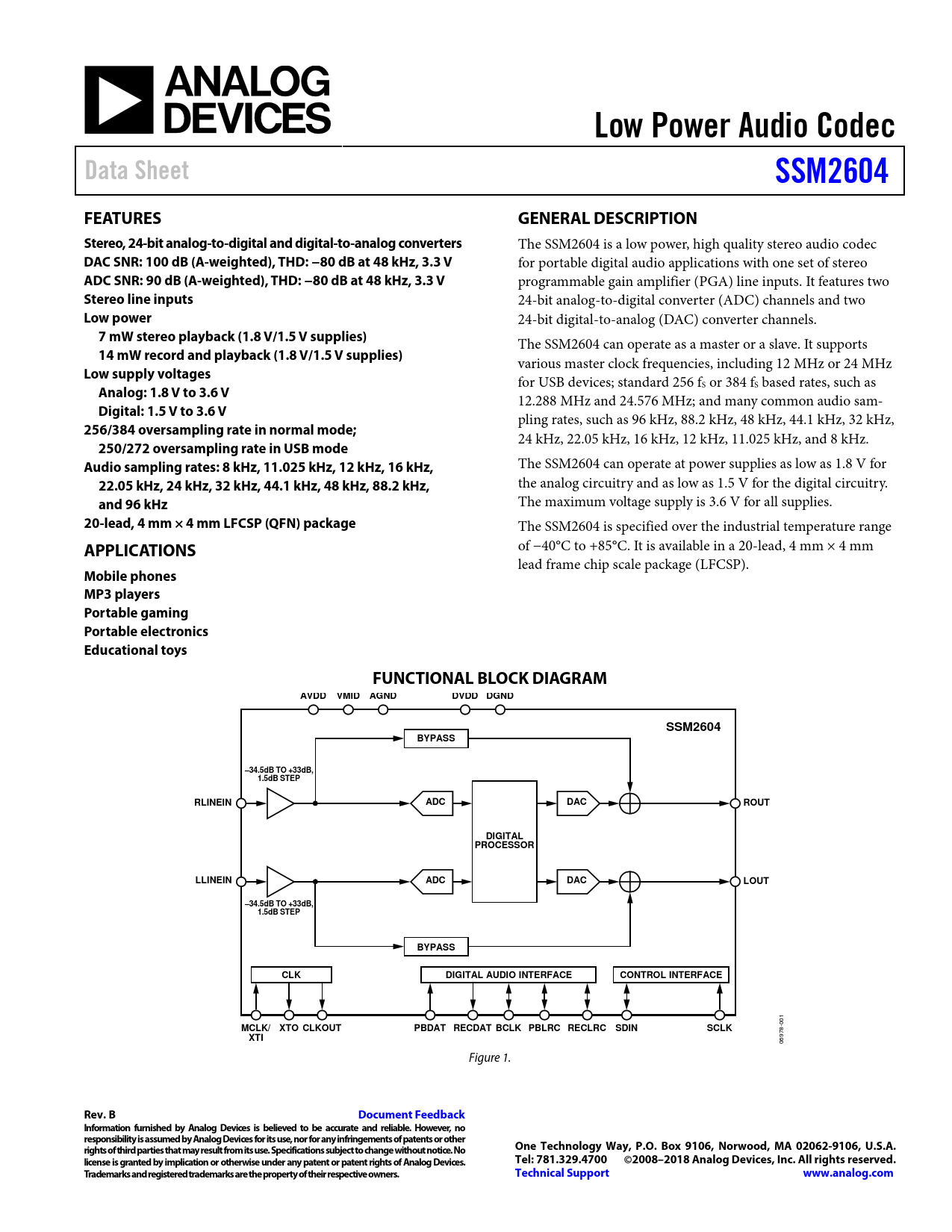

Low Power Audio Codec Data Sheet SSM2604 FEATURES GENERAL DESCRIPTION Stereo, 24-bit analog-to-digital and digital-to-analog converters
The SSM2604 is a low power, high quality stereo audio codec
DAC SNR: 100 dB (A-weighted), THD: −80 dB at 48 kHz, 3.3 V
for portable digital audio applications with one set of stereo
ADC SNR: 90 dB (A-weighted), THD: −80 dB at 48 kHz, 3.3 V
programmable gain amplifier (PGA) line inputs. It features two
Stereo line inputs
24-bit analog-to-digital converter (ADC) channels and two
Low power
24-bit digital-to-analog (DAC) converter channels.
7 mW stereo playback (1.8 V/1.5 V supplies)
The SSM2604 can operate as a master or a slave. It supports
14 mW record and playback (1.8 V/1.5 V supplies)
various master clock frequencies, including 12 MHz or 24 MHz
Low supply voltages
for USB devices; standard 256 f
Analog: 1.8 V to 3.6 V
S or 384 fS based rates, such as 12.288 MHz and 24.576 MHz; and many common audio sam-
Digital: 1.5 V to 3.6 V
pling rates, such as 96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz, 32 kHz,
256/384 oversampling rate in normal mode;
24 kHz, 22.05 kHz, 16 kHz, 12 kHz, 11.025 kHz, and 8 kHz.
250/272 oversampling rate in USB mode Audio sampling rates: 8 kHz, 11.025 kHz, 12 kHz, 16 kHz,
The SSM2604 can operate at power supplies as low as 1.8 V for
22.05 kHz, 24 kHz, 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz,
the analog circuitry and as low as 1.5 V for the digital circuitry.
and 96 kHz
The maximum voltage supply is 3.6 V for all supplies.
20-lead, 4 mm × 4 mm LFCSP (QFN) package
The SSM2604 is specified over the industrial temperature range
APPLICATIONS
of −40°C to +85°C. It is available in a 20-lead, 4 mm × 4 mm lead frame chip scale package (LFCSP).
Mobile phones MP3 players Portable gaming Portable electronics Educational toys FUNCTIONAL BLOCK DIAGRAM AVDD VMID AGND DVDD DGND SSM2604 BYPASS –34.5dB TO +33dB, 1.5dB STEP RLINEIN ADC DAC ROUT DIGITAL PROCESSOR LLINEIN ADC DAC LOUT –34.5dB TO +33dB, 1.5dB STEP BYPASS CLK DIGITAL AUDIO INTERFACE CONTROL INTERFACE
001
MCLK/ XTO CLKOUT PBDAT RECDAT BCLK PBLRC RECLRC SDIN SCLK XTI
06978- Figure 1.
