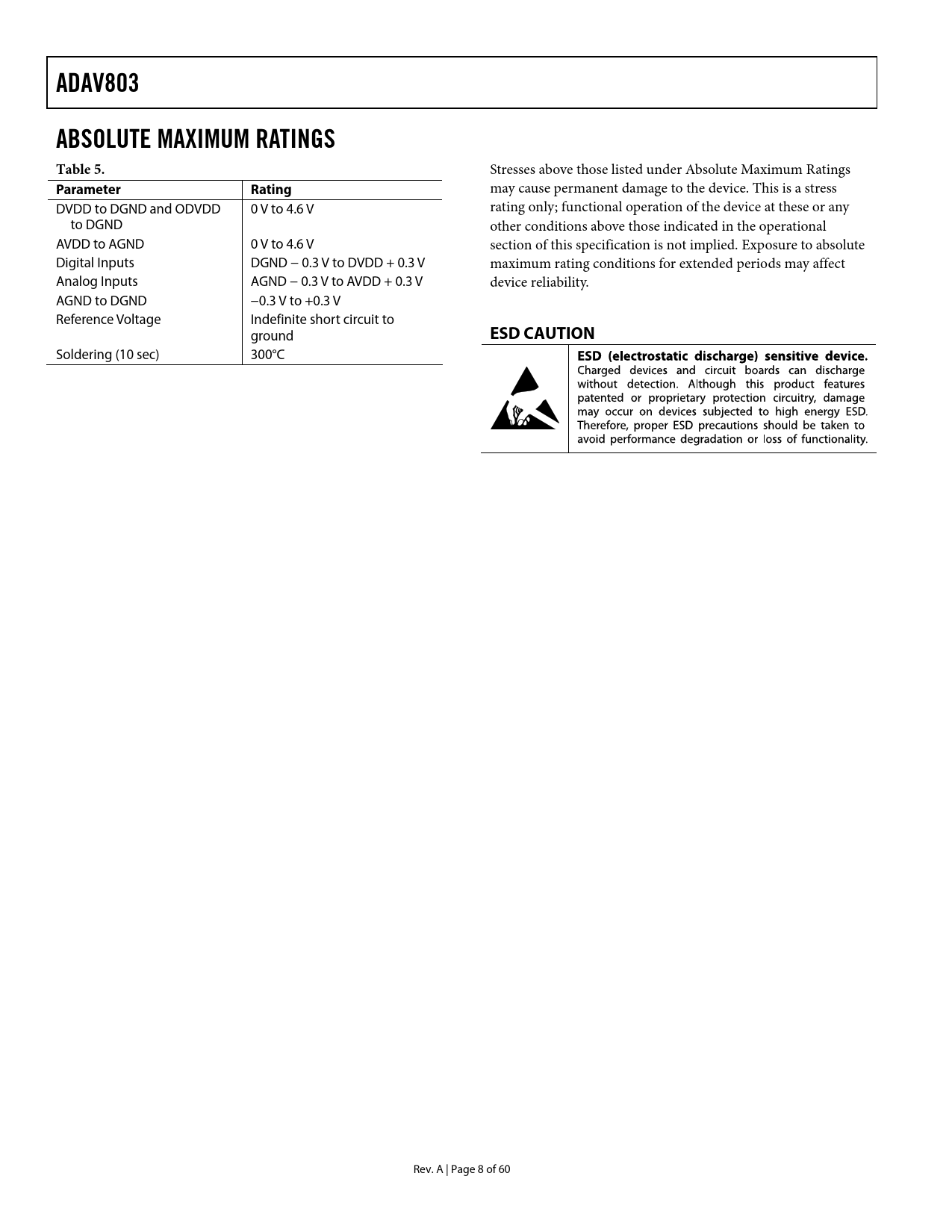

ADAV803 ABSOLUTE MAXIMUM RATINGS Table 5.
Stresses above those listed under Absolute Maximum Ratings
Parameter Rating
may cause permanent damage to the device. This is a stress DVDD to DGND and ODVDD 0 V to 4.6 V rating only; functional operation of the device at these or any to DGND other conditions above those indicated in the operational AVDD to AGND 0 V to 4.6 V section of this specification is not implied. Exposure to absolute Digital Inputs DGND − 0.3 V to DVDD + 0.3 V maximum rating conditions for extended periods may affect Analog Inputs AGND − 0.3 V to AVDD + 0.3 V device reliability. AGND to DGND −0.3 V to +0.3 V Reference Voltage Indefinite short circuit to ground
