Datasheet IR3889 IR OptiMOS IPOL (Infineon) - 10
| Manufacturer | Infineon |
| Description | A single-voltage synchronous Buck regulator |
| Pages / Page | 50 / 10 — OptiMOS™ IPOL. 30 A single-voltage synchronous Buck regulator. Thermal … |
| Revision | 02_04 |
| File Format / Size | PDF / 2.9 Mb |
| Document Language | English |
OptiMOS™ IPOL. 30 A single-voltage synchronous Buck regulator. Thermal Characteristics. 6.1. Description. Symbol. Values
Model Line for this Datasheet
Text Version of Document
link to page 10 link to page 10

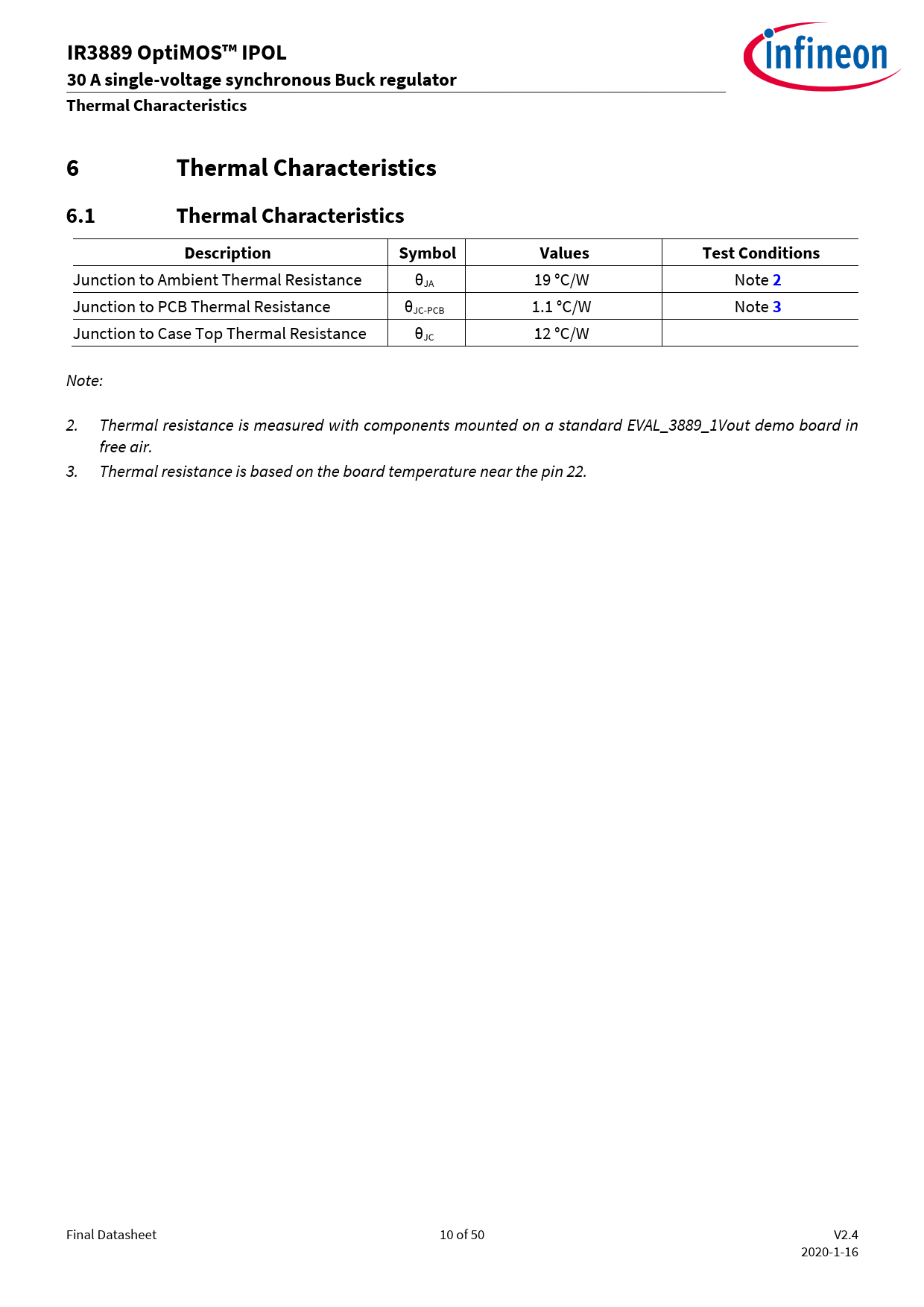

IR OptiMOS™ IPOL 30 A single-voltage synchronous Buck regulator Thermal Characteristics 6 Thermal Characteristics 6.1 Thermal Characteristics Description Symbol Values Test Conditions
Junction to Ambient Thermal Resistance θJA 19 °C/W Note
2
Junction to PCB Thermal Resistance θJC-PCB 1.1 °C/W Note
3
Junction to Case Top Thermal Resistance θJC 12 °C/W Note: 2. Thermal resistance is measured with components mounted on a standard EVAL_3889_1Vout demo board in free air. 3. Thermal resistance is based on the board temperature near the pin 22. Final Datasheet 10 of 50 V2.4 2020-1-16 Document Outline Revision History Trademarks Disclaimer
